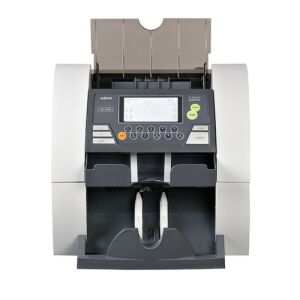

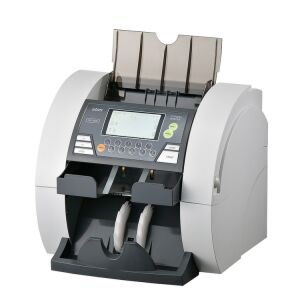

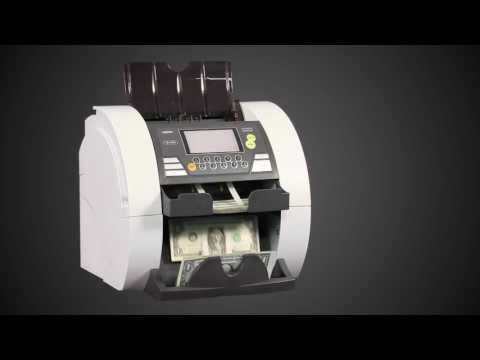

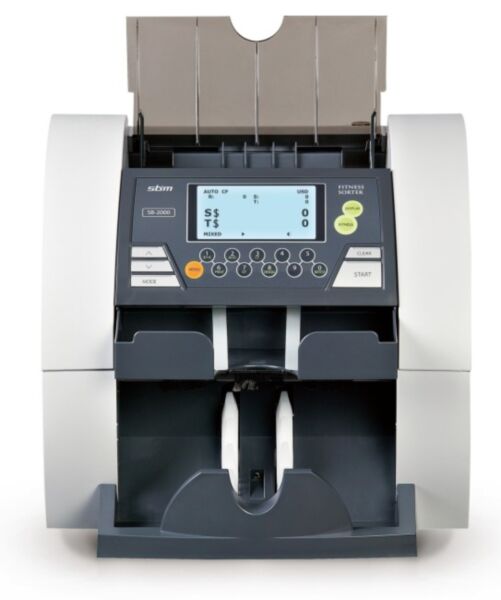

SB-2000 Fitness sorting machine

DESCRIPTION

SB Series are the most intelligent and reliable Banknote Counting Machines which use Image Processing Technology to recognize banknotes and to discriminate between different denominations. With modern design, full graphic LCD and user-friendly interface, SB series provide every operator with more comfortable and efficient working environment. Having a reject pocket, SB series allow operator to perform daily cash-processing job without any interruption. While counting, suspect notes, unrecognized notes and strange notes are automatically diverted to the reject pocket assuring continuous operation.

FEATURE

1) Full fitness sorting : Detection of taped, soil, tear, missing corner, Hole, dog ears, ink wear, etc.
2) 4.2" Large Graphic LCD Display : 4.2 inch clearly visible large Graphic LCD Display
3) Various Operation Modes : Mixed / Single / Face / Orient / Count /Fitness
4) Enhanced Counterfeit Detection : Magnetic sensor, UV sensor and IR sensor
5) Multi-Currencies Capability
6) Easy Upgrade : Using USB memory stick
7) Hotkey for Fitness mode : Easy to get in Fitness mode by pressing "Fitness" key
8) Easy Jam Removal : 2 openings from top and rear side
9) User-Friendly Interface : Easy menu and settings

SPECIFICATION

1) Dimension: 312(W) X 321(D) X 289(H) mm
2) Weight: Approx.16 kg
3) Hopper Capacity: 300 notes
4) Stacker Capacity: Max.200 notes
5) Reject Capacity: Max.100 notes
6) Counting Speed: 800 / 1000 / 1200 NPM
7) Fitness Speed: Approx.700 NPM
8) Interface: 2 RS232C Port, 2 USB
9) Power Supply: 100-240V~, 50~60Hz
