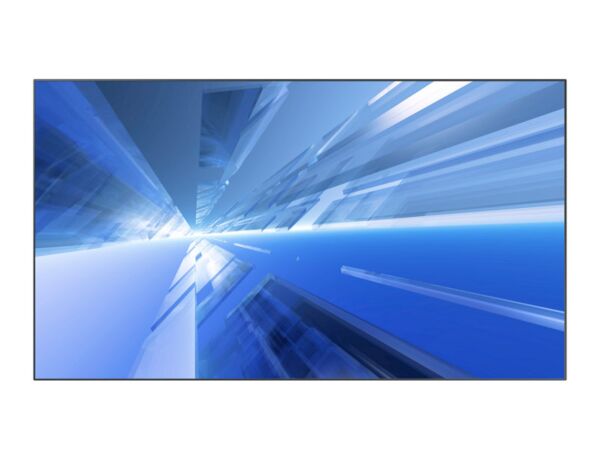

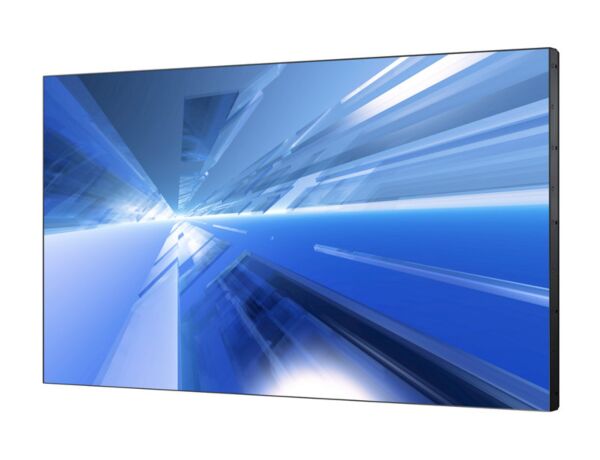

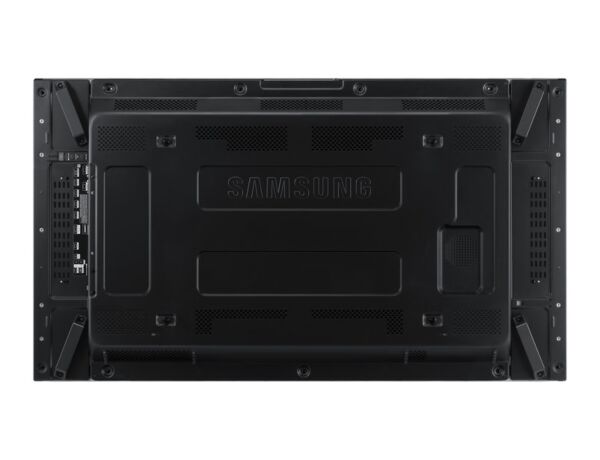

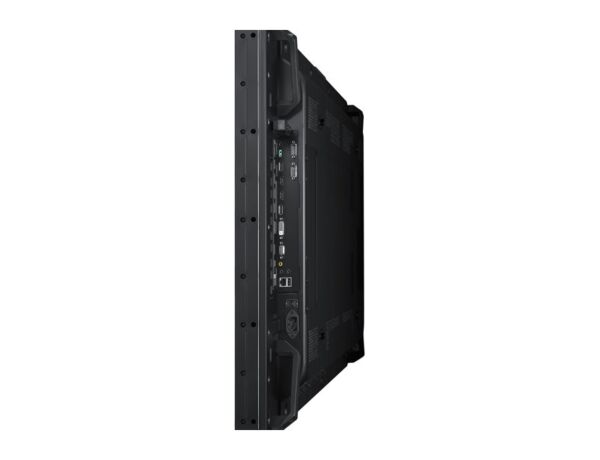

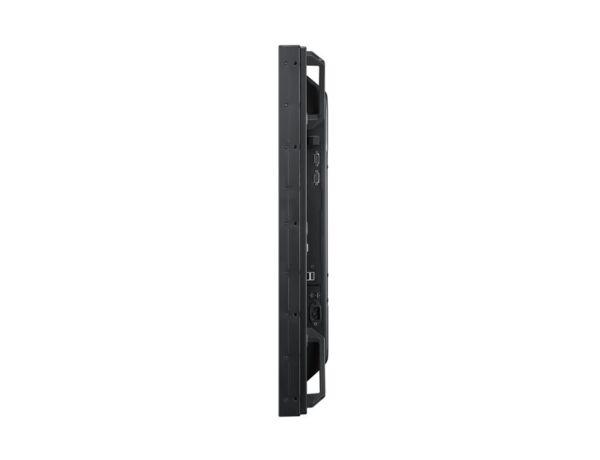

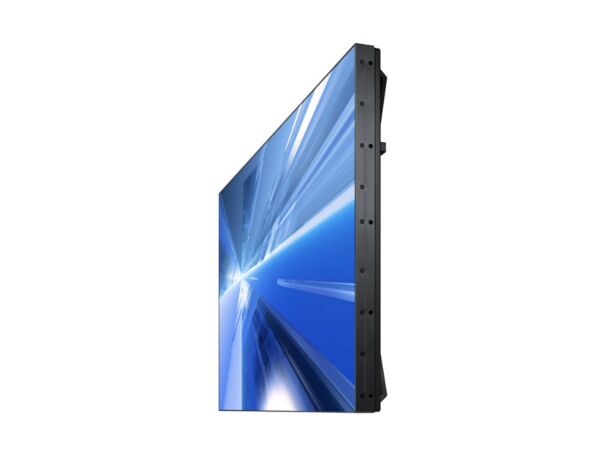

Samsung Video Wall Dynamic LED Display UDC Series 55” LH55UDCPLBB/UE
- SKU: LH55UDCPLBB/UE
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW Amaze your viewers with accurate colour across multiple displays Deliver your messages in consistently accurate colour across multiple displays with Samsung UDC Series displays. The displays undergo a meticulous factory colour calibration process, ensuring accurate colour without image distortion without the need for... See More
OVERVIEW
Amaze your viewers with accurate colour across multiple displays
Deliver your messages in consistently accurate colour across multiple displays with Samsung UDC Series displays. The displays undergo a meticulous factory colour calibration process, ensuring accurate colour without image distortion without the need for manual calibration. The improved factory colour-tuning for white balancing and colour difference compensation ensure that the displays present image in uniform colour with colour temperature matching. For users who want to fine-tune the colours, Samsung Advanced Colour Management offers more detailed management. Colour vibrancy can be calibrated automatically or manually. Colour values can be shared between multiple displays, ensuring outstanding intensity across all video wall screens that can impress the audience. Combined with the anti-glare panel that reduces light scatter to make messages more readable, UDC Series displays can effectively deliver your content in the vibrant, accurate colour to impress your audience.
Create, display, and manage with ease using Samsung Smart Signage Platform
The built-in Samsung Smart Signage Platform (SSSP) solution eliminates the need to purchase an additional PC for each display in a video wall. SSSP supports the MagicInfo VideoWall application that can play content created in the VideoWall authoring programme or console applications. The embedded MagicInfo™ VideoWall S Player enables the easy display of video walls up to 4 x 4 without the need for additional PCs, video wall player software, or expensive video wall processor.
Minimise viewing distractions with super narrow bezels
Heighten the impact of visual product and messages with UDC Series displays’ super narrow bezels. The thin bezels as narrow as 5.5mm from bezel to bezel help create a near-seamless digital canvas, providing audiences a superior viewing experience with minimal distractions. The sleek, stylish display can fit in naturally in the environment with its unobtrusive design.
Deliver your message in stunning picture quality
Deliver your message with dynamic imagery that differentiates your company and captures attention. Direct LED (d-LED) BLU (backlight unit) technology combined with the new backlight dimming solution gives UDC displays broader colour definition and richer black hues while consuming less power than conventional cold cathode fluorescent lamp (CCFL) LFDs. With improved contrast ratios and Full High Definition (FHD) resolution, the displays generate high picture quality and bright images that audience can immerse in.

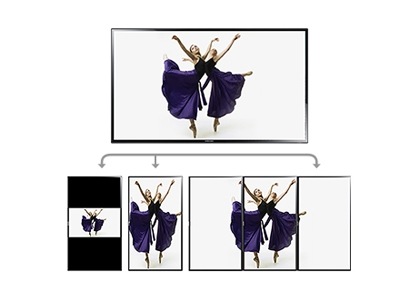

Display content optimally with easy image rotation
Whether using a single display or a video wall, you can create content in portrait or landscape mode—and then rotate it. Samsung displays include a pivot and Image Rotation function that display content vertically or horizontally, without ratio distortion. Conveniently rotate your content with three display options: original ratio on a single screen, full ratio on a single screen, or full ratio on a video wall.
Present varied content with an optional PC module
Play content from a variety of sources with the optional Setback Box-C (SBB-C). Added to a UDC Series display, the SBB-C shows specific business content and provides powerful PC functions to deliver on-target messages. To change the content displayed, you simply replace the SBB-C in individual displays or a control display. The control display then transmits the message to the other displays in the video wall. If you opt for an SBB-C in each display, you gain incredible flexibility in delivering multiple messages over your video wall.
-
Connect multiple displays without picture quality loss through DisplayPort 1.2 support
Join up to 100 displays without losing picture quality with the DisplayPort® (DP) 1.2 multistream support. By using DP 1.2, businesses can display content in ultra high definition (UHD) of 3,840 x 2,160 in 2 x 2 video walls without additional equipment. The High-bandwidth Digital Content Protection (HDCP) daisy-chain capability offered on UDC Series displays helps reduce the cost of deploying multiple displays. With the HDCP support, LiveTV®, Blu-ray Disc™ and other HDCP content can be presented without an HDCP distributor.
-
Magic Clone
Easily apply consistent settings to displays in multiple locations with Samsung Magic Clone, without the cumbersome efforts to set up displays one by one. Programme one display for settings such as volume, brightness and more. After the first display has been updated, save the settings onto a USB or external drive. Then simply plug the USB or external drive into new displays to copy options from one display to others.
SPECIFICATIONS
-
Display
- H-Scanning Frequency 30kHz ~ 81kHz
- Maximum Pixel Frequency 148.5MHz
- V-Scanning Frequency 48Hz ~ 75Hz
-
Panel
- Diagonal Size 55"
- Type D-LED DID
- Resolution 1920 x 1080
- Pixel Pitch (mm)0.63mm (H) x 0.63mm (V)
- Active Display Area 1,209.6 x 680.4mm
- Brightness 700 cd/m²
- Contrast Ratio (Dynamic) 3,500 : 01 : 00
- Viewing Angle (Horizontal/Vertical)178° / 178°
- Response Time (G-to-G) 8ms
- Display Color 8bit - 16.7M
- Color Gamut 69%
