Samsung SyncMaster UD55A Video Wall UDA Series 55” LH55CPPLBB/EN

  • SKU: LH55CPPLBB/EN

Actual Stock Can Be Confirmed After Placing the Order.

OVERVIEW Configure Up To 100 Displays Ensure your customers see the best across multi screens with the UD Series. Digital loop out produces a single image without any loss of quality, and there is no need for a separate video signal distributor. It's easy... See More

Whatsapp Us
TELEPHONE (+971) 454 65041
WHATSAPP (+971) 454 65041
FREE SHIPPING All orders over AED1999/-

OVERVIEW

Configure Up To 100 Displays

Ensure your customers see the best across multi screens with the UD Series. Digital loop out produces a single image without any loss of quality, and there is no need for a separate video signal distributor. It's easy to install and the most cost-effective way to connect multiple displays - up to an impressive 100 displays at once.

Direct LED Technology

Direct LED Technology

At Samsung, you get cost-effective display solutions with Direct LED technology, which is greener and more eco-friendly than CCFL lamps. The LED are situated behind the panel and the light is emitted from the rear. Its easy to fit and bright colour uniformity means that you can enjoy the same innovative LED technology.

Professional Solution For Video Wall

Professional Solution For Video Wall

Samsung is changing the look, cost, and longevity of video display walls with patented tehcnology. With a super narrow bezel of just 5.5mm, focus will now be on images rather than the frame. The UD Series removes any distraction from your side to provide a greater surface area, which can be useful when creating a video wall.

  • Reliable Digital Signage Display
    Reliable Digital Signage Display

    Our extensive range of LFDs produces astonishing advertising solutions when used to create increasingly popular Digital Information Displays. The displays’ advanced features and widest variety of sizes will ensure reliable performance while making a compelling impact on your audience. The ultra-narrow bezels result in a superior visual experience, and they are specifically designed for both indoor and outdoor use thanks to airtight casing that protects them from dust, humidity and high temperatures.

SPECIFICATIONS

  • Display

    • H-Scanning Frequency 30 kHz ~ 81 kHz
    • Maximum Pixel Frequency 148.5 MHz
    • V-Scanning Frequency 56 Hz ~ 85 Hz

  • Panel

    • Diagonal Size 55"
    • Light Source Type LED
    • Type S-PVA (DID)
    • Resolution 1920 x 1080
    • Pixel Pitch(mm) 0.63 mm (H) x 0.63 mm (V)
    • Active Display Area 1209.6 mm x 680.4 mm
    • Brightness 450 cd/m2 (Max 700 cd/m2)
    • Contrast Ratio (Dynamic)10,000:1
    • Viewing Angle (Horizontal/Vertical)178 / 178
    • Response Time (G-to-G)8 ms
    • Display Color 8 bit - 16.7M
    • Color Gamut 68 %
    • Contrast Ratio 3500 : 1

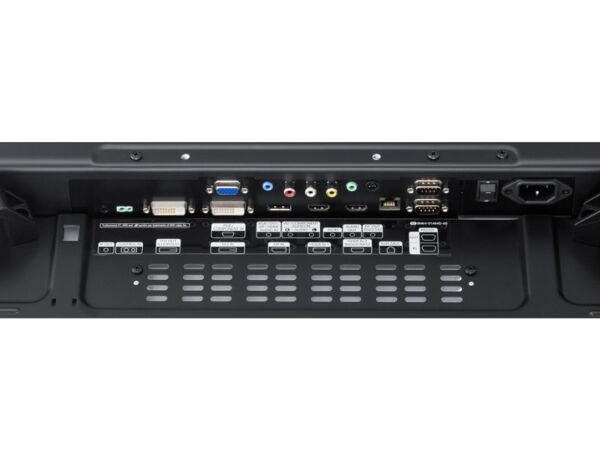

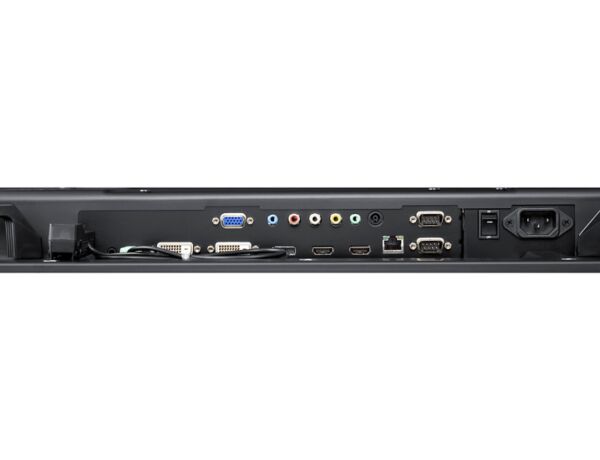

  • Connectivity

    • Input
      RGB
      Analog D-SUB, DVI-D, Display Port
      Video
      CVBS, HDMI1, HDMI2, Component (D-Sub 15 Pin)
      AUDIO
      RCA (L / R) , Stereo Mini Jack
    • Output
      RGB
      DVI-D (Loop-Out)
      Video
      N/A
      AUDIO
      Stereo Mini Jack
      Power Out
      5 V
    • External Control RS232C (In / Out), RJ45
    • External Sensor Attached
    • Network SBB-A

  • Mechanical Specification

    • Dimension
      Set Dimension (WxHxD)
      1215.3 mm x 686.1 mm x 96.0 mm
      Package Dimension (WxHxD)
      1355.0 mm x 820.0 mm x 310.0 mm
    • weight
      Set Weight
      24.0 kg
      Package Weight
      35.0 kg
    • VESA Mount600 x 400 mm
    • Protection Glass N/A
    • Stand Type N/A
    • Media Player Option Type N/A

  • Operation

    • Operating Temperature 0 ℃ ~ 40 ℃
    • Humidity 10 ~ 80 %

  • General Feature

    • Key Super Narrow Bezel
    • Special Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Button Lock, Digital Daisy Chain, Smart Scheduling, Smart F/W Update
    • Touch Screen Module N/A

  • Power

    • Energy Efficiency Class N/A
    • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50 / 60 Hz
    • Power consumption
      Off Mode
      less than 1 W
      On Mode
      227 W (Max) / 206 W (Typ)
      Sleep Mode
      less than 1W
    • TypeInternal

  • Embedded PC

    • CPU-
    • N/B-
    • S/B-
    • GPU-
    • FDM/HDD-
    • Memory-
    • Ethernet-
    • Connectivity
      USB
      -
      Output
      -
      Others
      -
  • Certification

    • EMCFCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
    • EnvironmentENERGY STAR 5.0 (USA)
    • SafetyUL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1

  • Accessory

    • IncludedQuick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries, Panel Cover
    • Optional
      Mount
      WMN-4655MD
      Specialty
      MID-UD55FS
      Stand
      N/A

No datasheet available.
