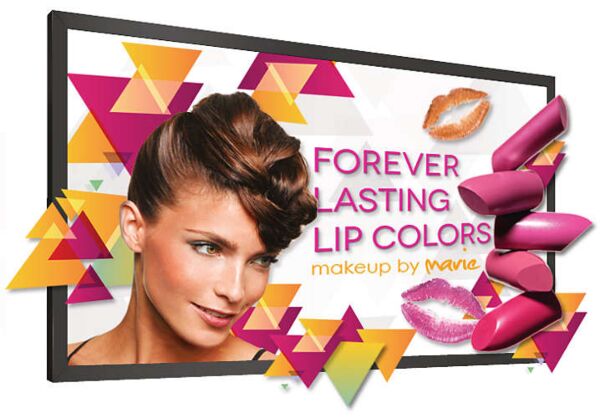

Philips Signage Solutions Glasses free 3D Display 50" BDL5071VS/00
- SKU: BDL5071VS/00
Actual Stock & Price Can Be Confirmed After Placing the Order.
Overview Autostereoscopic 3D Enjoy a stunning 3D experience with no need for special glasses thanks to the autostereoscopic 3D effect. Using lenticular technology, it gives excellent clarity and depth, making your 3D experience even more lifelike and enjoyable. Designed for 24/7 operation Because business... See More
Overview
-
Autostereoscopic 3D
Enjoy a stunning 3D experience with no need for special glasses thanks to the autostereoscopic 3D effect. Using lenticular technology, it gives excellent clarity and depth, making your 3D experience even more lifelike and enjoyable.
-
Designed for 24/7 operation
Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.
-
4K UHD E-LED display, 3840x2160p
Crystal clear ultra high defenition picture quality to give your audience unprecedented levels of realism and viewer enjoyment. Your viewers will be treated to unsurpassed video, with an amazing color fidelity and the sharpest pictures around.
-
28 lenticular views for amazing smooth 3D pictures
With 28 lenticular views, you can "peek" around virtual objects on the 3D display, giving you the most stunning 3D visual effects around.
-
3D & 2D dual mode display
The display can be applied in a broad range of applications since it can be operated in in both 2D and 3D mode. The 4K UHD resolution panel enables great picture quality and true color representation in 2D and 3D mode. The integrated rendering core offers content creators and end-users full control over the quality and depth-effect characteristics of the picture.
-
Adjustable pop-out effects to optimize 3D effect
Immersive out of screen pop-out effects can be adjusted to optimize the 3D effect for any application.
-
Optical bonding process for high contrast and bright colors
Optical bonding refers to a protective glass that is glued in front of a display. A bonded display increases the contrast ratio by reducing the amount of reflected ambient light. Optical bonding improves the durability and increases the ruggedness of the display.
-
3D system solution
The system solution is designed for maximum reuse of content / concepts from the 2D signage industry. The key enabler for this is the flexible 2D-plus-Depth format that allows decoupling of content creation and content visualization. The rendering core integrated in the autostereoscopic 3D displays supports the unique Declipse image format which enables a true look-around 3D effect.
-
3D content visualization
Software tools are provided with the display to play-out 3D content and control the 3D and 2D visualization parameters. The actual 3D content can be created via plug-ins available for popular 3D animation software packages. Existing 2D or stereo content can be converted into 2D-plus-Depth format. The 2D-plus-Depth format is compatible with existing compression tools, as the additional bandwidth of the depth is small.
Specifications

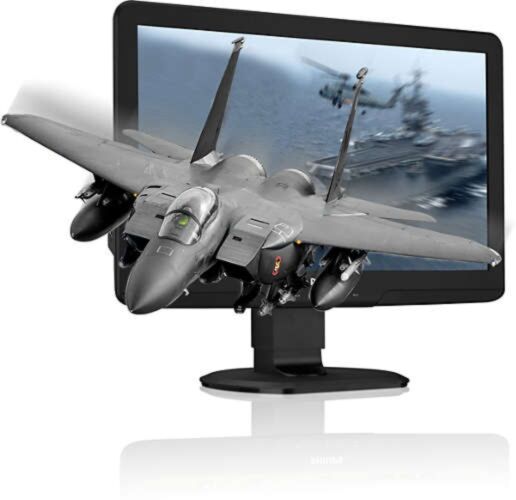

| Model | BDL5071VS/00 | BDL2331VS/00 |
|---|---|---|
| 3D Technology |
|
|
| Aspect ratio |
16:9
|
16:9
|
| Brightness |
400 cd/m²
|
300 cd/m²
|
| Contrast ratio (typical) |
5000:1
|
1000:1
|
| Diagonal screen size (inch) |
50 inch
|
23 inch
|
| Diagonal screen size (metric) |
No
|
58.9 cm
|
| Display colors |
1.07 billion
|
16.7 million colors
|
| Input format |
2D-plus-Depth in 3D mode
|
No
|
| Optimal viewing distance |
Adjustable
|
No
|
| Optimum resolution |
3840 x 2160 @ 30Hz
|
1920 x 1080 @ 60Hz
|
| Panel resolution |
No
|
1920x1080p
|
| Picture enhancement |
No
|
|
| Pixel pitch |
0.2865 x 0.2865 mm
|
0.265 x 0.265 mm
|
| Response time (typical) |
6.5 ms
|
5 ms
|
| Viewing angle (horizontal) |
150 degree
|
150 degree
|
| Viewing angle (vertical) |
150 degree
|
150 degree
|
Connectivity
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| AV input |
DVI-D x1
|
No
|
| AV output |
No
|
Audio (L/R) x1
|
| PC |
No
|
DVI-D x1
|
| USB |
No
|
USB 2.0 x 1
|
Supported Display Resolution
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Computer formats |
3840 x 2160, 30Hz
|
No
|
Convenience
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Energy saving functions |
No
|
|
| Keyboard control |
No
|
|
| Packaging |
Reusable box
|
Reusable box
|
| Picture performance |
No
|
Advanced color control
|
| Placement |
Landscape
|
Landscape
|
| Safety control functions |
No
|
|
| Screen saving functions |
No
|
Pixel shift, Low bright
|
Dimensions
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Bezel thickness |
No
|
1.6 cm / 0.63 inch
|
| Product weight |
45 kg
|
6.5 kg
|
| Product weight (lb) |
No
|
14.3
|
| Set Depth |
100 mm
|
50 mm
|
| Set depth (with stand) |
No
|
171 mm
|
| Set Height |
680 mm
|
360 mm
|
| Set height (with stand) |
No
|
499 mm
|
| Set Width |
1160 mm
|
566 mm
|
| VESA Mount |
400 x 400 mm
|
100 x 100 mm
|
Operating conditions
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| MTBF |
50,000 hour(s)
|
50.000 hour(s)
|
| Relative humidity |
20 ~ 90 %
|
20 - 80 %
|
| Temperature range (operation) |
0 ~ 50 °C
|
0 - 40 °C
|
| Temperature range (storage) |
-20 ~ 60 °C
|
No
|
Power
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Consumption (On mode) |
No
|
Typ. 28.62W
|
| Consumption (Typical) |
130 W
|
No
|
| Mains power |
90 ~ 253 VAC, 50 ~ 60 Hz
|
No
|
| Standby power consumption |
<0.5W
|
0.1W
|
Sound
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Built-in speakers |
No
|
2 x 1.5 W
|
Accessories
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| Included accessories |
|
|
| Optional accessories |
|
3D rendering box
|
Miscellaneous
| BDL5071VS/00 | BDL2331VS/00 | |
|---|---|---|
| On-Screen Display Languages |
No
|
|
| Regulatory approvals |
No
|
|
| Warranty |
1 year warranty
|
Europe/North America: 1 year
|
No datasheet available.
