Philips Signage Solution U-Line 75" Display 75BDL3000U/00

SKU: 75BDL3000U/00

Actual Stock & Price Can Be Confirmed After Placing the Order.

Specifications 75BDL3000U/00 75" BDL8470EU/00 84" Aspect ratio 16:9 16:9 Brightness 410 cd/m² 500 cd/m² Contrast ratio (typical) 1200:1 1400:1 Diagonal screen size (inch) 74.5 inch 84 inch Diagonal screen size (metric) 189.3 cm 213.5 cm Display colors 1073 M 1073 M Dynamic contrast ratio... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specifications

	75BDL3000U/00 75"	BDL8470EU/00 84"
Aspect ratio	16:9	16:9
Brightness	410 cd/m²	500 cd/m²
Contrast ratio (typical)	1200:1	1400:1
Diagonal screen size (inch)	74.5 inch	84 inch
Diagonal screen size (metric)	189.3 cm	213.5 cm
Display colors	1073 M	1073 M
Dynamic contrast ratio	500,000:1	500,000:1
Optimum resolution	3840 x 2160 @ 60Hz	3840 x 2160 @ 60Hz
Panel resolution	3840 x 2160	No
Panel technology	IPS	IPS
Picture enhancement	3/2 - 2/2 motion pull down 3D Combfilter 3D MA deinterlacing Dynamic contrast enhancement Motion compens. deinterlacing Progressive scan	3/2 - 2/2 motion pull down 3D Combfilter 3D MA deinterlacing Dynamic contrast enhancement Motion compens. deinterlacing Progressive scan
Pixel pitch	0.429 x 0.429 mm	0.4845 x 0.4845 mm
Response time (typical)	8 ms	12 ms
Viewing angle (horizontal)	178 degree	178 degree
Viewing angle (vertical)	178 degree	178 degree

Multimedia Applications

	75BDL3000U/00	BDL8470EU/00
USB Playback Audio	AAC AIF AIFF ASF LPCM M3U M4A MP3 MP4 WAV WMA	No
USB Playback Picture	BMP GIF JPEG JPG	No
USB Playback Video	M2TS M4V MK3D MKV MP4 MPEG MPG MTS TS TTS VOB WMV	No

Connectivity

	75BDL3000U/00	BDL8470EU/00
Audio input	3.5 mm jack Audio Left/Right (RCA)	3.5 mm jack
Audio output	3.5mm jack External speaker connector SPDIF	3.5mm jack External speaker connector
External control	RS232C (in/out) 2.5 mm jack RJ45 IR (in/out) 3.5 mm jack	RS232C (in/out) 2.5 mm jack RJ45
Other connections	AC-out OPS USB	USB OPS
Video input	VGA (Analog D-Sub) DisplayPort (1.2) DVI-D HDMI (x3) Component (RCA) Composite (RCA)	VGA (Analog D-Sub) DisplayPort (1.2) DVI-D HDMI (x3) Composite (BNC) Component (BNC)
Video output	DisplayPort	DisplayPort

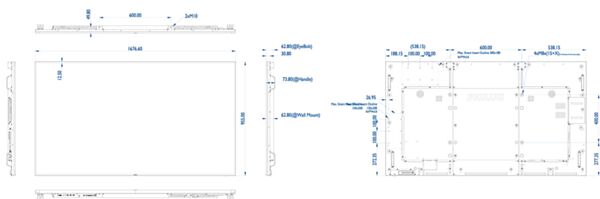

Dimensions

	75BDL3000U/00	BDL8470EU/00
Bezel width	12.50 mm	22.60 (R/L), 25.60 (T/B) mm
Product weight	53.3 kg	70 kg
Product weight (lb)	117.51 lb	154 lb
Set Depth	73.80 mm	77.80 mm
Set Depth (inch)	2.91 inch	No
Set Height	955.00 mm	1102.00 mm
Set Height (inch)	37.60 inch	No
Set Width	1676.60 mm	1910.00 mm
Set Width (inch)	66.01 inch	No
Smart insert height	300 mm	No
Smart insert width	250 mm	No
VESA Mount	600 x 400 mm, M8	600 x 500 mm, M8

Convenience

	75BDL3000U/00	BDL8470EU/00
Ease of installation	Smart Insert	Smart Insert
Energy saving functions	Smart Power	Smart Power
Keyboard control	Hidden Lockable	Hidden Lockable
Network controllable	RS232 HDMI (One Wire) LAN (RJ45)	RS232 HDMI (One Wire) LAN (RJ45)
Other convenience	Carrying handles	Carrying handles
Picture in picture	PIP	No
Picture performance	Advanced color control	No
Placement	Landscape (16/7)	Landscape Portrait
Remote control signal	Lockable	Lockable
Screen saving functions	Pixel Shift, Low Brightness	Pixel Shift, Low Brightness
Signal Loop Through	RS232 DisplayPort IR Loopthrough	RS232 DisplayPort

Power

	75BDL3000U/00	BDL8470EU/00
Consumption (Typical)	197 W	400 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz	100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption	<0.5W	<0.5W

Sound

	75BDL3000U/00	BDL8470EU/00
Built-in speakers	2 x 10W RMS	2 x 10W RMS

Operating conditions

	75BDL3000U/00	BDL8470EU/00
Altitude	0 ~ 3000 m	No
MTBF	50,000 hour(s)	50,000 hour(s)
Relative humidity	20 ~ 80 %	20 ~ 80 %
Temperature range (operation)	5 ~ 40 °C	5 ~ 40 °C
Temperature range (storage)	-20 ~ 60 °C	-20 ~ 60 °C

Accessories

	75BDL3000U/00	BDL8470EU/00
Included accessories	AC Power Cord Batteries for remote control Quick start guide Remote Control User manual on CD-ROM RS232 cable HDMI cable	AC Power Cord Batteries for remote control Quick start guide Remote Control User manual on CD-ROM RS232 cable HDMI cable
Optional accessories	HDBaseT OPS Receiver (CRD25) IR Light Motion Sensor (CRD41)	ColourCalibrationKit (CCK4601) HDBaseT OPS Receiver (CRD25)

Miscellaneous

	75BDL3000U/00	BDL8470EU/00
On-Screen Display Languages	English French German Italian Polish Russian Spanish Turkish Simplified Chinese Traditional Chinese Arabic Japanese Portuguese	English French German Italian Polish Russian Spanish Turkish Simplified Chinese Traditional Chinese Arabic Japanese
Regulatory approvals	CE UL/cUL CCC C-Tick RoHS GOST FCC, Class A	CE UL/cUL CCC C-Tick RoHS GOST FCC, Class A
Warranty	3 year warranty	3 year warranty
