PanasonicDigital SignageSKU TH-75SQ1H

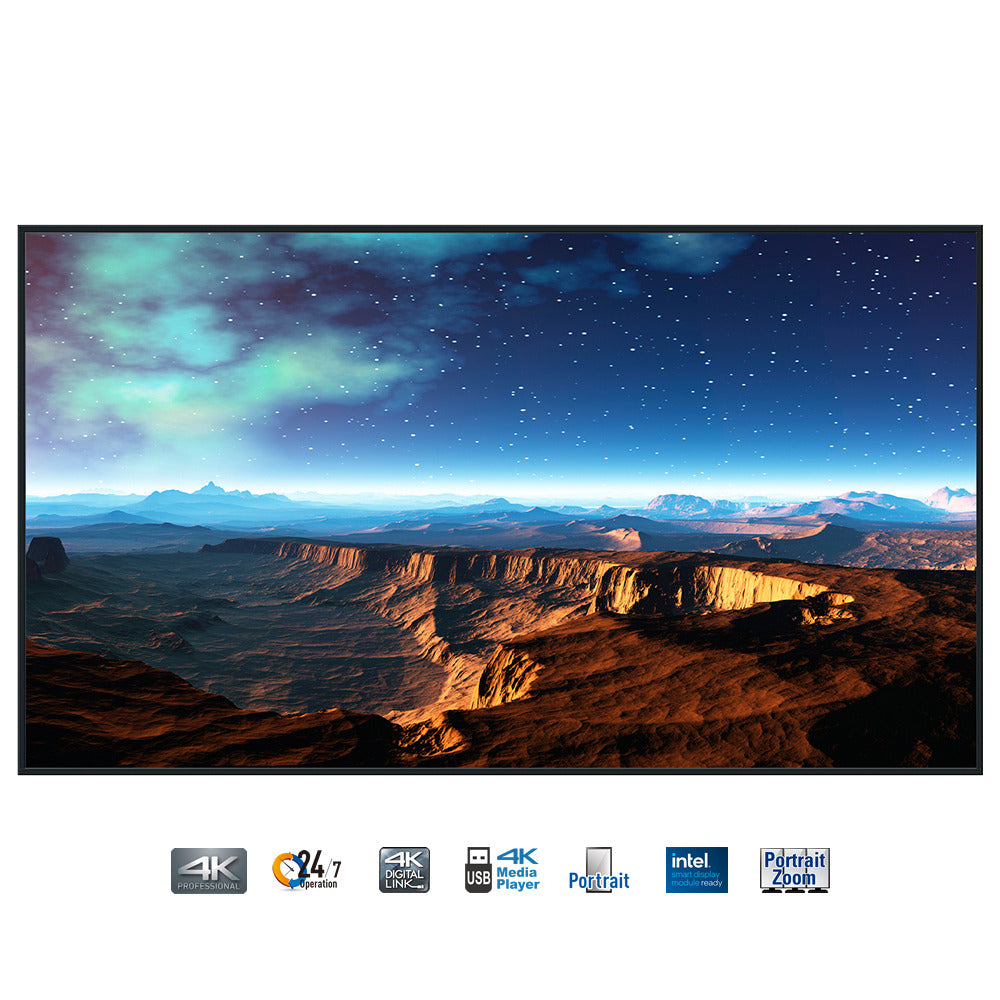

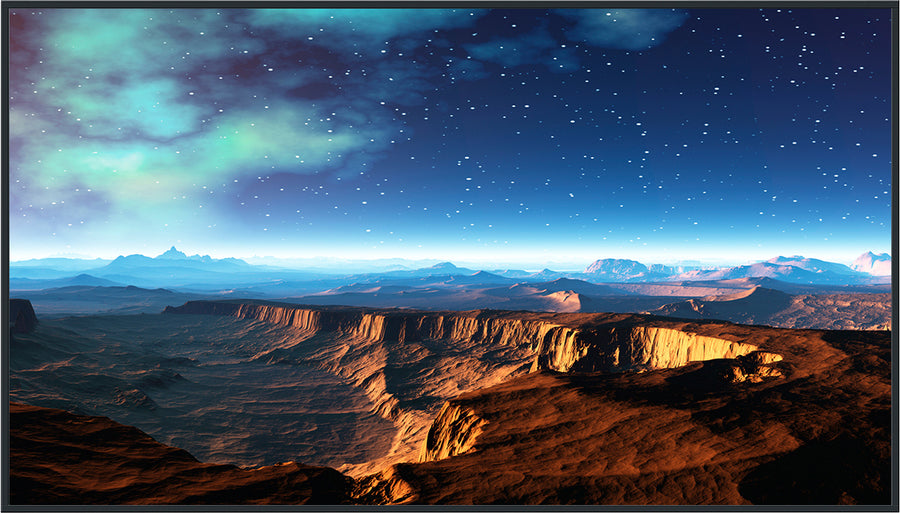

Panasonic SQ1H SeriesTH-75SQ1H 75 inch 4k UHD Display – TH-75SQ1H
The Panasonic SQ1H SeriesTH-75SQ1H 75 inch 4k UHD Display – TH-75SQ1H is a digital signage available in the UAE from Procure.ae.
The Panasonic SQ1H Series TH-75SQ1H 75 inch 4K UHD Display is engineered for professional environments demanding uncompromising visual clarity and robust performance. This 75 inch commercial display boasts an ultra-high 4K resolution, ensuring every detail is rendered with remarkable sharpness and color accuracy. Perfect for boardrooms, retail spaces, and educational institutions, the TH-75SQ1H features high-brightness technology, making content vivid even in well-lit areas. Its advanced digital signage capabilities support seamless integration with various content sources, while the slim,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
1500 nits
Weight
42.2 kg
- 4K UHD Resolution
- 75-Inch Large Screen
- High Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Resolution
Delivers ultra-crisp images with four times the detail of Full HD.
02
75-Inch Large Screen
Provides expansive visuals for impactful presentations and signage.
03
High Brightness
Ensures clear visibility even in brightly lit environments.
04
24/7 Reliability
Engineered for continuous operation without compromising performance.
05
Flexible Connectivity
Multiple HDMI, DisplayPort, and USB ports for seamless device integration.
06
Advanced Digital Signage
Supports a variety of content management and playback solutions.
07
Slim Bezel Design
Modern, sleek profile fits beautifully into any professional setting.
08
Energy Efficient
Optimized power consumption for cost-effective operation.
Specifications
32 specificationsGeneral
Key FeaturesUSB Media Player, Failover/Failback, Data Cloning, Digital Zoom, Multi display settings, Power on Screen Delay, Automatic position correction, Screen Saver, Power Management, Power save, Button Lock, Controller user level, Input search, 6-segment color management, 12-segment color management, Dynamic contrast, Color enhancement, Refine enhancer, Gradation smoother, Dynamic backlight control, Set up timer, AMX D.D, Crestron Connected, Extron XTP, WEB Browser control, PJLink, Multi Monitoring & Control Software compatible, Video Wall Manager compatible, Content management Software compatible, Screen Transfer Compatible, Image settings, HDMI CEC Compatible, Blue light reduction mode, Memory Viewer, Auto vertical and horizontal determination (Accelerometer), Portrait zoom, SNMP
What's in the BoxRemote Control, Batteries (AAA size) × 2, AC cord (2.0 m), Clamper × 3, USB memory cover × 1, SLOT adapter × 1, Operating Instruction Book, Sensor Module × 1, 4-pole micro plug cable (3 m) × 1, Double-sided tape × 2
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size14.9 mm
Brightness1500 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1
OrientationLandscape, Portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time10 ms
Screen Size75 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio In3.5 mm audio in × 1
Audio Out3.5 mm audio out × 1
DisplayPortDisplayPort (In × 1, Out × 1)
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage110–127 V AC, 220–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB-A × 2
Power
Power Consumption720 W
Standby Power≤ 0.5 W
Physical
Dimensions1684 x 962 x 96 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1870 x 1143 x 280 mm
VESA Mount600 x 400 mm
Weight42.2 kg
Downloads
Manufacturer documents for the Panasonic SQ1H SeriesTH-75SQ1H 75 inch 4k UHD Display – TH-75SQ1H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Panasonic digital signage used for?
The Panasonic SQ1H Series TH-75SQ1H 75 inch 4K UHD Display is engineered for professional environments demanding uncompromising visual clarity and robust performance. This 75 inch commercial display boasts an ultra-high 4K resolution, ensuring every detail is rendered with remarkable sharpness and.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
