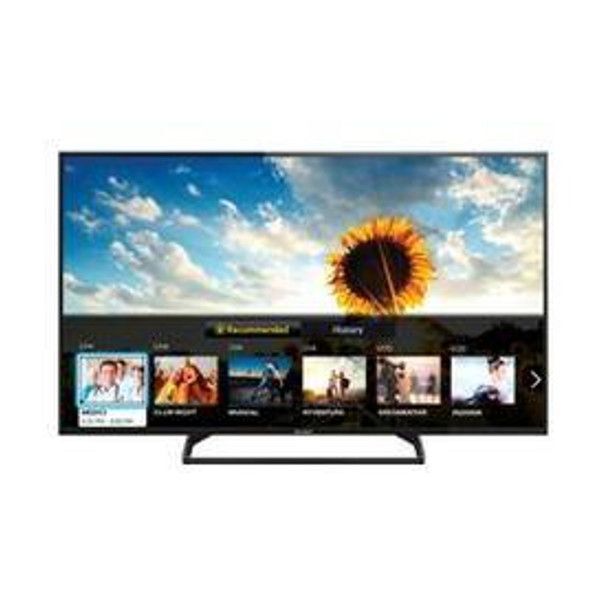

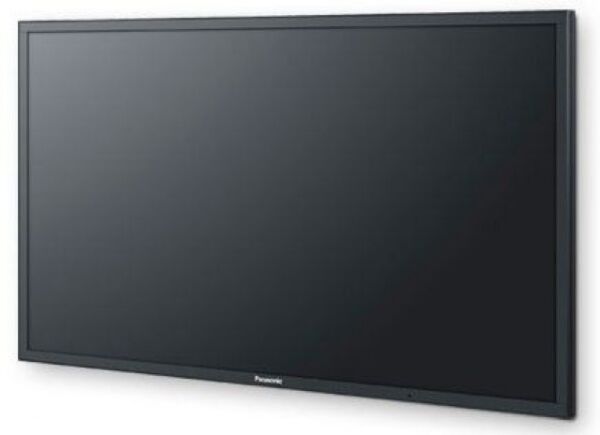

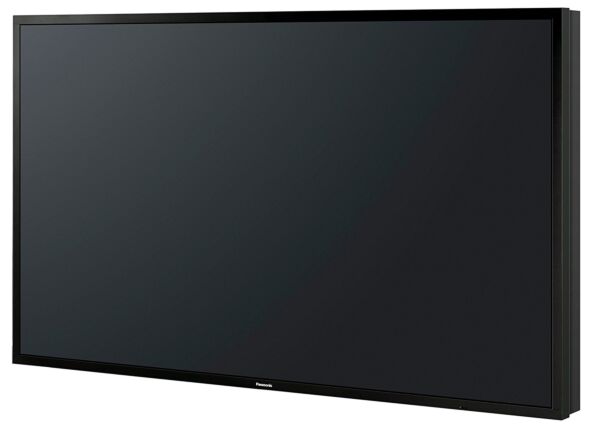

PANASONIC 80" TH-80LF50W Full HD LCD DISPLAY
- SKU: TH-80LF50W
Actual Stock & Price Can Be Confirmed After Placing the Order.
Features 1080p Full-HD professional LED LCD display, offering high brightness and flexible installation options. Capable of displaying clear images even in bright places The large screen and high 700cd/m2 brightness and 5000:1 contrast ratio ensure excellent, eye-catching visibility even in large public spaces which... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Features
1080p Full-HD professional LED LCD display, offering high brightness and flexible installation options.
Capable of displaying clear images even in bright places
The large screen and high 700cd/m2 brightness and 5000:1 contrast ratio ensure excellent, eye-catching visibility even in large public spaces which gratly increases the promotional value for signage use.

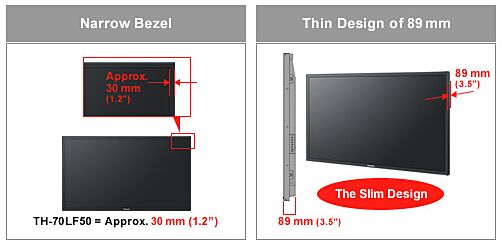

A slim design that fits almost any installation location
Ths display can be installed in a permanent hanging position using eyebolts. Wall-mount brackets and hanging fixtures in compliance with VESA specifications can also be used for flexible installation. The narrow bezel, thin design and lightweight design allow for the units to be installed in many different loctions.
Tough Features allow for safe, ongoing use even in crowded areas
The fan-less design prevents malfunctions otherwise cased by dust particles brought in by the fan. This enables safe installation in crowded areas. 24/7 Operation is possible thanks to this tough design making the display panel suitable for use as signage that operates all day and night in places such as resturants, shopping malls and transportation facilities. An optional protective glass is also available to protect the LCD panel surface so the display can be installed in busy public areas.
Lower power consumption is great for extended use
The edge light system used for backlighting requires a small number of LED units because the lights are installed only on the edges of the LCD panel, which is and excellent energy-saving measure. The display unit can also be mad thin and light. A built-In ambient light sensor detects ambient light and controls brightness. Low power consumption is achieved by controlling the brightness of the backlight
Specifications
| DISPLAY | Screen Size - Diagonal (mm) | 2032 (80") |
| Aspect Ratio | 16:9 | |
| Panel Type | LED | |
| Effective Display Area - W x H (mm) | 1771 x 996 | |
| Number of Pixels - H x V | 1920 x 1080 | |
| Pixel Pitch - H x V (mm) | - | |
| Brightness (cd / m 2) | 700 | |
| Contrast Ratio | 5000:1 | |
| Dynamic Contrast | - | |
| Response Time (ms (G to G)) | 9 | |
| Viewing Angle - Horizontal / Vertical (degrees) | 178 / 178 | |
| Operating Life (hours) | - | |
| Gradation | - | |
| Moving Picture Resolution (lines) | - | |
| Permeation Rate of Glass | - | |
| Full HD 3D | - | |
| FEATURES | 24 / 7 Operation | Yes |
| Ceiling Suspension | Yes | |
| Fanless Design | - | |
| Digital Zoom | Yes (x 1 ~ x 4) | |
| Portrait Zoom | - | |
| Automatic Picture Position | Yes (N x M, up to 5 x 5) | |
| Orientation - Landscape / Portrait | Yes | |
| Video Wall | Yes (N x M, up to 5 x 5) | |
| Display Size Setting | - | |
| Multi Screen | - | |
| Advanced Dual Picture Mode | - | |
| Blend Dual Picture | - | |
| NANO DRIFT Saver | - | |
| Text Overlay | - | |
| Daisy Chain | Yes | |
| Remote Daisy Chain | - | |
| Serial Control Daisy Chain | - | |
| 1:1 Pixel Mode | Yes | |
| Screen Saver | Yes | |
| PC / DVI Power Management | Yes | |
| Remote Operation Lock | - | |
| Remote System Monitoring | - | |
| Power-on Screen Delay | Yes | |
| Seam Hides Video Off Mode | Yes | |
| Heat Status | - | |
| ECO Mode | Yes | |
| Button / Input Lock | Yes | |
| Input Search | Yes | |
| Weekly Command Timer | - | |
| Extended Life | - | |
| Picture Profile / Memory Save | - | |
| Studio W / B Mode | - | |
| Studio Gain Mode | - | |
| CONNECTION TERMINAL | Video In | BNC x 1 |
| S-Video In | - | |
| Audio In - S-Video / Video - L-R | RCA Pin Jack x 1 set | |
| HDMI In | HDMI x 1 | |
| Component In | RGB: BNC x 1 set | |
| Audio In - HDMI - L-R | RCA Pin Jack x 1 set | |
| DVI-D In | DVI-D 24-pin x 1 | |
| Audio In - DVI-D - L-R | M3 Jack x 1 (Shared with PC In) | |
| PC In | Mini D-Sub 15-pin x1 | |
| Audio In - PC - L-R | M3 Jack x 1 (Shared with DVI-D In) | |
| DVI-I Out | DVI-I 24-pin x 1 | |
| Audio Out - L-R | - | |
| Function SLOT | - | |
| CONTROL | Serial In / Out | D-Sub 9-pin x 1 / x 1, RS-232C Compatible |
| LAN | RJ45 10Base-T / 100Base-TX, Compatible with PJ Link | |
| Multi AI | - | |
| IR Transmitter - In / Out | - | |
| 3D Shutter Out | - | |
| AUDIO | Speaker Out / Line Out | RCA Pin Jack x 1 set, Output level: Variable (- - 0 dB) |
| POWER | Power Supply (V AC) | 220 240, 50 / 60 Hz |
| Power Consumption (W) | Approx. 380 | |
| On Mode Average Power Consumption (W) | - | |
| Stand-by Conditions (W) | 0.5 | |
| Power-off Condition (W) | 0.3 | |
|
CERTIFICATIONS STANDARDS |
Safety Regulations | AS / NZS60065, SASO, IEC60065 / SS, IEC60065 / PAI, IEC60065 |
| Radiation Regulations | CISPR22 Class-B | |
| GENERAL | Cabinet Materials | Aluminium / Black |
| Dimensions - W x H x D | 1848 x 1073 x 89 | |
| Weight (kg) | Approx. 60 | |
| Bezel Width (mm) | Depth: 89 | |
| Bezel to Bezel (mm) | - | |
| Operating Temperature (o C) | 0 - 40 | |
| Operating Humidity (%) | 20 - 80 (non condensation) | |
| Altitude (m) | - | |
| REMOTE CONTROL | Power Supply | DC 3V (2 x R6 size batteries) |
| Operation Distance (m) | Approx. 7 (in front of display) | |
| Weight - including batteries (g) | Approx. 100 | |
| ACCESSORIES | Standard | AC Power Cord Remote Control Transmitter Batteries Operating Instruction Book |
| Optional | Pedestal TY-ST65P20 Wall-hanging Bracket TY-WK70PV50 Protection Glass (TBD) TY-PG80LF50 HD-SDI Terminal Board TY-FB10HD |
No datasheet available.
