SPECIFICATIONS

DISPLAY PANEL

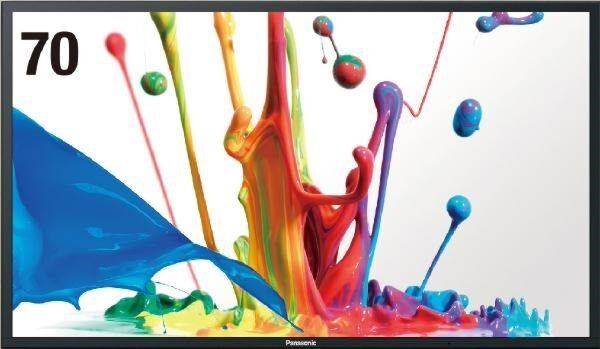

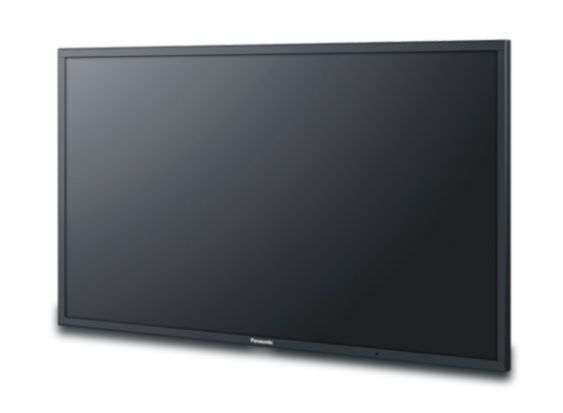

• Screen Size - Diagonal (mm): 1765 (70``)
• Aspect Ratio: 16:9
• Panel Type: LED
• Effective Display Area - W x H (mm): 1538 x 865
• Number of Pixels - H x V: 1920 x 1080
• Brightness (cd / m 2): 700
• Contrast Ratio: 5000:1
• Response Time (ms (G to G)): 9
• Viewing Angle - Horizontal / Vertical (degrees): 178 / 178

CONNECTION TERMINALS

• Video In: 1 x BNC
• Audio In (L/R): 2 set x RCA pin Jack & 1 x M3 jack (Shared with DVI-D In)
• Audio Out: 1 x RCA Pin (L/R)
• HDMI In: 1
• Component/RGB In: 3 Set BNC
• DVI-D In: 1 x 24 pin
• DVI-D Out: 1 x 24 pin
• PC In: 1 x Mini D-Sub 15 pin
• Function SLOT: 1 x SLOT 2.0

CONTROL

• Serial In/Out: D-SUB 9pin (1/1) (RS-232C Compatible)
• LAN: 1 x RJ-45 (10BASE-T/100BASE-TX)

MECHANICAL

• Dimensions (W x H X D): 1604 x 931 x 89 mm
• Weight: Approx. 47 kg (SN:209599-22) (209599-22)
