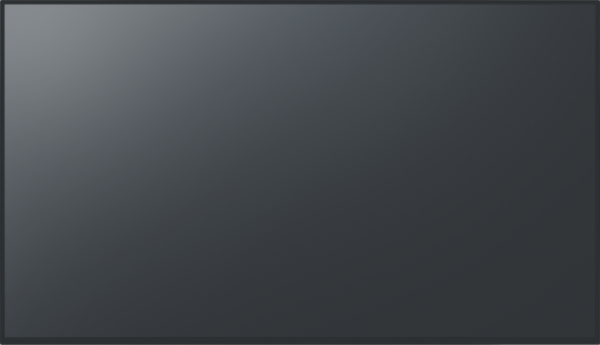

Panasonic 65" Commercial Professional Display TH -65SF2W
- SKU: TH -65SF2W
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW High picture quality and a wide viewing angle make these displays ideal for signage use. The SF2 Series incorporates a high-visibility IPS panel and a variety of functions that support signage use. It also features signage control functions like the USB Media Player,... See More
OVERVIEW
High picture quality and a wide viewing angle make these displays ideal for signage use.
The SF2 Series incorporates a high-visibility IPS panel and a variety of functions that support signage use. It also features signage control functions like the USB Media Player, which lets you simply insert a recorded USB media device for automatic playback, and Content Management Software, which makes it easy to create playlists combining video and still images.
SPECIFICATIONS
TH-65SF2 |
TH-55SF2 |
|
Display panel | ||
| Screen Size | 65-inch (1639 mm) | 55-inch (1387 mm) |
| Panel Type/Backlight | IPS Panel/E-LED | |
| Aspect Ratio | 16:9 | |
| Effective Display Area (W x H) | 1428 x 803 mm (52.6" x 31.6") | 1209 × 680 mm (47.6" x 26.7") |
| Resolution (H x V) | 1920 x 1080 | |
| Brightness (Typ) | 450 cd/m² | |
| Contrast Ratio | 1300:1 | 1100:1 |
| Response Time | 10 ms (G to G) | 12 ms (G to G) |
| Viewing Angle (H/V) | 178°/178° (CR≥10) | |
Terminal*1 | ||
| VIDEO In/Audio In | 4-pole Mini-jack (M3) x 1 (Audio In: shared with DVI-D/PC In) | |
| HDMI In | HDMI Type A Connector x 2 | |
| DVI-D In | DVI-D 24-pin x 1 (DVI Revision 1.0 compliant), HDCP 1.1 compatible | |
| Audio In (L/R) | Stereo Mini-jack (M3) x 1 (Shared with PC/VIDEO In) | |
| PC In | Mini D-Sub 15-pin x1 (DDC2B compatible) | |
| Audio In (L/R) | Stereo Mini-jack (M3) x 1 (Shared with DVI-D/VIDEO In) | |
| USB | USB TYPE A Connector x 1, DC 5V/1A (USB 3.0 is not supported) | |
| Audio Out (L/R) | Stereo Mini-jack (M3) x 1 | |
| Serial In/Out | D-Sub 9-pin (Male) x 1/ x 1, RS-232C Compatible | |
| LAN | RJ45 x 1, 100BASE-TX, compatible with PJLink™ for TH-65SF2E (for Europe/CIS) and TH-65/55/49/43SF2W (for Asia, Middle East, Africa) (Shared with DIGITAL LINK); 10BASE-T/100BASE-TX, compatible with PJLink™ for TH-55/49/43SF2E (for Europe/CIS) and TH-65/55/49/43SF2U (for Americas) |
|
| DIGITAL LINK | RJ45 x 1, 100BASE-TX, compatible with PJLink™ for TH-65SF2E (for Europe/CIS) and TH-65/55/49/43SF2W (for Asia, Middle East, Africa) (Shared with LAN) |
|
| IR In/Out | Stereo Mini-jack (M3) x 1/ x 1 | |
Audio | ||
| Built-in Speaker | 20 W [10 W + 10 W] | |
Electrical | ||
| Power Requirements | 110-240 V AC, 50 Hz / 60 Hz | |
| Power Consumption | 155 W | 115 W |
| On Mode Average Power Consumption*2 | 124 W | 87 W |
| Power off Condition | Approx. 0.3 W | |
| Stand-by Condition | Approx. 0.5 W | |
Mechanical | ||
| Dimensions (W x H x D) | 1452 × 834 × 64 mm (57.2" x 32.9" x 2.5") | 1234 × 710 × 46 mm (48.5" x 28.0" x 1.8") |
| Weight | Approx. 29.8 kg (65.7 lbs.) | Approx. 18.0 kg (39.7 lbs.) |
| Bezel Width | T/R/L: 9.5 mm (0.38"), B: 15.7 mm (0.62") | T/R/L: 9.5 mm (0.38"), B: 15.5mm (0.61") |
| Carton Size (W x H x D) | 1648 x 1076 x 280 mm (64.9" x 42.4" x 11.1") | 1448 x 952 x 223 mm (57.0" x 37.5" x 8.8") |
| Gross Weight | Approx. 40.0 kg (88.2 lbs.) | Approx. 25.0 kg (55.1 lbs.) |
| Cabinet Material/Color | Metal (front), resin (rear cover)/Black | |
| Pitch for Wall-Hanging | VESA Compliant 400 x 400 mm (15.8" x 15.8") | |
Installation Requirement*3 | ||
| Orientation | Landscape/Portrait (Angle adjustment 0 - 45 degrees for both left and right with landscape setting. When installing the portrait setting, be sure that the Power Indicator comes to the upside.) |
|
| Tilting Angle | Landscape setting: 0 - 45 degrees forward/backward Portrait setting: 0 - 45 degrees forward/backward |
|
Environment | ||
| Operating Environment | Temperature: 0 °C to 40 °C (32°F to 104°F)*4, 0 °C to 35 °C (32 °F to 95 °F)*5 Humidity: 20 % to 80 % (Non Condensation) |
|
| Operating Time*6 | 24 h/day | |
