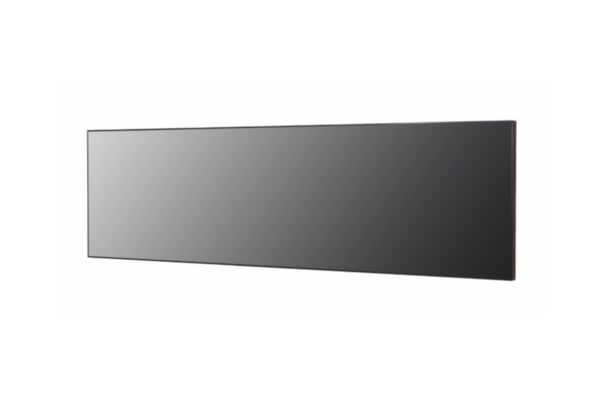

LG Ultra Stretch Signage 88", 4K Ultra HD Resolution, Brightness: 700 cd/m2, 88BH7D
- SKU: 88BH7D
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW 32:9 Extended Wide Format It is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery. Ultra HD Resolution (3,840 x 1,080) Ultra HD resolution delivers an immersive viewing experiences with vivid colors and... See More
OVERVIEW
32:9 Extended Wide Format
It is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery.
Ultra HD Resolution (3,840 x 1,080)
Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.
Optimized Content Delivery
88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.
PBP with Four Divisions in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.
32:9 Content Editing
With the LG SuperSign Media Editor, you can easily edit images or video clips of original content to fit 32:9 ratio.
Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) as they want.
Easy Management with LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.
Tiling Scene with DP Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.
SPECIFICATIONS
| Screen Size | 88" |
|---|---|
| Resolution | 3,840 x 1,080 (UHD) |
| Brightness (Typ., cd/m²) | 700 |
| Input | HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card |
|---|---|
| Output | DP, Analog Audio |
| External Control | RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor |
| Bezel Width | 4.4 mm (L/R), 5.9 mm (U/D) |
|---|---|
| Monitor Dimension (W x H x D) | 2,158.3 x 611.2 x 84.8 mm (without handle) |
| Weight (Head) | 38 kg |
| Carton Dimensions (W x H x D) | 2,274 x 717 x 212 mm |
| Packed Weight | 53.2 kg (Pallet included) |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP / Energy Star | Yes / No |
| Content Management Software | SuperSign Premium |
|---|---|
| Control and Monitoring Software | SuperSign C |
| Basic | Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload) |
|---|---|
| Optional | AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available |
No datasheet available.
