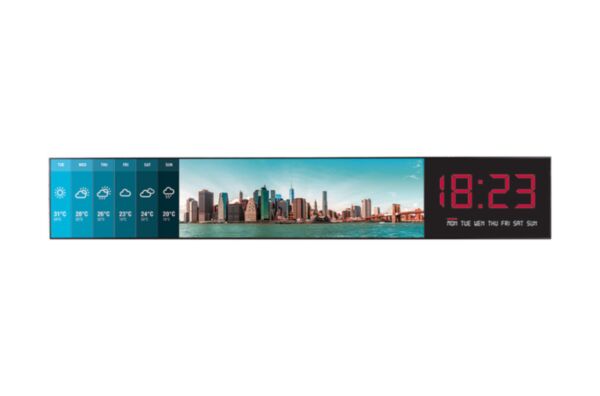

LG Ultra Stretch Signage 86", 4K Ultra HD Resolution, Brightness: 700 cd/m2, 86BH7C
- SKU: 86BH7C
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Ultra HD Resolution (3,840 x 600) Ultra HD large screens deliver an immersive viewing experience. 58:9 Extended Wide Format Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display. 4 Divided PBP in Landscape or... See More
OVERVIEW
Ultra HD Resolution (3,840 x 600)
Ultra HD large screens deliver an immersive viewing experience.
58:9 Extended Wide Format
Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.
4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen up to 4 parts in landscape or portrait installations.
58:9 Content Editing
With the LG SuperSign media editor, you can easily edit images or video clips of original content without any additional editing programs.
Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.
Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.
LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.
Side Bracket / Classified Port
This product supports side brackets for buried installations.
The classified in/out port prevents errors when connecting a daisy chain.
SPECIFICATIONS
| Screen Size | 86" |
|---|---|
| Resolution | 3,840 x 600 (UHD) |
| Brightness | 700 |
| Input | HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card |
|---|---|
| Output | Analog Audio |
| External Control | RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio |
| Bezel Width | 4.4mm(L/R), 5.9mm(U/D) |
|---|---|
| Monitor Dimension (W x H x D) | 2158.3x348.5x81.7 |
| Weight (Head) | 20.5kg |
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / NA |
| OPS type compatible | Yes |
|---|---|
| External Media player Attatchable | No |
| SuperSign-w lite | Yes |
|---|---|
| SuperSign-c | Yes |
| Basic | Remote Controller(including battery 2ea), Power Cord, DP(2.6M), RS-232C Cable(3M) Owner's Manual(Website upload) |
|---|---|
| Optional | AN-WF500(WiFi USB Dongle), MP700, KT-OPSA(OPS KIT), KT-SP0(RGB Sensor) ** Stand is not available |
