LG Ultra HD Large Display 75 Inch 75UM3C
- SKU: 75UM3C
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Ultra HD Resolution Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables to describe fine details without distortion. Especially UM3C series ensures stable UHD video playback by supporting HEVC* that offers double data... See More
OVERVIEW
Ultra HD Resolution
Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables to describe fine details without distortion. Especially UM3C series ensures stable UHD video playback by supporting HEVC* that offers double data compression ratio at the same level of video quality compared to the conventional H.264.
*HEVC: High Efficiency Video Coding Highly Reliable

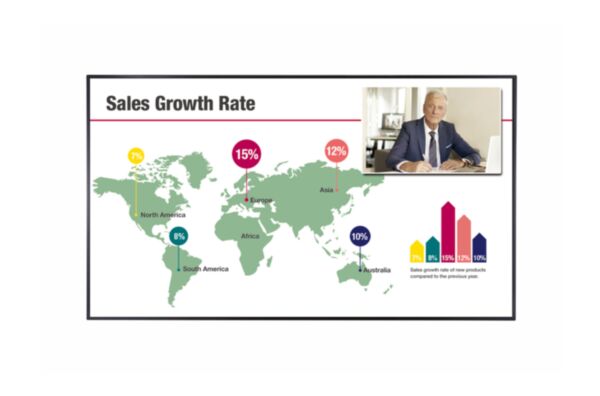

Multiple screen by PBP/PIP
PBP (Picture-By-Picture) features multi screen in a single display with upto 4 input sources, thus maximizing the usability of large UHD display. In addition, PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts, so that users can arrange many different usage scenarios efficiently.
USB Contents Playback and Scheduling
Contents can be simply played and scheduled via USB, so additional server connection is not required, enabling easy content management.
Wireless Solution
UM3C series supports wireless services for more optimized user experience with built-in Wi-Fi(802.11n). Mirroring supports sharing contents among devices on a Wi-Fi network and Soft AP makes the display operate as a wireless access point for other digital devices.
Compatibility for Meeting Room
UM3C series ensures secured compatiblity with AV control Systems for seamless integration and automated control in meeting rooms, boosting business management efficiency.
OPS / HDBaseT Connectivity
The UM3C provides an OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
High-Performance SoC with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory (8GB), pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools.
*System on Chip

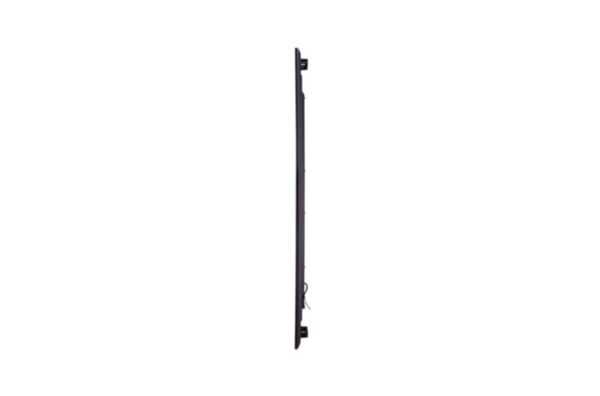

Slim Depth & Even Bezel
The slim depth and even bezel allows an easy installation and a perfect fit for a sleek look.
Detachable Logo
The detachable logo allows for installation in the desired orientation in landscape or portrait mode.
SPECIFICATIONS
| Screen Size | 75" |
|---|---|
| Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 350 |
| Input | HDMI, DP, DVI-D, Audio, USB 3.0, SD Card |
|---|---|
| Output | DP, Audio |
| External Control | RS232C, RJ45, IR Receiver, Pixel Sensor |
| Bezel Width | On: 15.8mm, Off: 14.9mm |
|---|---|
| Monitor Dimension (W x H x D) | 1,682.37 x 960.3 x 39.7mm |
| Weight (Head) | 41.5kg |
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Typ. | 160W |
|---|---|
| Smart Energy Saving | 115W |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / No |
| OPS type compatible | Yes |
|---|---|
| External Media player Attatchable | Yes (MP500/MP700) |
| SuperSign-w lite | Yes |
|---|---|
| SuperSign-c | Yes |
| Basic | Remote Controller (include 2ea batteries), Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Memory Cover |
|---|---|
| Optional | Pixel sensor (KT-SP0), Media player, OPS Kit (KT-OPSA), HDBaseT (EB-B100) |
