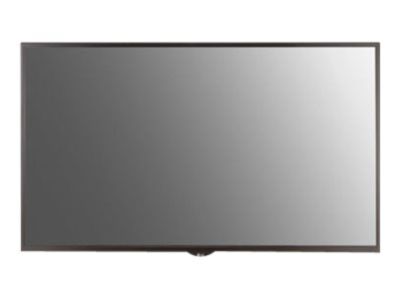

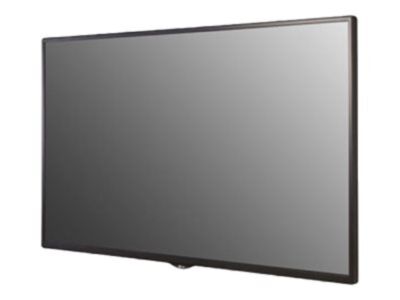

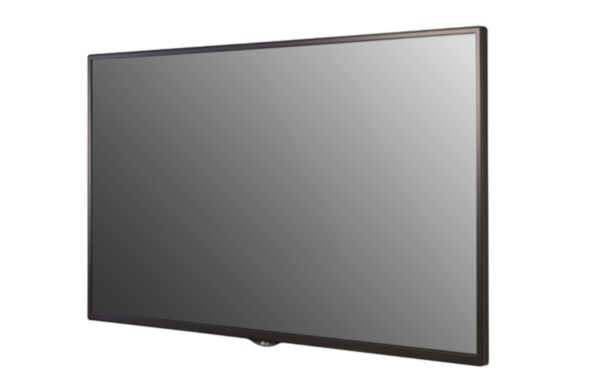

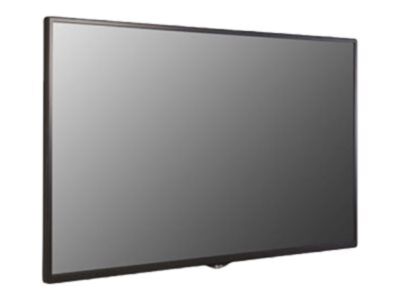

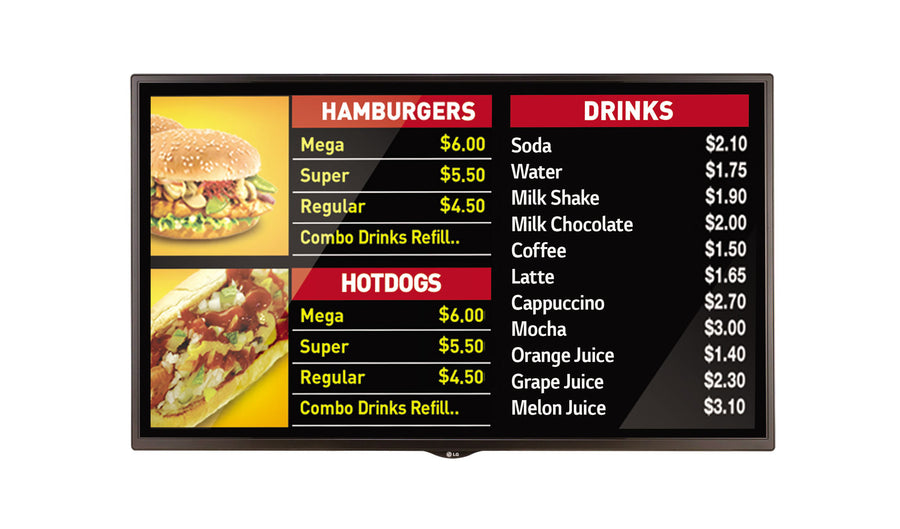

LG Stylish Design Slim Bezel Full HD 43", IPS LCD Panel, Brightness 350 cd/m2 43SM3CB
- SKU: 43SM3CB
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW Marketing Description The SM3C Series, with webOS signage, enables customized apps that are easy to create using LG's Software Development Kit. The built-in Wi-Fi and SoC reduce the total cost of ownership and simplify installation, allowing you to manage content more conveniently. The... See More
OVERVIEW
Marketing Description
The SM3C Series, with webOS signage, enables customized apps that are easy to create using LG's Software Development Kit. The built-in Wi-Fi and SoC reduce the total cost of ownership and simplify installation, allowing you to manage content more conveniently. The SM3C series strengthens capabilities in supporting various network-based protocols.
Quad Core System on Chip/SoC: The high-performance SoC can execute several tasks at the same time and provides smooth content playback.
The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.
Group Manager: Content can be created, distributed and controlled by a signage without a dedicated PC or server.
PBP (Picture-By-Picture) / PIP (Picture-In-Picture): PBP and PIP features enable you to compose various layouts for several digital devices.
IP Streaming Protocol: Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS .
Secure Communication Protocol: By supporting HTTPS protocol, communication between server and signage is more secure.
Proxy Server: Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers).
Wi-Fi Mirroring: Content sharing is more convenient on a Wi-Fi network.
Soft AP software: Can operate as a wireless access point for mobile devices.
Simple Installation: Installation has been simplified by removing the external media player and Ethernet/RS232C cables.
BEACON: With BEACON and Bluetooth Low Energy (BLE) supported by SM3C, retail stores can provide coupons and information in real time. (SM3C is enhanced to support ibeacon and Eddystone.
Dust & Humidity Protection: Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Detachable logo: The detachable logo allows for installation in landscape or portrait mode.
SPECIFICATIONS
PANEL |
|
| Screen Size | 43 class (42.5" diagonal) |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 350 cd/m2 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.)) |
| Orientation | Portrait & Landscape |
| Response Time | 12 ms (G to G BW), 9.4 ms (WOT) |
| Operating Hour | 18 Hr |
| Life time (Typ.) | 50,000 hrs (Typ.) |
PHYSICAL SPECIFICATION |
|
| Monitor Dimension (W x H x D) | 969.6 x 563.9 x 38.6 mm/38.2 x 22.2 x 1.52" |
| Bezel Color | Black |
| Monitor with Optional Stand Dimensions (W x H x D) | 969.6 x 622.2 x 193 mm/38.2 x 24.5 x 7.70" |
| Packed Weight | 12.4kg / 27.3lb |
| Bezel Width | 11.9 mm (T/R/L), 18 mm |
| Monitor with Optional Stand & Speaker Dimensions (W x H x D) | 969.6 x 622.2 x 193 mm/38.2 x 24.5 x 7.70" |
| Weight (Head) | 9.8 kg / 21.6lb |
| Weight (Head + Stand + Speaker) | 12.8 kg / 28.2lb |
| VESA Standard Mount Interface | 300mm x 300mm |
| Carton Dimensions (W x H x D) | 1,052 x 650 x 123 mm / 41.4 x 25.6 x 4.84" |
CONNECTIVITY |
|
| Input | HDMI, DP, DVI-D, RGB, Audio in |
| Output | DP, Audio, External Speaker out |
| External Control | RS232C, RJ45, IR receiver, Pixel Sensor, USB 3.0, SD card |
SPECIAL FEATURES |
|
| Yes | Temperautre Sensor, Auto Brigtness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM wake up, Energy saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Failover, Mirroring, BEACON, Embedded Template |
ENVIRONMENT CONDITIONS |
|
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
POWER |
|
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
POWER CONSUMPTION |
|
| Max | 85W |
| Typ. | 70W |
| Smart Energy Saving | 52W |
STANDARD (CERTIFICATION) |
|
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
UPC |
|
| 43SM3C-B | 7 19192 60903 7 |
MEDIA PLAYER COMPATIBILITY |
|
| External Media Player Attatchable | Yes (MP500/MP700) |
| OPS Type Compatible | Yes |
ACCESSORIES |
|
| Basic | Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover |
| Optional | Speaker (SP-5000), Stand (ST-432T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KTOPSA), HD Base T (EB-B100) |
SOFTWARE COMPATIBILITY |
|
| SuperSign W/Lite | Yes |
| SuperSign C | Yes |
