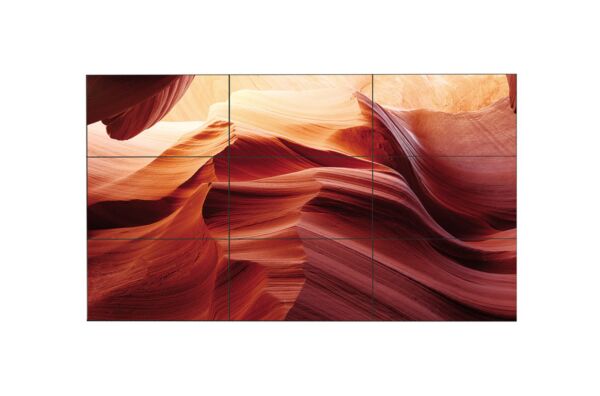

LG Slim Design Full HD 55" Direct LED Display, Brightness 500 cd/m2, 24/7 Operation, 55LV75A
- SKU: 55LV75A
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Super Narrow Bezel 47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital wall that is easily installed, maintained and managed. Higher Brightness Uniformity Brightness uniformity 90 ensures high-quality image delivered across displays. Evolved Daisy-Chain... See More
OVERVIEW
Super Narrow Bezel
47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital wall that is easily installed, maintained and managed.
Higher Brightness Uniformity
Brightness uniformity 90 ensures high-quality image delivered across displays.
Evolved Daisy-Chain Performance
DisplayPort1.2 connectors enable UHD content playback on 4K Video Wall in 2x2 displays. (available on 55LV75A-7B.APD/55LV77A-7B.APD)
Vivid Imagery Viewing
TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image details.
SuperSign V for Dynamic Layout
- Use given templates to configure video wall layout easily
- Rotate, cut and edit content according to a defined layout
- Flexible content editing in various layouts is viable
- Scheduled-based content playback based on time and day
- Distribute content to media players as well
Free SuperSign C for Advanced Color Adjustment
- Intuitive GUI in SuperSign C S/W allows to measure and adjust color and brightness instantly on display
- Automatic white balancing of a video-wall display using a sensor
Free SuperSign C for Remote Monitor and Control
Intuitive GUI-based Remote Monitoring & Control via the networks and RS232 connection feature in SuperSign C S/W.
SPECIFICATIONS
| Screen Size | 55" (54.64" measured diagonal) |
|---|---|
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 500 |
| Digital | DVI-D (1), HDMI (2), Display Port (1) with HDCP for input |
|---|---|
| Analog | RGB (1), Shared Component, AV (1) |
| Audio | PC Audio In (1) |
| External Control | RS232C (1), RJ45 (1), IR Receiver (1) |
| USB | USB (1) |
| Digital | Display Port(1) |
|---|---|
| Audio | Audio Out(1) |
| External Control | RS232C(1) |
| Bezel Width | 2.25mm (left/top), 1.25mm (right/bottom) |
|---|---|
| Monitor Dimension (W x H x D) | 1213.4 x 684.2 x 88.5 mm |
| Weight (Head) | 23.0kg |
| VESA™ Standard Mount Interface | 600 x 400mm |
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Typ. | 160W |
|---|---|
| Smart Energy Saving | 130 W |
| DPM | 0.7 W |
| Power off | 0.5 W |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "B" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 6.0) |
| External Media player Attatchable | Yes |
|---|
| SuperSign-w lite | Yes |
|---|---|
| SuperSign-c | Yes |
| Basic | Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw |
|---|---|
| Optional | WM-L640V(Landscape), WM-P640V(Portrait) |
No datasheet available.
