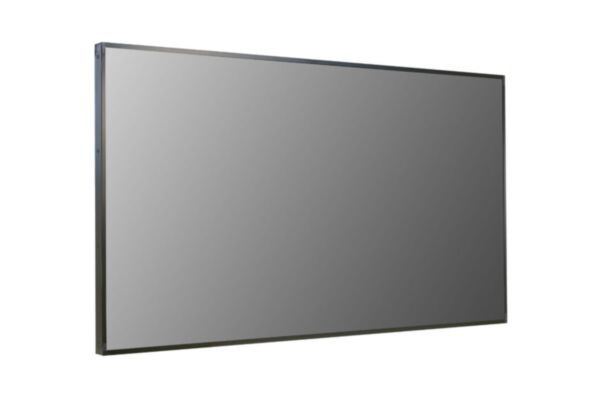

LG Slim Bezel Full HD, 55" Display, Brightness 3000 cd/m2, 55XF3C
- SKU: 55XF3C
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW High Operationing Temperature Its high reliability under high operating temperatures reduces the material costs of the enclosure. Dust & Humidity Protection The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions. Increased Brightness The... See More
OVERVIEW
High Operationing Temperature
Its high reliability under high operating temperatures reduces the material costs of the enclosure.
Dust & Humidity Protection
The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.
Increased Brightness
The brightness has been increased to 3,000 cd/m2 compared to previous models
Wide Viewing Angle
IPS technology provides better control of the liquid crystals which allows the screen to be vie ed from virtually any angle.
Color Accuracy
IPS technology displays accurate color for each pixel closest to the original image and reproduces the original color without distortion.
QWP (Quarter Wave Plate)
FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by 30 compared to conventional RGB panels.
Smart Brightness Control
The auto-brightness sensor and preset time scheduler save power whenever possible.
Space Management Efficiency

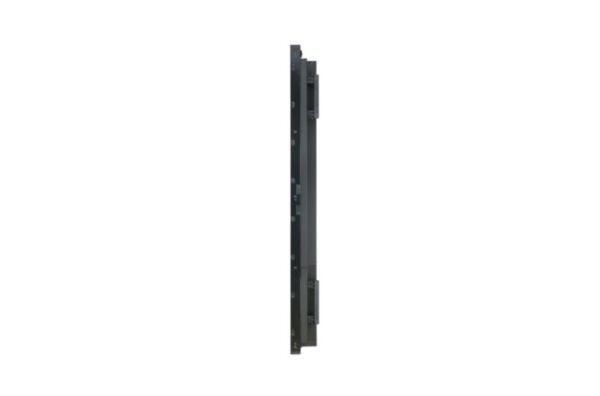

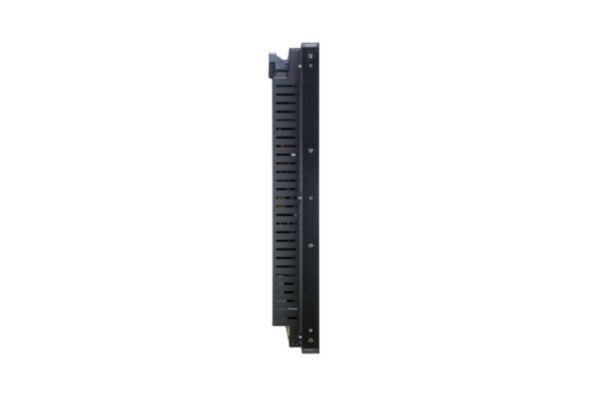

Slimmer Depth
The slimmer depth saves space for installation and makes the enclosure design slimmer.
Real-Time Remote Monitoring
When an alarm occurs, an email notification is sent through the SNMP using the SuperSign C or SI software. In case a malfunction or error occurs, real-time remote care is available.
Saving System Log Files
The XF3C supports log file back-up for fault clarification when the display fails. This allows you to conveniently check when an error has occurred.
SPECIFICATIONS
| Screen Size | 55" Class (54.64" measured diagonally) |
|---|---|
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness (Typ., cd/m²) | 3000 |
| Input | HDMI(2), DP, DVI-D, Audio, USB |
|---|---|
| Output | DP, External Speaker Out (L/R) |
| External Control | RS232C (In/Out), RJ45, IR Receiver, Pixel Sensor |
| Bezel Width | 9.9mm (L/R),12mm (T/B) |
|---|---|
| Monitor Dimension (W x H x D) | 1,235.4 x 709.4 x 106 mm |
| Weight (Head) | 28.5 kg |
| Operation Temperature | 0°C to 50°C (w/o Direct Sunlight) / 0°C to 40°C (Direct Sunlight) |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Typ./Max | 280 W / 295 W |
|---|---|
| Smart Energy Saving | 160 W |
| Safety | UL recognized / CB |
|---|---|
| EMC | FCC Class "A" / CE / KC / VCCI |
| webOS | webOS 1.0 |
|---|---|
| Content Management Software | SuperSign W |
| Control and Monitoring Software | SuperSign C |
| Basic | Remote Controller (2 batteries included), Power Cord, IR extension cable/PCB, HDMI Cable, Manual(ESG&EIG) |
|---|---|
| Optional | KT-SP0, AN-WF500 *Stand is not available |
No datasheet available.
