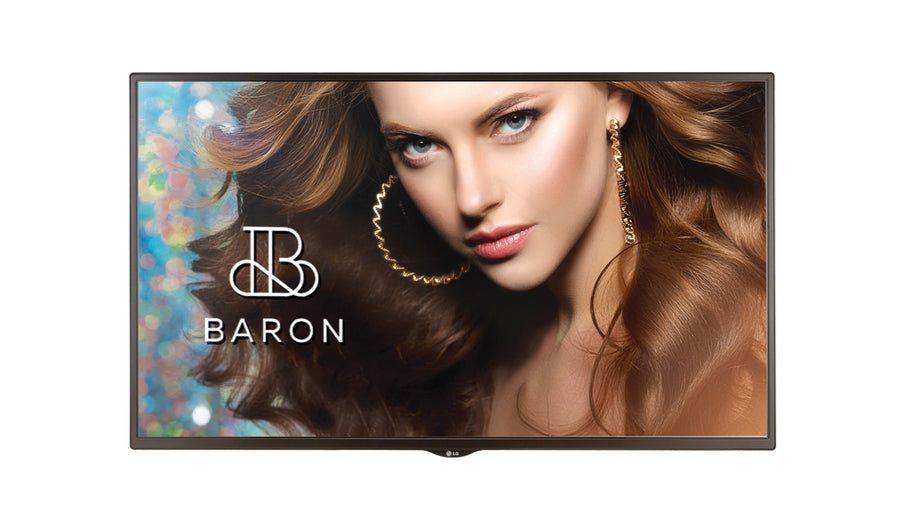

LG Full HD Large Display 55 Inch 55SH7DD
- SKU: 55SH7DD
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Outstanding Brightness The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively. Wide Viewing Angle Thanks to IPS technology, SH7DD series provides a clear, vibrant picture with no washed... See More
OVERVIEW
Outstanding Brightness
The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.
Wide Viewing Angle
Thanks to IPS technology, SH7DD series provides a clear, vibrant picture with no washed out tones at any angle.
Low Power Consumption
SH7DD offers excellent energy efficiency and cost savings by decreasing power consumpton by approx. 32％ compared to the conventional model with equal luminance.
Power Management Mode
Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
USB Content Scheduling
There is no need for additional server or media player connections because SH7DD supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.
Wi-Fi Support
SH7DD series supports Wi-Fi dongle connection for easier content distribution and installation. And SNMP* support ensures convenient network management.
No Signal Image Setting
In case there is no signal input, it is possible to play back images preset by the user using a USB, instead of displaying the conventional no signal image.
Local Time Setting
A time zone can be configured at initial installament, so that the signage display accesses the local NTP* server and automatically sets the local time. In addition, the local time can be adjusted manually by grouping multiple signages using RS232C without a network connection.
Detachable Logo & Built-in Speaker

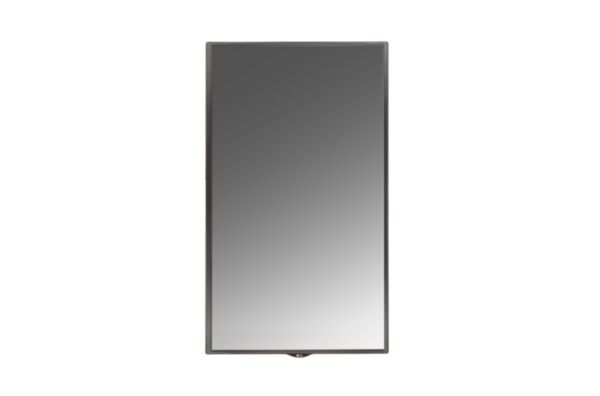

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
SPECIFICATIONS
| Screen Size | 55" |
|---|---|
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness (cd/㎡) | 700 |
| Input | HDMI (2), DVI, RGB, Audio, USB 2.0 |
|---|---|
| Output | Audio |
| External Control | RS232C In/Out, RJ45 In, IR Receiver In |
| Bezel Width | 11.9 mm (T/R/L), 18 mm (B) |
|---|---|
| Monitor Dimension (W x H x D) | 1,238 x 714.9 x 54 mm |
| Weight (Head) | 17.3 kg |
| VESA™ Standard Mount Interface | 300 x 300 |
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Typ. | 95 W |
|---|---|
| Smart Energy Saving | 75 W |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | Yes(N/A for EU ErP) / Yes(Energy Star 7.0) |
| OPS type compatible | No |
|---|---|
| External Media player Attatchable | Yes (MP500/MP700) |
| Content Management Software | SuperSign Premium |
|---|---|
| Control and Monitoring Software | SuperSign C |
| Basic | Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver |
|---|---|
| Optional | Stand (ST-492T), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T550) |
