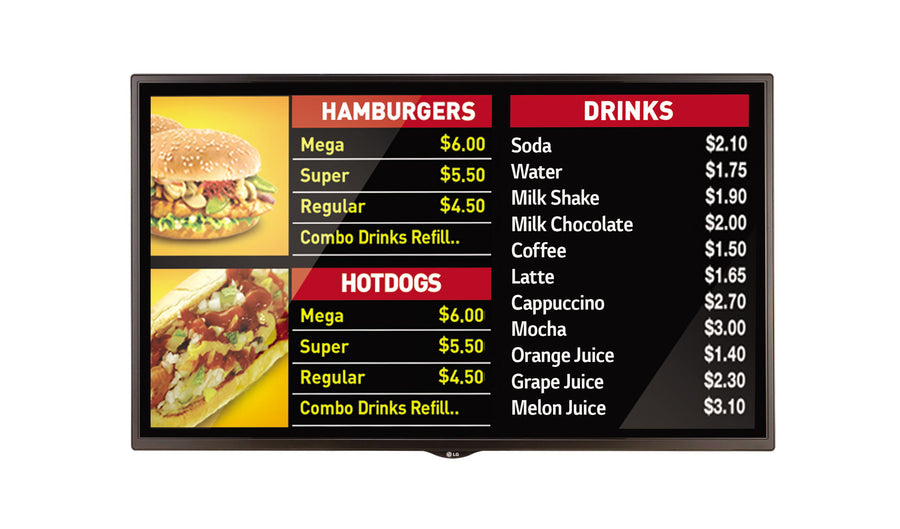

LG Full HD Display 55 Inch 55SM3CB
- SKU: 55SM3CB
Actual Stock & Price Can Be Confirmed After Placing the Order.
OVERVIEW The black SM3C Series 55" Full HD Signage Display from LG features a Quad Core SoC (System-on-Chip) processor for quick access to content and smooth playback. The webOS 3.0 platform allows you to build apps and construct your own customized signage solutions using... See More
OVERVIEW
The black SM3C Series 55" Full HD Signage Display from LG features a Quad Core SoC (System-on-Chip) processor for quick access to content and smooth playback. The webOS 3.0 platform allows you to build apps and construct your own customized signage solutions using the LG Software Development Kit (not included). Built-in Wi-Fi simplifies installation and allows you to conveniently manage content. This signage display supports various network-based protocols like RTSP/RTP, MMS, HLS, and MPEG-2 TS. The screen can be mounted in portrait or landscape orientation, and the LG logo on the bezel can be displayed accordingly.
Smart Platform
-
- Quad Core SoC (System-on-Chip) can execute several tasks at the same time and provides smooth content playback
- webOS 3.0 platform provides powerful and convenient creation tools, including app development materials
- Group Manager ─ content can be created, distributed and controlled by a signage without a dedicated PC or server
- PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices
Network Protocol Support
-
- Supports various types of IP video streaming protocol, such as RTSP/RTP, MMS, HLS, and MPEG-2 TS
- Thanks to HTTPS protocol support, communication between server and signage is secure
- Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Wireless Solution
-
- Built-in Wi-Fi conforms to 802.11n (2.4/5 GHz) standard
- Mirroring and content sharing is possible on a Wi-Fi network
- Soft AP software allows the monitor to operate as a wireless access point for mobile devices
- Installation is simplified as no external media player or Ethernet/RS232C cables required
Supportive Convenience
-
- With Beacon and Bluetooth Low Energy (ibeacon and Eddystone) support, retail stores can provide coupons and information in real time
Dust & Humidity Protection
-
- Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity, and other harsh conditions
Orientation
-
- Detachable logo allows for installation in landscape or portrait mode
SPECIFICATIONS
Display | |
|---|---|
| Screen Size (Diagonal) | 54.6" |
| Native Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Brightness | 350 cd/m² |
| Viewing Angle (H x V) | 178° H x 178° V |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
General | |
|---|---|
| Display Orientation | Landscape, Portrait |
| Maximum Multiple Display Configuration | 15 x 15 |
| Lighting Lifespan | 50,000 Hours |
Surface | |
|---|---|
| Hardness Rating | 3H |
| Haze Level | 1% |
Hardware | |
|---|---|
| Storage | 8 GB |
Electrical | |
|---|---|
| Power Consumption | Maximum: 110.0 W Typical: 95.0 W Economy Mode: 68.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental | |
|---|---|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Packaging Info | |
|---|---|
| Package Weight | 49.0 lb |
| Box Dimensions (LxWxH) | 53.0 x 32.0 x 7.0" |
