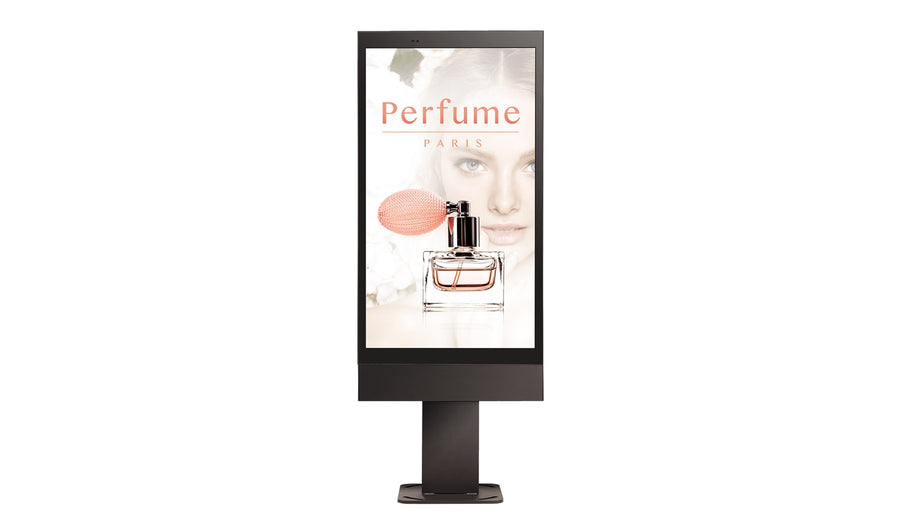

LG Full HD Outdoor Screen 55 Inch, Brightness : 3,000 cd/m2, 55XE3C
- SKU: 55XE3C
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Smart Brightness Control The auto-brightness sensor and preset time scheduler save power whenever possible. Advanced Local Dimming The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.*55XE3C: 160 Blocks QWP... See More
OVERVIEW
Smart Brightness Control
The auto-brightness sensor and preset time scheduler save power whenever possible.
Advanced Local Dimming
The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.
*55XE3C: 160 Blocks
QWP (Quarter Wave Plate)
FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
No Blackening Effect
Even under direct sunlight exposure, LG commercial monitors remain free from blackening defects under 110°C and provide superior quality for outdoor usage.
Anti-reflection
Less interference between reflection of external light & back light thanks to anti-reflection coating.
Dust & Humidity Protection Designed with IP56 Rating
The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.
High Operating Temperature
The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.
Enhanced Thermal Management
Environmentally sealed structure for waterproofing and protection against brake dust and fumes. Thermal management solution prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.
9.5 mm Protective Glass
Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.
* With same luminance
Web Monitoring
The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.
Optional Stand
Optional stand to allow panel to stand freely and facilitate easy cable management.
SPECIFICATIONS
| Screen Size | 55" Class (54.64" measured diagonal) |
|---|---|
| Native Resolution | 1,920 x 1,080 (FHD), M+ |
| Input | HDMI, DP, DVI-D, Audio |
|---|---|
| Output | DP, External Speaker (*waterproof speakers are mandatory for outdoor installation) |
| External Control | RS232C, RJ45, SD Card, USB 3.0 |
| Bezel Width | 66.4 mm (T/B), 31.0 mm (L/R) |
|---|---|
| Monitor Dimension (W x H x D) | 745.3 x 1,345.4 x 160.0 mm |
| Weight (Head) | 70 kg |
| Operation Temperature | -30 °C to 50 °C |
|---|---|
| Operation Humidity | 5 % to 100 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Safety | UL / cUL / CB |
|---|---|
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | No / No |
| OPS type compatible | No |
|---|---|
| External Media player Attatchable | No |
| Content Management Software | SuperSign Premium |
|---|---|
| Control and Monitoring Software | SuperSign C |
| Basic | Remote controller, EIG, ESG, Regulation book, Phone to RS232C gender, USB cable, HDMI cable |
|---|---|
| Optional | Media player (driven by customer), Enclosure Stand (ST-550X) |
