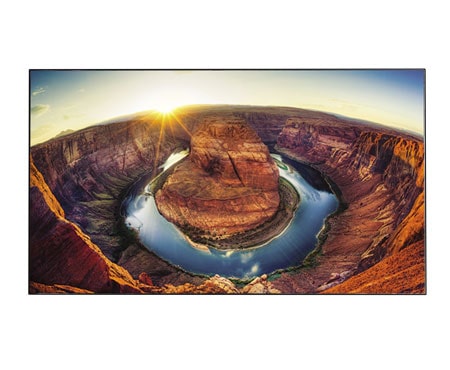

LG Slim Bezel Full HD Display, Brightness 700cd/m², 24/7 Operation, 55VH7B
- SKU: 55VH7B
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Narrowest Bezel Borderless design with its 0.9mm even panel bezel* enables immersive and seamless viewing experiences on assembled video wall screens. Uniform Brightness LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may... See More
OVERVIEW
Narrowest Bezel
Borderless design with its 0.9mm even panel bezel*
enables immersive and seamless viewing experiences
on assembled video wall screens.
Uniform Brightness
LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VH7B generates high visibility and a consistent brightness across the whole screen.
Clear Viewing Angle
The VH7B ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.
Shine Out
The VH7B is the perfect fi t for window displays because it
refl ects sunlight for better visibility and a clearer image than conventional panels.
LAN Daisy Chain Performance
A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.
Customer App
Download and experience the Video Wall Configurator as a simulation tool for your Video Wall installation.
SPECIFICATIONS
| Screen Size | 55" |
|---|---|
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 700 |
| HDMI | Yes (1), HDMI /HDCP2.2 |
|---|---|
| DP | Yes (1), DP1.2a/HDCP1.3 |
| DVI-D | Yes (1), HDCP2.2 |
| Analog (RGB) | Yes (1) |
| Audio In | Yes (1) |
| External Control (RS232C IN) | Yes (1) |
| External Control (RJ45) | Yes (1) |
| External Control (IR receiver) | Yes (1) |
| External Control (Pixel Sensor) | - |
| USB (USB3.0/USB2.0) | Yes (1) / Yes (1) |
| SD Card (SDHC/Full Size) | - |
| DP Out | Yes (1), DP1.2a/HDCP1.3 |
|---|---|
| Audio Out | Yes (1) |
| Externel Speaker Out | - |
| External Control (RS232C OUT) | Yes (1) |
| External Control (RJ45) | Yes (1) |
| Bezel Width (B to B) | 0.9 (top/bottom/left/right even bezel) mm (1.8mm) * B to B : Panel Bezel + Panel Bezel |
|---|---|
| Monitor Dimension (W x H x D) | 1,211.4mm X 682.2mm X 86.5mm |
| Weight (Head) | 18.6kg |
| VESA™ Standard Mount Interface | 600mm x 400mm |
| OPS type compatible | Yes |
|---|---|
| External Media player Attatchable | Yes (MP500/MP700) |
| SuperSign-w lite | Yes |
|---|---|
| SuperSign-c | Yes |
| Basic | Remote Controller, Power cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw |
|---|---|
| Optional | Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSA), HD Base T (EB-B100) |
| Region | Global |
|---|
No datasheet available.
