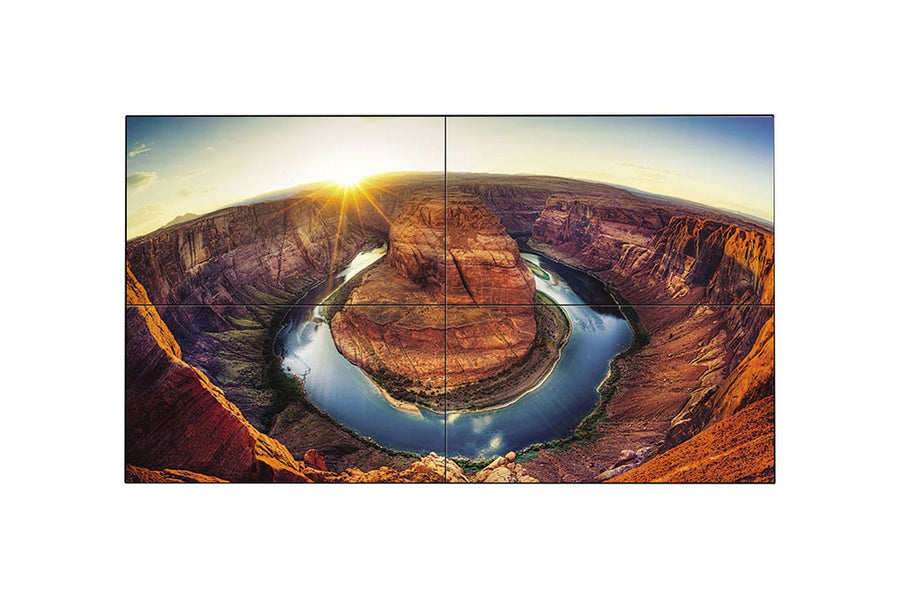

LG Borderless Design Narrow Bezel Full HD 49" Display, Brightness 700 cd/m2, 49VH7C
- SKU: 49VH7C
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW Borderless Design Narrow BezelBorderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verifi ed by Nemko***, enables immersive and seamless viewing experiences on assembled video wall screens. Built-in SoC* and Synced Playback The optimized built-in quad-core SoC in... See More
OVERVIEW
Borderless Design
Narrow Bezel
Borderless design with its 0.9mm even panel bezel* and 1.8mm BtB(Bezel to Bezel)** size, verifi ed by Nemko***, enables immersive and seamless viewing experiences on assembled video wall screens.
Built-in SoC* and Synced Playback
The optimized built-in quad-core SoC in the 55VH7B/VM5B can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.
webOS 2.0
The webOS 2.0 platform provides easy and convenient tools to create contents. LG’s SDK* and technical supports make content development and management easier.
Clear Viewing Angle
The 49VH7C ensures clear picture quality even when installed in stacks of more than four. This is very favorable for the quantity of video walls installed in large spaces.
Uniform Brightness
LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new 49VH7C generates high visibility and a consistent brightness across the whole screen.
Video Wall Image Creation
Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.
Image Gap Reduction
The 55VH7B/VM5B, 49VH7C/VM5C includes an image improvement algorithm that can adjust to objects located in the boundary of bezel for a seamless viewing experience.
Enhanced Content Management
LAN Daisy Chain Performance
A LAN daisy chain allows you to execute commands to control and monitor the screens and even update their firmware.
SPECIFICATIONS
| Screen Size | 49" |
|---|---|
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 700 |
| Input | HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB |
|---|---|
| Output | DP, Audio |
| External Control | RS232C, RJ45, IR Receiver |
| Bezel Width | 0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel |
|---|---|
| Monitor Dimension (W x H x D) | 1,075.6 x 605.8 x 86.2 mm |
| Weight (Head) | 17.5 kg |
| VESA™ Standard Mount Interface | 600 x 400mm |
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Safety | UL / cUL / CB / TUV / KC |
|---|---|
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| OPS type compatible | Yes |
|---|---|
| External Media player Attatchable | Yes (MP500/MP700) |
| SuperSign-w lite | Yes |
|---|---|
| SuperSign-c | Yes |
| Basic | Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws |
|---|---|
| Optional | Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100) |
No datasheet available.
