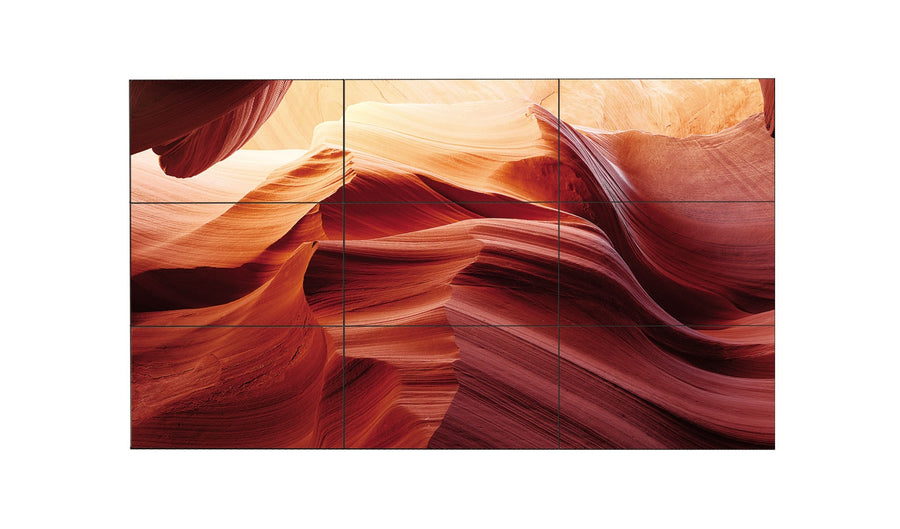

LG 55" Class Full HD Commercial LED Monitor 55LV77A-7B
- SKU: 55LV77A-7B
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW The black LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor is suitable for placement in video-walls and brightly-lit environments. This business-ready monitor features a hard-coated, anti-glare 55"-class IPS LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images... See More
OVERVIEW
The black LG 55LV77A-7B 55"-Class Full HD Commercial LED Monitor is suitable for placement in video-walls and brightly-lit environments. This business-ready monitor features a hard-coated, anti-glare 55"-class IPS LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 700 cd/m² brightness rating and 1400:1 contrast ratio showcases its ability to handle light and dark on-screen images. For viewing flexibility it can also accommodate portrait and landscape viewing orientations.
As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as control rooms, broadcast studios, and retail environments. This display is equipped with VGA, DVI, DisplayPort, and HDMI ports for connecting a variety of video sources. Daisy chaining is also supported via DisplayPort connectivity. While this monitor doesn't include a table stand, it is VESA 600 x 400 compliant for wall mounting. Furthermore, this display features a combined 3.5mm bezel design for seamless video-wall integration.
Daisy-Chain Support
- DisplayPort 1.2 connectors enable UHD content playback on 4K video walls in 2 x 2 display configurations.
TruMotion 60 Hz Refresh Rate
- TruMotion 60Hz refresh rate is designed to reduce motion blur and judder, ensuring vivid image details.
SuperSign V Software
-
- Video walls are easily configured using included templates
- Rotate, cut, and edit content in desired layout
- Content can be scheduled based on time and day
- Ability to distribute content to media players
SuperSign C Software (Free Download)
- The intuitive GUI in SuperSign C software allows simple measurement and adjustment of display settings instantly. You can also employ automatic white balancing of a video-wall display by using a sensor (sold separately).
Remotely Monitor and Control
- SuperSign C software allows offers intuitive GUI-based remote monitoring and control via LAN and RS232 connection.
Shine-Out Ambient Light Reflection
- This feature allows the monitor to be suitable for window display by reflecting away ambient light for increased image visibility and clear images in bright lighting environments.
Additional Features
-
- 90% brightness uniformity rating
- SuperSign Elite-c and Elite-w lite compatible
- Brightness, contrast, and backlight adjustment
- Position/Size
- Temperature sensor
- ISM Method: Normal, Orbiter, Inversion, White wash
- Auto config/phase
- Smart energy saving
- Auto power/Source memory
- PIP/PBP
- Tile Mode: Up to 15 x 15 (natural mode)
- Tile Play with USB
- Input label
- DPM select
SPECIFICATIONS
General | |
|---|---|
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes |
Surface | |
|---|---|
| Hardness Rating | 3H |
| Haze Level | 10% |
Convenience | |
|---|---|
| Picture in Picture (PIP) | Yes |
Electrical | |
|---|---|
| Power Consumption | Typical: 230.0 W Economy Mode: 120.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental | |
|---|---|
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical | |
|---|---|
| Wall Mounting | 600 x 400 mm |
| Bezel Thickness | 1.25 mm (Bottom) 1.25 mm (Right) 2.25 mm (Top) 2.25 mm (Left) |
| Dimensions | 47.8 x 27.0 x 3.5" / 121.4 x 68.6 x 8.9 cm |
| Weight | 51.1 lb / 23.2 kg |
