IIYAMADigital SignageSKU ProLite LH7565UHSB-B1

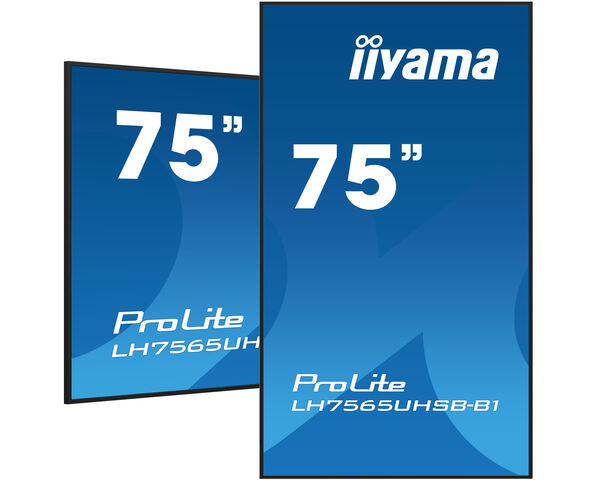

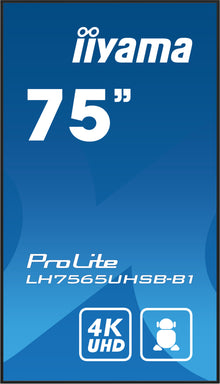

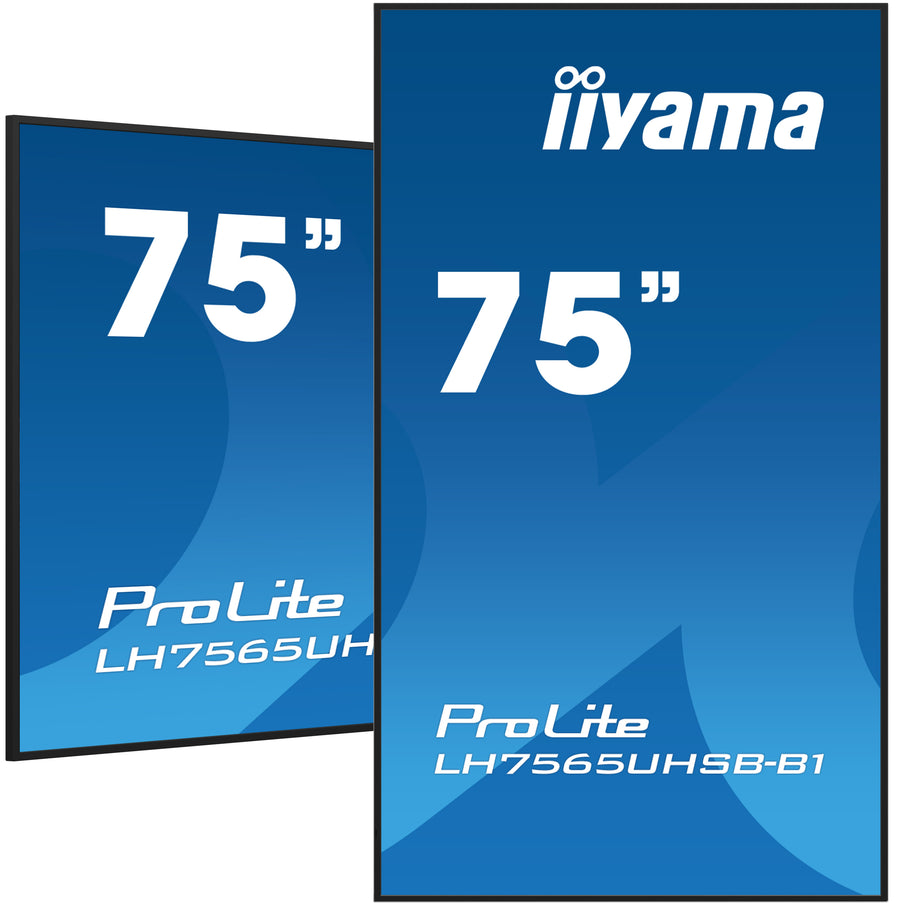

IIYAMA 75" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication – ProLite LH7565UHSB-B1
The IIYAMA 75" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication – ProLite LH7565UHSB-B1 is a digital signage available in the UAE from Procure.ae.
Experience exceptional clarity and brightness with the IIYAMA 75" Vivid-Bright Display , model ProLite LH7565UHSB-B1 . This advanced 4K UHD commercial display is engineered for illuminating communication in any professional environment, featuring a remarkable 800cd/m² brightness panel. With its expansive 75-inch screen and ultra-high definition resolution, your content will be displayed in stunning detail and vibrant color, making it ideal for digital signage , conference rooms , and corporate presentations . The robust construction and sleek design ensure reliable performance and seamless.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
800 nits
Weight
29 kg
- 75-Inch 4K UHD Screen
- 800cd/m² Brightness
- Durable Commercial-Grade Panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-Inch 4K UHD Screen
Expansive display area with ultra-high definition for crystal-clear visuals.
02
800cd/m² Brightness
Outstanding brightness ensures vivid images, even in brightly lit environments.
03
Durable Commercial-Grade Panel
Built for 24/7 operation and long-lasting performance.
04
Sleek, Modern Design
Slim bezels provide a professional look suitable for any setting.
05
Comprehensive Connectivity
Includes HDMI, DisplayPort, and USB inputs for versatile usage.
06
Integrated Speakers
Delivers clear audio for presentations and digital signage.
07
Smart Scheduling
Advanced timer settings optimize energy use and display schedules.
08
Landscape & Portrait Modes
Flexible installation options for various applications.
Specifications
36 specificationsGeneral
Key FeaturesSignal FailOver, iiSignage2, EShare, Fanless design
What's in the BoxPower cable, HDMI cable, RS-232C cable, Quick start guide, Safety guide, Stickers for screw holes, Adhesive clips for cable management, AC switch cover, Remote control (batteries included)
Display
Aspect Ratio16:9
Bezel Size14.9 mm
Blue Light FilterYes
Brightness800 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut72% (NTSC)
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorARM 4x Cortex-A73 + 4x Cortex-A53
RAM4 GB
Storage32 GB
Audio
Audio Out3.5 mm audio out × 1
DisplayPortDisplayPort × 1
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB × 2
Wi-FiBuilt-in
Power
Power Consumption107 W
Standby Power0.5 W
Physical
Dimensions1679.5 x 958.5 x 55 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1883 x 1140 x 186 mm
VESA Mount600 x 400 mm
Weight29 kg
Downloads
Manufacturer documents for the IIYAMA 75" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication – ProLite LH7565UHSB-B1 — datasheets, manuals, drawings and certificates.
- Datasheet – LH7565UHSB-B1
- User manual – LHxx65UHSB series
- Drawing – LH7565UHSB-B1
- Control protocol (RS232 / LAN) – iiyama LHxx65UHSB series / LHxx75UHS series
- Certificate / compliance – LH7565UHSB-B1
- Energy label – LH7565UHSB-B1
- Energy label – LH7565UHSB-B1
- Energy label – LH7565UHSB-B1
- EShare Network Requirements v7.4-e
- ii iisignage2 whitepaper A4 EN (09.23)
Questions
Can’t find your answer? Ask on WhatsApp
What is the IIYAMA digital signage used for?
Experience exceptional clarity and brightness with the IIYAMA 75" Vivid-Bright Display , model ProLite LH7565UHSB-B1 . This advanced 4K UHD commercial display is engineered for illuminating communication in any professional environment, featuring a remarkable 800cd/m² brightness panel. With its.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
