IIYAMADigital SignageSKU ProLite T6529AS-B1AG

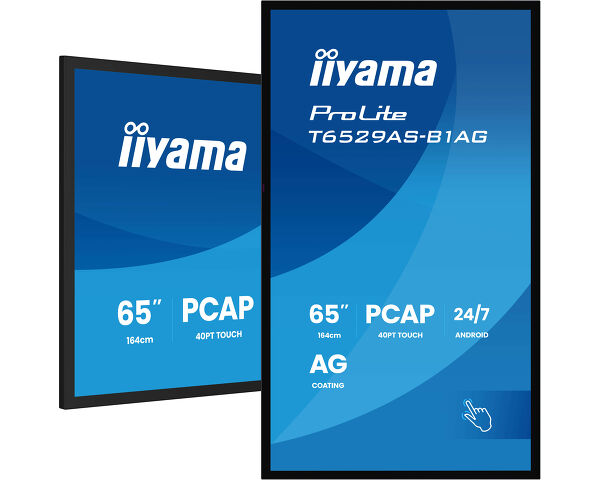

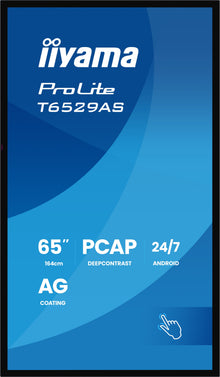

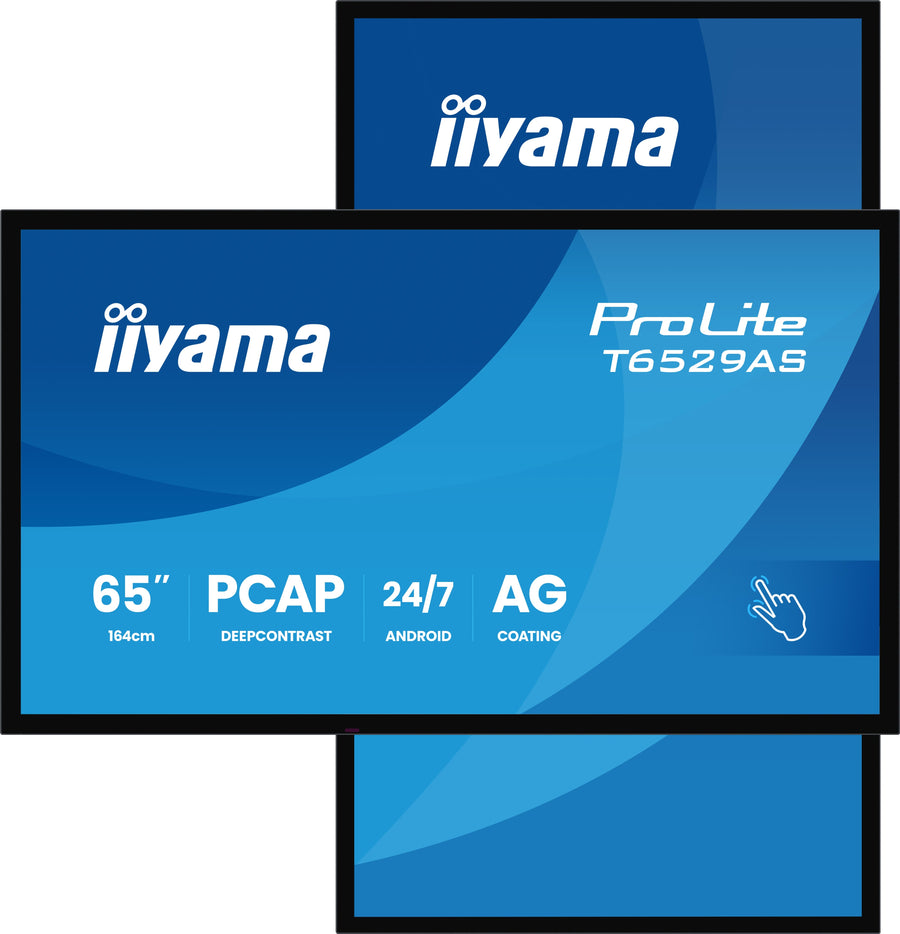

IIYAMA 65" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T6529AS-B1AG
The IIYAMA 65" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T6529AS-B1AG is a digital signage available in the UAE from Procure.ae.
Upgrade your collaboration environment with the IIYAMA 65" All-in-One PCAP Interactive Display – the ProLite T6529AS-B1AG is designed for smart collaboration spaces , making it ideal for modern meeting rooms and classrooms. This advanced interactive display features cutting-edge PCAP touch technology for seamless multi-touch interaction, ensuring presentations and brainstorming sessions are engaging and productive. With its ultra-large 65-inch 4K UHD screen , this all-in-one solution delivers vibrant visuals and crystal-clear detail, perfect for displaying complex data or creative content.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
420 nits
Touch Technology
PCAP
- 65-inch 4K UHD Display
- PCAP Multi-Touch Technology
- Integrated Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD Display
Offers stunning image clarity and ample screen space for group viewing and detailed presentations.
02
PCAP Multi-Touch Technology
Enables precise and responsive 20-point touch for collaborative teamwork.
03
Integrated Android OS
Provides built-in access to popular apps, easy updates, and intuitive navigation.
04
All-in-One Functionality
Combines display, touch, and computing power in a single device for hassle-free setup.
05
Anti-Glare Glass
Reduces reflections, ensuring comfortable viewing in brightly lit spaces.
06
Wireless Screen Sharing
Supports casting from multiple devices for flexible presentations and teamwork.
07
Robust Connectivity
Features HDMI, USB, LAN, and Wi-Fi ports for seamless device integration.
08
Secure User Profiles
Enables customizable and secure access for different teams or users.
Specifications
37 specificationsGeneral
Key FeaturesPCAP touchscreen, Android OS, USB-C Loop Through, Anti-Glare Glass, Edge to edge glass, EShare app, iiSignage², iiControl, iiShare, Whiteboard, Fanless design, Magnetic holding places for Touch pens
What's in the BoxPower, HDMI, RS-232c, Touch pen × 2, Quick start guide, Safety guide, Wall Mounting Bracket, Remote control (batteries included)
Display
Aspect Ratio16:9
BacklightEdge LED
Blue Light FilterYes
Brightness420 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio4,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Accuracy±2.5 mm
Touch Points20-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 14
ProcessorMediaTek MT9679
RAM4 GB
Storage32 GB
Audio
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
USB PortsUSB 2.0 × 2
USB-C PortsUSB-C × 1
Wi-FiBuilt-in
Power
Power Consumption118 W
Standby Power0.5 W
Physical
Dimensions1447.3 x 852.3 x 42.8 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1645 x 1050 x 192 mm
VESA Mount400 x 400 mm
Weight38.5 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus
Downloads
Manufacturer documents for the IIYAMA 65" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T6529AS-B1AG — datasheets, manuals, drawings and certificates.
- Datasheet – T6529AS-B1AG
- Brochure – Txx29AS series
- User manual – Txx29AS series
- Installation guide – Txx29AS series
- Drawing – T6529AS-B1AG
- Control protocol (RS232 / LAN) – iiyama LHxx66UHSB series / LHxx81UHSG series / Txx29AS series
- Certificate / compliance – T6529AS-B1AG
- Energy label – T6529AS-B1AG
- Energy label – T6529AS-B1AG
- Warranty – T6529AS-B1AG
- EShare Network Requirements v7.4-e
- ii iisignage2 whitepaper A4 EN (09.23)
