IIYAMADigital SignageSKU ProLite LH6564UHS-B1AG

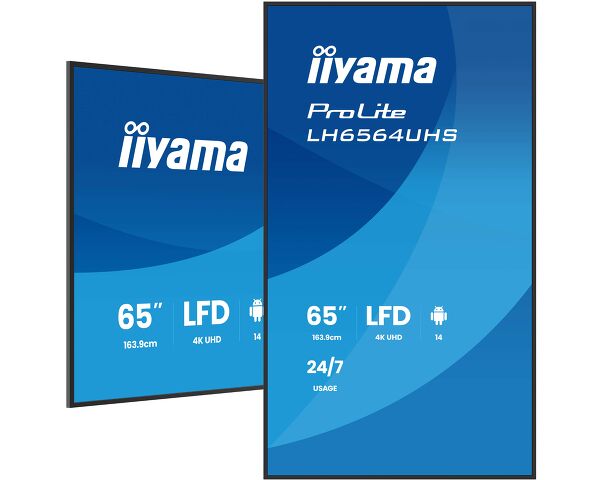

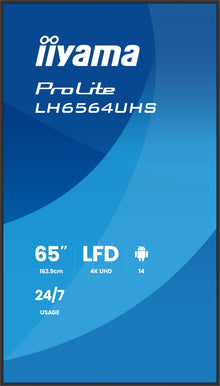

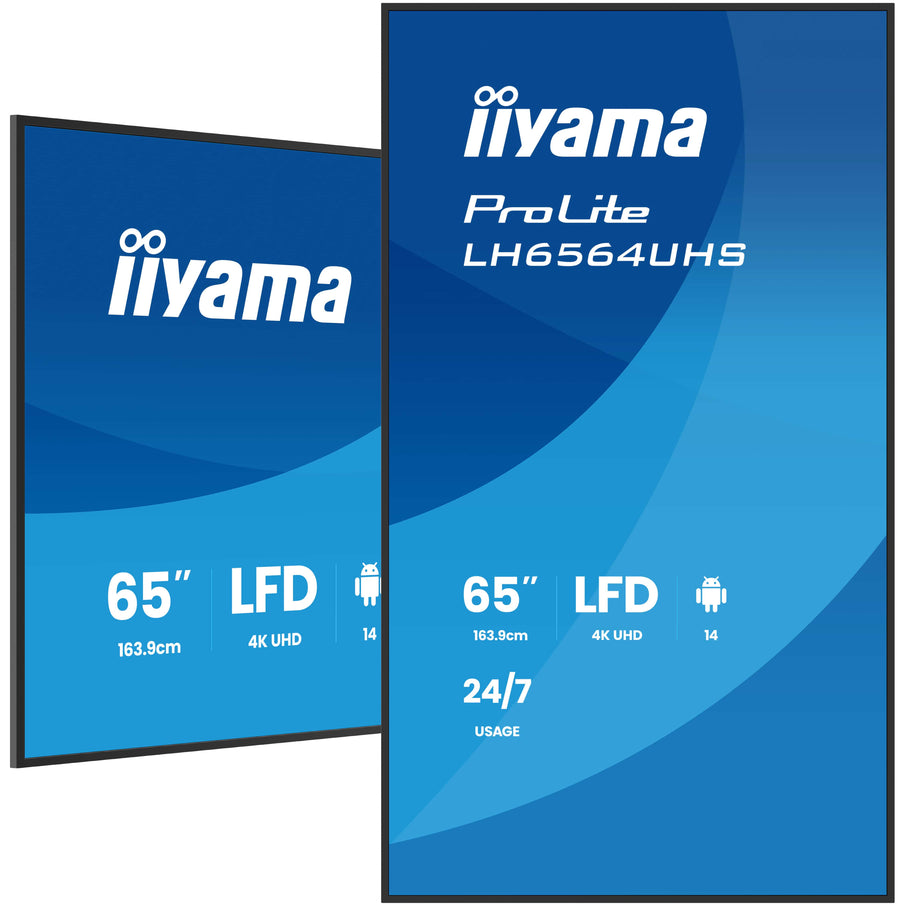

IIYAMA 65" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH6564UHS-B1AG
The IIYAMA 65" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH6564UHS-B1AG is a digital signage available in the UAE from Procure.ae.
The IIYAMA 65" 4K UHD Most powerful professional digital signage display , model ProLite LH6564UHS-B1AG , delivers exceptional performance and stunning clarity for any business environment. Engineered for maximum impact, this 4K UHD digital signage display boasts advanced control and connectivity options, making it ideal for corporate communications , retail advertising , and public information displays. With a robust design and anti-glare technology , content remains visible and vibrant in any lighting condition. The ProLite LH6564UHS-B1AG supports 24/7 operation, ensuring round-the-clock.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Weight
17.7 kg
- 65" 4K UHD Display
- Advanced Connectivity
- Anti-Glare Coating
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65" 4K UHD Display
Crisp, ultra-high-definition resolution for vibrant and detailed visuals.
02
Advanced Connectivity
Multiple HDMI, DisplayPort, and USB ports for flexible integration.
03
Anti-Glare Coating
Ensures clear visibility in bright environments or under direct lighting.
04
24/7 Operation
Built for continuous, reliable use in commercial settings.
05
Remote Management
Easily control and monitor displays via network or software solutions.
06
Slim Bezel Design
Modern appearance suitable for any professional interior.
07
Integrated Speakers
Delivers clear audio without the need for external sound systems.
08
Media Playback Support
Play videos, images, and presentations directly from USB devices.
Specifications
36 specificationsGeneral
Key FeaturesAndroid 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager, Anti image retention, Media playback, Fanless design, Thin bezel, 24/7 operation
What's in the BoxPower cable, HDMI cable, RS-232c cable, Quick start guide, Safety guide, Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes, Remote control (batteries included)
Display
Aspect Ratio16:9
Bezel Size12.8 mm
Brightness500 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut72% (NTSC)
Contrast Ratio5,000:1
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 14
ProcessorARM 4x Cortex-A73
RAM4 GB
Storage32 GB
Audio
Audio Out3.5 mm audio out × 1
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB 2.0 × 2
USB-C PortsUSB-C × 1 (DP Alt Mode, 15 W charging)
Wi-FiBuilt-in
Power
Power Consumption184 W
Standby Power0.5 W
Physical
Dimensions1457.7 x 832.4 x 68.8 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1640 x 990 x 164 mm
Surface ProtectionAnti-glare, matte finish
VESA Mount500 x 500 mm
Weight17.7 kg
Downloads
Manufacturer documents for the IIYAMA 65" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH6564UHS-B1AG — datasheets, manuals, drawings and certificates.
- Datasheet – LH6564UHS-B1AG
- User manual – iiyama LExx64UHS series / LHxx64UHS series
- Drawing – LH6564UHS-B1AG
- Control protocol (RS232 / LAN) – LHxx64UHS series
- Certificate / compliance – LH6564UHS-B1AG
- Energy label – LH6564UHS-B1AG
- Energy label – LH6564UHS-B1AG
- Warranty – LH6564UHS-B1AG
- ii iisignage2 whitepaper A4 EN (09.23)
Questions
Can’t find your answer? Ask on WhatsApp
What is the IIYAMA digital signage used for?
The IIYAMA 65" 4K UHD Most powerful professional digital signage display , model ProLite LH6564UHS-B1AG , delivers exceptional performance and stunning clarity for any business environment. Engineered for maximum impact, this 4K UHD digital signage display boasts advanced control and connectivity.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
