IIYAMADigital SignageSKU ProLite TF5539AS-B1AG

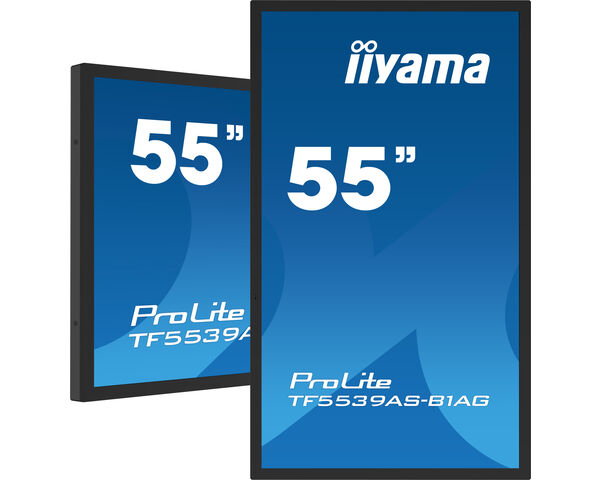

IIYAMA 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF5539AS-B1AG
The IIYAMA 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF5539AS-B1AG is a digital signage available in the UAE from Procure.ae.
The IIYAMA 55" All-in-One PCAP Interactive Display (ProLite TF5539AS-B1AG) redefines collaborative environments with its advanced technology and sleek design. Perfect for creative spaces , boardrooms, and classrooms, this interactive display offers a seamless touchscreen experience thanks to its PCAP technology . With a generous 55-inch display, it delivers vibrant visuals and responsive touch for effortless sharing and engaging presentations. Its robust build and anti-glare screen are ideal for both professional and educational settings, ensuring visibility in any lighting. The all-in-one.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
54.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
435 nits
Touch Technology
PCAP
- 55-Inch PCAP Touchscreen
- All-in-One Design
- 4K UHD Resolution
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
55-Inch PCAP Touchscreen
Offers a large, ultra-responsive touch surface for engaging, multi-user interaction.
02
All-in-One Design
Integrated computing delivers plug-and-play simplicity without the need for external devices.
03
4K UHD Resolution
Crystal-clear visuals ensure detailed presentations and stunning multimedia display quality.
04
Anti-Glare Coating
Reduces reflections for excellent visibility in bright rooms and open spaces.
05
Robust Build Quality
Engineered for durability in high-traffic commercial and educational environments.
06
Multi-Touch Capability
Supports simultaneous input, making it ideal for collaborative teamwork and brainstorming.
07
Flexible Mounting Options
Can be wall-mounted or integrated into custom installations for versatile use.
08
Seamless Connectivity
Equipped with multiple ports for easy connection to devices and peripherals.
Specifications
41 specificationsGeneral
Key FeaturesPCAP Touchscreen, Edge to edge glass, Touch Through-Glass, iiSignage² CMS, EShare App, Kiosk mode, Anti image retention, IP65 (front), Metal housing
What's in the BoxPower cable (1.8m), USB cable (1.8m), HDMI cable (1.8m), Quick start guide, Safety guide, Cable cover, Remote control (batteries included)
Display
Aspect Ratio16:9
BacklightLED
Bezel Size30 mm
Blue Light FilterYes
Brightness435 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut72% NTSC
Contrast Ratio1,200:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size54.6 inch
Touch Accuracy±2.5 mm
Touch Points40-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorARM 4x Cortex-A73 + 4x Cortex-A53
RAM4 GB
Storage32 GB
Audio
Audio Out3.5 mm audio out × 1
DisplayPortDisplayPort × 1
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 2
Power
Power Consumption139 W
Standby Power0.5 W
Physical
Dimensions1274 x 744.8 x 65.2 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1428 x 894 x 185 mm
Surface ProtectionAnti-glare, matte finish
VESA Mount400 x 400 mm
Weight39.6 kg
Downloads
Manufacturer documents for the IIYAMA 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF5539AS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the IIYAMA digital signage used for?
The IIYAMA 55" All-in-One PCAP Interactive Display (ProLite TF5539AS-B1AG) redefines collaborative environments with its advanced technology and sleek design. Perfect for creative spaces , boardrooms, and classrooms, this interactive display offers a seamless touchscreen experience thanks to its.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
