IIYAMADigital SignageSKU ProLite T5529AS-B1AG

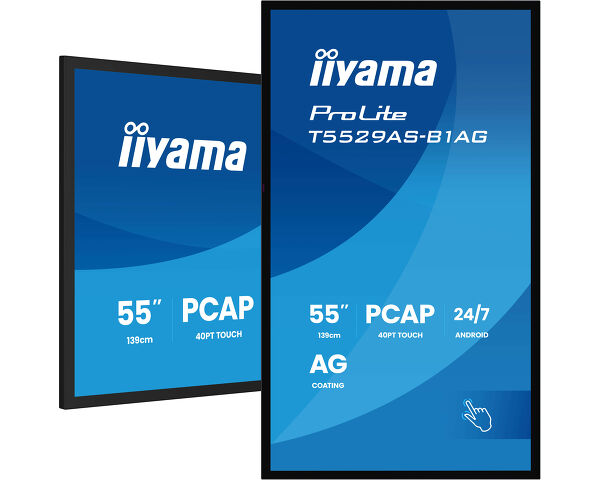

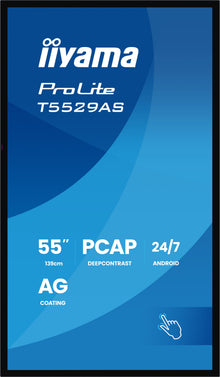

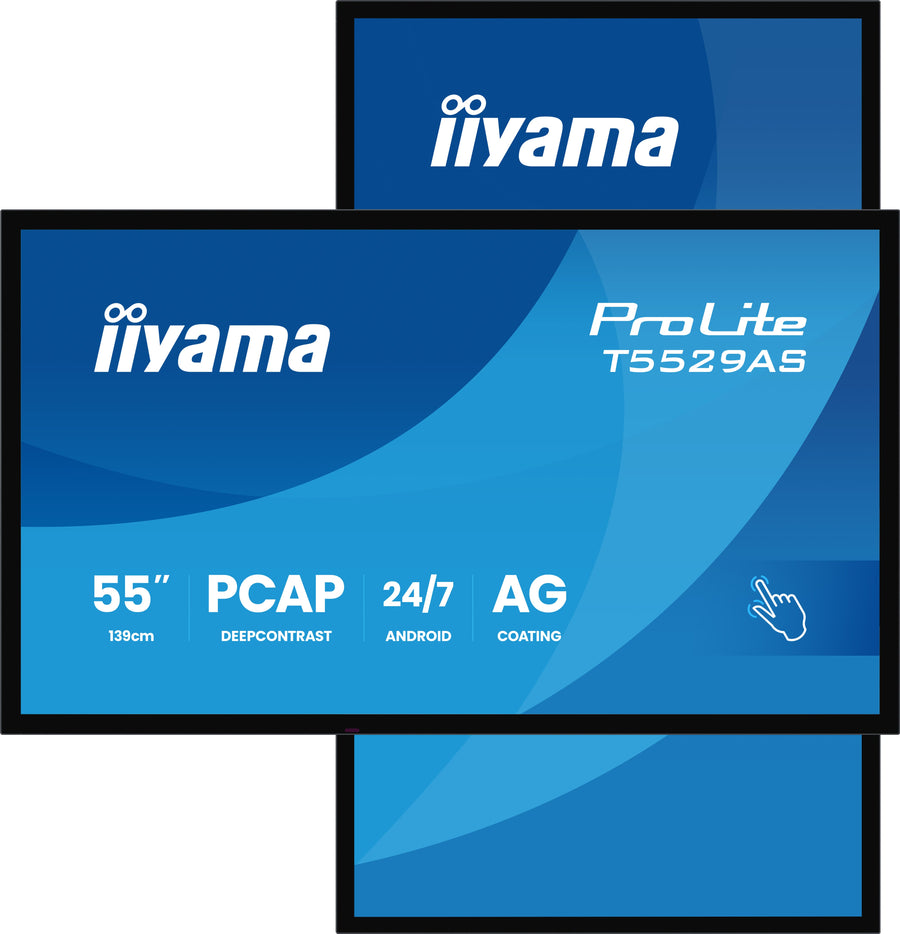

IIYAMA 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T5529AS-B1AG
The IIYAMA 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T5529AS-B1AG is a digital signage available in the UAE from Procure.ae.
Transform your meeting rooms and collaborative environments with the IIYAMA 55" All-in-One PCAP Interactive Display , model ProLite T5529AS-B1AG . This advanced interactive display is designed for smart collaboration spaces , making it the perfect solution for modern offices, educational institutions, and creative studios. Featuring PCAP touch technology , the 55-inch touchscreen delivers ultra-responsive and precise interactions, supporting seamless presentations and brainstorming sessions. The all-in-one design ensures effortless integration, while the anti-glare coating enhances visibility.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
PCAP
- 55" 4K UHD Display
- PCAP Touch Technology
- All-in-One Solution
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
55" 4K UHD Display
Provides sharp, vibrant visuals with 3840x2160 resolution for detailed presentations.
02
PCAP Touch Technology
Offers seamless 20-point multi-touch for precise and intuitive interactivity.
03
All-in-One Solution
Integrates computing power and connectivity for a clutter-free installation.
04
Anti-Glare Glass
Minimizes reflections and ensures clear visibility from any angle.
05
Smart Collaboration Tools
Built-in software supports annotation, screen sharing, and real-time collaboration.
06
Robust Connectivity
Includes HDMI, USB, LAN, and wireless options for versatile device integration.
07
Durable Design
Engineered for heavy, daily use in business and educational environments.
08
Integrated Speakers
Delivers high-quality audio for multimedia presentations and video conferencing.
Specifications
37 specificationsGeneral
Key FeaturesEdge to edge glass, Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonde, DeepContrast PCAP, USB-C Loop Through, iiSignage², iiControl, iiShare, EShare, Fanless design, Magnetic holding places for Touch pens
What's in the BoxPower cable, HDMI cable, RS-232C cable, Touch pen × 2, Quick start guide, Safety guide, Wall Mounting Bracket, Remote control (batteries included)
Display
Aspect Ratio16:9
BacklightDirect LED
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio4,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Touch Accuracy±2.5 mm
Touch Points20-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 14
ProcessorMediaTek MT9679
RAM4 GB
Storage32 GB
Audio
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
USB PortsUSB 2.0 × 2
USB-C PortsUSB-C × 1
Wi-FiBuilt-in
Power
Power Consumption104 W
Standby Power0.5 W
Physical
Dimensions1258.2 x 728.8 x 42.3 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1400 x 850 x 164 mm
VESA Mount300 x 400 mm
Weight26.8 kg
Compliance
CertificationsCB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus
Downloads
Manufacturer documents for the IIYAMA 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces – ProLite T5529AS-B1AG — datasheets, manuals, drawings and certificates.
- Datasheet – T5529AS-B1AG
- Brochure – Txx29AS series
- User manual – Txx29AS series
- Installation guide – Txx29AS series
- Drawing – T5529AS-B1AG
- Control protocol (RS232 / LAN) – iiyama LHxx66UHSB series / LHxx81UHSG series / Txx29AS series
- Certificate / compliance – T5529AS-B1AG
- Energy label – T5529AS-B1AG
- Energy label – T5529AS-B1AG
- Warranty – T5529AS-B1AG
- EShare Network Requirements v7.4-e
- ii iisignage2 whitepaper A4 EN (09.23)
