IIYAMADigital SignageSKU ProLite LH5564UHS-B1AG

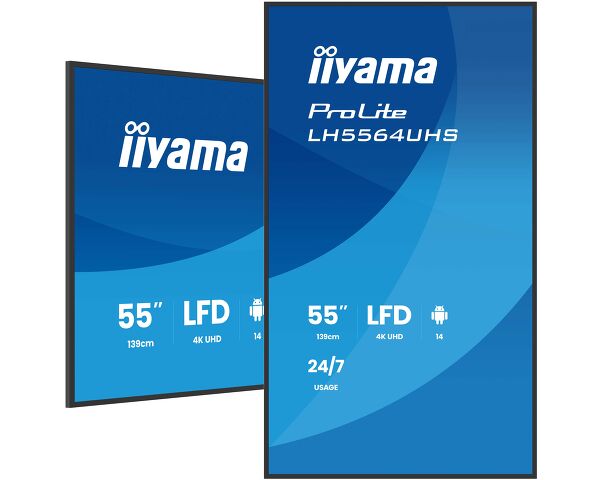

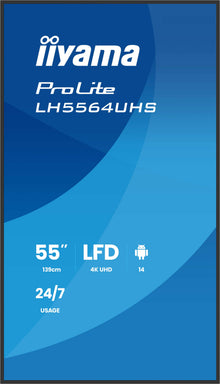

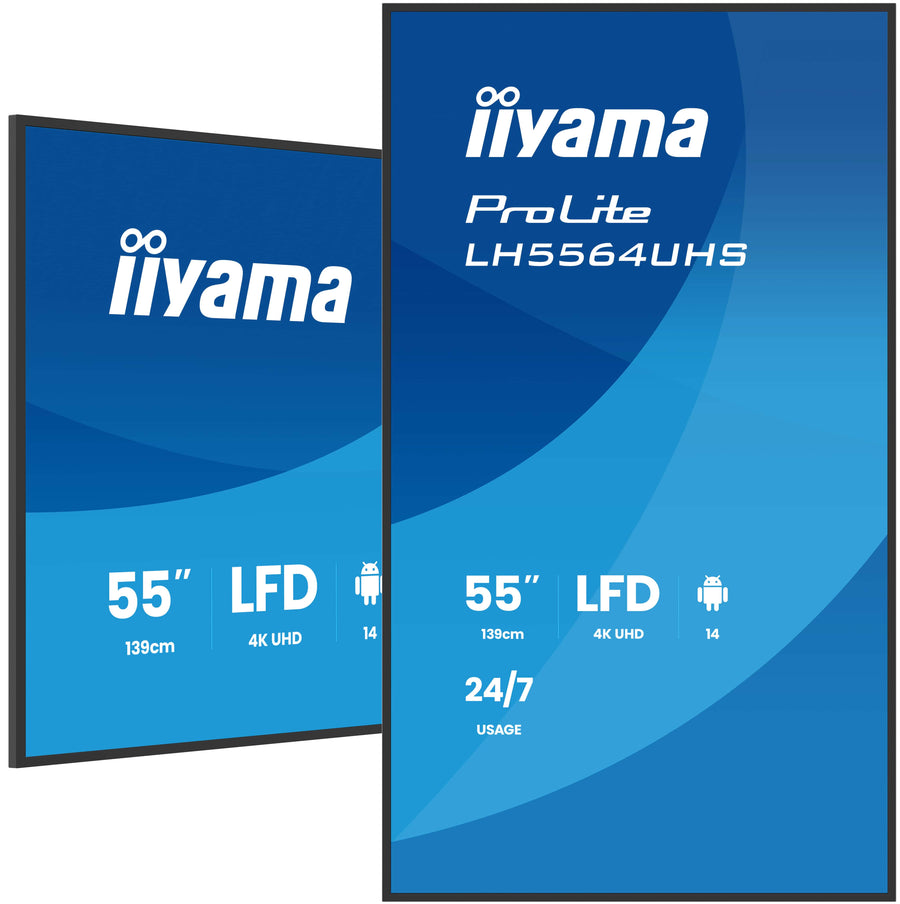

IIYAMA 55" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH5564UHS-B1AG
The IIYAMA 55" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH5564UHS-B1AG is a digital signage available in the UAE from Procure.ae.
Experience unrivaled clarity and performance with the IIYAMA 55" 4K UHD professional digital signage display , model ProLite LH5564UHS-B1AG . Designed for demanding commercial environments, this advanced display delivers breathtaking Ultra HD resolution and seamless connectivity options for effortless integration. With cutting-edge control features and robust construction, the ProLite LH5564UHS-B1AG is ideal for retail digital signage , corporate communications , and public information displays . Enjoy vibrant colors, anti-glare technology, and 24/7 operation, making this professional monitor.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Weight
13 kg
- Ultra HD 4K Resolution
- Advanced Connectivity
- Powerful Control Options
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra HD 4K Resolution
Delivers crystal-clear visuals with 3840 x 2160 pixels for stunning detail.
02
Advanced Connectivity
Multiple HDMI, DisplayPort, and USB ports for flexible integration.
03
Powerful Control Options
Remote management via LAN and RS232 for easy monitoring and adjustments.
04
Anti-Glare Coating
Minimizes reflections for optimal visibility in bright environments.
05
24/7 Commercial Operation
Engineered for continuous use, ensuring reliability in high-demand settings.
06
Robust Build Quality
Durable construction designed for intensive public and professional use.
07
Energy-Efficient Performance
Reduces power consumption without compromising display quality.
08
Slim Bezel Design
Maximizes screen area and delivers a modern, sleek appearance.
Specifications
37 specificationsGeneral
Key FeaturesAndroid 14 OS, iiSignage² (CMS), iiControl (DMS), iiShare (Wireless Presentation), FailOver, Fanless design, Anti image retention, Media playback, Thin bezel, 24/7 operation
What's in the BoxPower cable, HDMI cable, RS-232c cable, Quick start guide, Safety guide, Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes, Remote control (batteries included)
Display
Aspect Ratio16:9
Bezel Size12.8 mm
Brightness500 nits
Color Depth10-bit (1.07 billion colours)
Color Gamut72% NTSC
Contrast Ratio5,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 14
ProcessorARM 4x Cortex-A73
RAM4 GB
Storage32 GB
Audio
Audio Out3.5 mm audio out × 1
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB 2.0 × 2
USB-C PortsUSB-C × 1 (DP Alt Mode, 15 W charging)
Wi-FiBuilt-in
Power
Power Consumption135 W
Standby Power0.5 W
Physical
Dimensions1238.4 x 709.2 x 70 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions1390 x 830 x 144 mm
Surface ProtectionAnti-glare, matte finish, haze 25%
VESA Mount400 x 400 mm
Weight13 kg
Downloads
Manufacturer documents for the IIYAMA 55" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options – ProLite LH5564UHS-B1AG — datasheets, manuals, drawings and certificates.
- Datasheet – LH5564UHS-B1AG
- User manual – iiyama LExx64UHS series / LHxx64UHS series
- Drawing – LH5564UHS-B1AG
- Control protocol (RS232 / LAN) – LHxx64UHS series
- Certificate / compliance – LH5564UHS-B1AG
- Energy label – LH5564UHS-B1AG
- Energy label – LH5564UHS-B1AG
- Warranty – LH5564UHS-B1AG
- ii iisignage2 whitepaper A4 EN (09.23)
Questions
Can’t find your answer? Ask on WhatsApp
What is the IIYAMA digital signage used for?
Experience unrivaled clarity and performance with the IIYAMA 55" 4K UHD professional digital signage display , model ProLite LH5564UHS-B1AG . Designed for demanding commercial environments, this advanced display delivers breathtaking Ultra HD resolution and seamless connectivity options for.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
