IIYAMADigital SignageSKU ProLite TF3239AS-B1AG

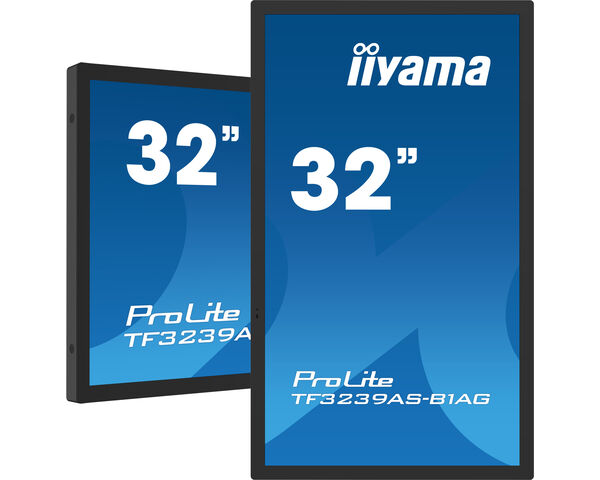

IIYAMA 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF3239AS-B1AG
The IIYAMA 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF3239AS-B1AG is a digital signage available in the UAE from Procure.ae.
The IIYAMA 32" All-in-One PCAP Interactive Display is expertly crafted for modern creative spaces and seamless collaboration . Powered by advanced PCAP touch technology , this ProLite TF3239AS-B1AG delivers an intuitive, ultra-responsive touchscreen experience ideal for interactive presentations, digital signage, and engaging group work. Its expansive 32-inch display ensures vivid visuals and ample space for multitasking, making it perfect for both educational and professional environments. With a robust all-in-one design, this interactive display is built for reliability and easy.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
31.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
435 nits
Touch Technology
PCAP
- 32-Inch Full HD Display
- PCAP Touch Technology
- All-in-One Design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
32-Inch Full HD Display
Provides crisp, clear visuals ideal for presentations and creative projects.
02
PCAP Touch Technology
Offers ultra-responsive, precise 10-point multitouch capability for seamless interaction.
03
All-in-One Design
Combines display and computing power for easy setup and reduced clutter.
04
Anti-Glare Coating
Minimizes reflections for comfortable viewing in brightly lit environments.
05
Robust Connectivity
Features HDMI, USB, and LAN ports for versatile device integration.
06
Durable Construction
Built for reliable performance in busy spaces like classrooms or retail venues.
07
Slim Profile
Modern, space-saving design fits seamlessly into any workspace.
08
Energy Efficient
Low power consumption for sustainable, cost-effective operation.
Specifications
41 specificationsGeneral
Key FeaturesPCAP Touchscreen, Edge to edge glass, Touch Through-Glass, iiSignage² CMS, EShare App, FailOver, Kiosk mode, Anti image retention, IP65 (front), Metal housing, OSD key lock, Remote control lock
What's in the BoxPower cable (1.8m), USB cable (1.8m), HDMI cable (1.8m), Quick start guide, Safety guide, Cable cover, Remote control (batteries included)
Display
Aspect Ratio16:9
BacklightLED
Bezel Size22 mm
Blue Light FilterYes
Brightness435 nits
Color Depth8-bit (16.7 million colours)
Color Gamut72% NTSC
Contrast Ratio1,200:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size31.5 inch
Touch Accuracy±2.5 mm
Touch Points40-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 11
ProcessorARM 4x Cortex-A73 + 4x Cortex-A53
RAM4 GB
Storage32 GB
Audio
Audio Out3.5 mm audio out × 1
DisplayPortDisplayPort × 1
Speaker Output2 × 10 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 2
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 2
Power
Power Consumption50 W
Standby Power0.5 W
Physical
Dimensions746.2 x 440.7 x 62.4 mm
Duty Cycle24/7
Operating Temperature0°C to 40°C
Shipping Dimensions840 x 560 x 149 mm
Surface ProtectionAnti-glare, matte finish
VESA Mount200 x 200 mm
Weight13.2 kg
Downloads
Manufacturer documents for the IIYAMA 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing – ProLite TF3239AS-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the IIYAMA digital signage used for?
The IIYAMA 32" All-in-One PCAP Interactive Display is expertly crafted for modern creative spaces and seamless collaboration . Powered by advanced PCAP touch technology , this ProLite TF3239AS-B1AG delivers an intuitive, ultra-responsive touchscreen experience ideal for interactive presentations,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
