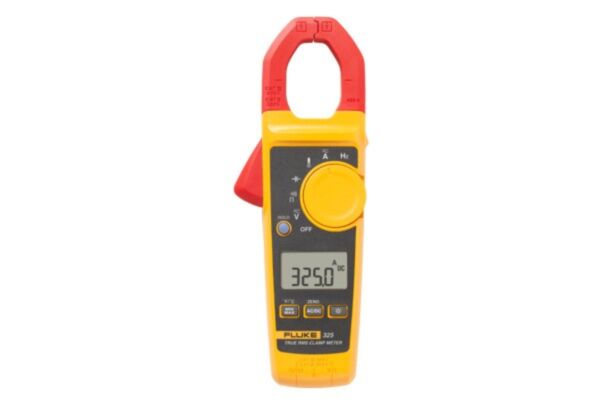

Fluke 325 True RMS Clamp Meter Fluke 325
- SKU: Fluke-325
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke 325 True-RMS Clamp Meter is a compact, professional-grade AC/DC clamp meter with true-RMS measurement for accurate current and voltage readings on non-linear loads in electrical installations across the UAE.The Fluke 325 is a professional clamp meter from Fluke's 320 series — designed... See More
The Fluke 325 True-RMS Clamp Meter is a compact, professional-grade AC/DC clamp meter with true-RMS measurement for accurate current and voltage readings on non-linear loads in electrical installations across the UAE.
The Fluke 325 is a professional clamp meter from Fluke's 320 series — designed for electricians and facilities engineers who need reliable AC and DC current and voltage measurement in a compact form factor. The true-RMS (TRMS) current and voltage measurement technology ensures accurate readings regardless of whether the waveform is a clean sine wave or a distorted non-sinusoidal waveform — essential for accurate measurements in circuits supplying variable frequency drives (VFDs), LED lighting systems, UPS equipment, and other non-linear loads that are common in UAE commercial buildings. The 30mm jaw opening accommodates standard single-core conductors up to 30mm diameter, and the slim jaw profile allows insertion into crowded terminal strips and panel board cable runs. CAT IV 300V / CAT III 600V safety rating covers use from the electrical service entrance to end-user equipment connections.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- True-RMS AC Current & Voltage – Accurate measurements on non-sinusoidal waveforms from VFDs, LED drivers, UPS, and other non-linear loads.
- DC Current Measurement – DC current measurement capability for battery systems, DC circuits, and solar PV installations.
- 30mm Jaw Opening – Accommodates single-core conductors up to 30mm diameter with slim jaw profile for tight panel spaces.
- Backlit LCD Display – Clear measurement readout in switchboard and panel board environments with reduced lighting.
- HOLD Function – Freezes the display for reading in awkward measurement positions where the display cannot be viewed simultaneously.
- Min/Max/Average – Captures minimum, maximum, and average values during dynamic load conditions and motor start-up events.
- CAT IV 300V / CAT III 600V Safety Rating – Covers measurements from the service entrance to point-of-use equipment.
- Auto Shut-Off – Extends battery life with automatic power-down after inactivity.
Ideal for: electricians, electrical contractors, facilities engineers, and MEP teams performing current and voltage measurements during installation, commissioning, and maintenance of electrical systems across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke 325 True RMS Clamp Meter Fluke 325 |
| Country of Origin | USA |
| Warranty | Limited lifetime warranty |
| Battery Type | 2 x AAA alkaline batteries |
| Display Type | Digital LCD, 4000 counts, with backlight |
| Jaw Opening Size | 30 mm (1.18 in) |
| Resistance Range | 400.0 Ω to 400.0 kΩ |
| Safety Rating | CAT III 600V, CAT IV 300V |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke 325 Clamp Meter in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement instruments, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for electrical contractors and facilities maintenance buyers.
Why is true-RMS important for clamp meter measurements?
Non-true-RMS (average-responding) clamp meters are calibrated assuming a perfect sine wave — they give accurate readings only on undistorted power circuits. In circuits with variable frequency drives, LED drivers, electronic ballasts, or UPS systems, the current waveform is distorted (non-sinusoidal). A true-RMS meter like the Fluke 325 measures the actual heating value of the current regardless of waveform shape, giving an accurate reading. A non-TRMS meter can show readings 10-30% off on distorted circuits — leading to incorrect cable sizing, overload protection settings, or energy billing calculations.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
