Fluke 1-Phase 5A/50A Mini Current Clamp set for PQ
- SKU: Fluke-1-Phase5A/50A
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke i5sPQ/i50sPQ 1-Phase Mini Current Clamp Set is a compact dual-range current probe accessory for connecting to Fluke power quality analysers to capture AC current in electrical installations across the UAE.The Fluke i5sPQ / i50sPQ Mini Current Clamp Set provides 5A and 50A... See More
The Fluke i5sPQ/i50sPQ 1-Phase Mini Current Clamp Set is a compact dual-range current probe accessory for connecting to Fluke power quality analysers to capture AC current in electrical installations across the UAE.

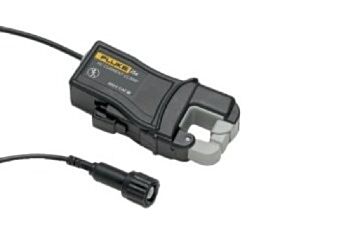

The Fluke i5sPQ / i50sPQ Mini Current Clamp Set provides 5A and 50A range flexible current clamp accessories designed to work in conjunction with compatible Fluke power quality analysers such as the Fluke 430 and 435 series. These slim, flexible clamps can be routed around conductors in tight panel board and distribution board environments where traditional rigid jaw clamps cannot fit, and their slim profile allows multiple clamps to be positioned simultaneously on a single-phase system. The 5A range delivers high sensitivity for low-load measurement accuracy, while the 50A range covers standard single-phase branch circuit loads. Their BNC/banana output connectors interface directly with Fluke PQ analyser input ports for automatic range detection and calibrated current measurement.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Dual Range 5A & 50A – Two current clamps covering both low-load sensitive measurement and standard branch-circuit AC current measurement.
- Flexible Mini Form Factor – Slim, flexible clamp design accesses tight conductor spacing in panel boards and distribution boards.
- Fluke PQ Analyser Compatible – Designed for use with Fluke 430 and 435 series power quality analysers for calibrated AC current input.
- 1-Phase Configuration – Single-phase current monitoring for branch circuit and single-phase load power quality analysis.
- BNC Output Connector – Secure, calibrated connector interface to Fluke power quality instrument input channels.
- High Accuracy at Low Currents – 5A range provides excellent sensitivity for accurate measurement of low-load circuits.
- Flexible Jaw Opening – Routes around conductors with limited physical access without disconnecting live circuits.
- Durable Construction – Built for repeated field deployment in industrial and commercial electrical inspection environments.
Ideal for: electrical contractors, facilities engineers, and power quality auditors working on single-phase branch circuits, panel boards, and distribution boards across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke 1-Phase 5A/50A Mini Current Clamp set for PQ |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke i5sPQ/i50sPQ Mini Current Clamp Set in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement equipment, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for electrical contractors and industrial buyers.
Which Fluke power quality analysers are compatible with this current clamp set?
The i5sPQ and i50sPQ clamps are designed primarily for use with Fluke 430 Series and 435 Series power quality analysers. They connect via the analyser's current input channels and provide calibrated AC current measurement data for power quality analysis. Confirm compatibility with your specific Fluke analyser model before purchase — contact Procure.ae for compatibility guidance.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
