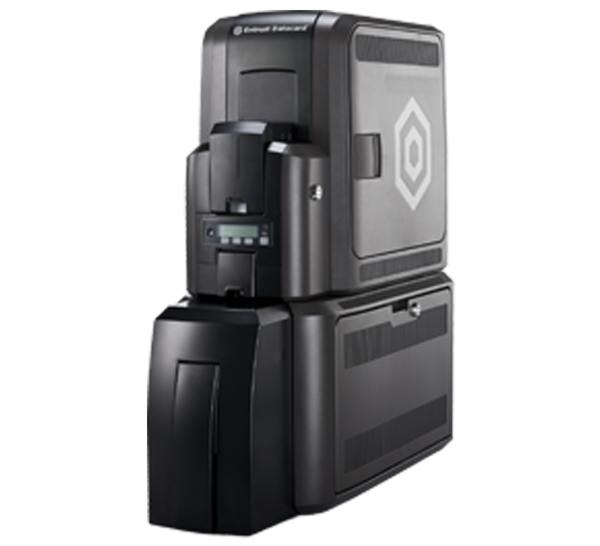

ENTRUST DATACARD CR805 ID CARD PRINTER With Inline Lamination Module
- SKU: CR805-Lamination-Module
Actual Stock Can Be Confirmed After Placing the Order.
OVERVIEW A stunning, high-end look for every card design – photo quality imagery and high resolution printing show off your brand to the world.Improved security of schools, airports and other key facilities – pigment ink for lifelike skin tones and easier card-to-cardholder authentication. In... See More
OVERVIEW
A stunning, high-end look for every card design – photo quality imagery and high resolution printing show off your brand to the world.
Improved security of schools, airports and other key facilities – pigment ink for lifelike skin tones and easier card-to-cardholder authentication. In addition, the system has enhanced security features to protect the integrity of your data.
Savings for your card program – long lasting images mean fewer card replacements and system modularity means you can add to the platform as card program needs change. Add new encoding options or lamination with ease.
- One- or two-sided printing
- Modular one- to two-sided printing upgrade
- Magnetic stripe encoding and/or smart card personalization
- Extended 100-card output hopper
- Extended 200-card input hopper
- Six-compartment multi-hopper; Six 125-card hoppers, 750-card total capacity
- Kensington® security lock for printer
CR805 Printer With Inline Lamination Module Standard Features and Specifications
| Print technology | Retransfer pigment ink |
| Print capabilities | Single or dual-sided, over-the-edge printing |
| Print resolution | 600 dots per inch (dpi) |
| Print speed | Full color printing Single-sided (CMYKP) - up to 100 cards per hour (cph) Double-sided (CMYKP-KP) - up to 66 cards per hour (cph) |
| Color modes | True Color (ICC) - prints color as close as possible to image as defined in the card design Legacy SR/CR - Close match to the CR500 Instant Issuance System Vivid - printer colors with higher saturation and contrast |
| Card capacity | Input hopper - 125 cards Output hopper - 25 cards (Optional 125 card) Card input size - 0.030 inches to 0.040 inches (0.76 mm to 1.01mm) |
| Operating environment | 60°F - 95°F (15°C - 35°C) |
| Physical dimensions | L 21.4 in. x W 10.1 in. x H 15.6 in. L 54.34 cm x W 25.53 cm x H 39.68 cm |
| Weight | 28 lb. (12.7 kg); with options will vary |
| Connectivity | USB and Ethernet |
| Warranties | Printer: 36 month standard warranty Printhead: Limited lifetime warranty |
CR805 Optional Features and Supplies
| Magnetic stripe encoding | ISO/IAT Magnetic Stripe Encoding JIs Magnetic Stripe Encoding |
| SmartCard encoding | Single wire - Contact ISO 7816 T=0, 1 Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa (DES & AES) Loosely Couple - Contact ISO 7816 T=0, 1 Contactless ISO 14443 A/B Protocols, Mifare Protocols &FeliCa
|
| Color ribbons | CMYKP: 1000 images (single-sided); 500 images (dual-sided) CMYKP-KP: 750 images CMYP-KPi: 750 images CMYKP-KPi: 500 images FCMYP-KP: 750 images |
| Clear retransfer film | Two options: 1000 images (single-sided), 500 images (dual-sided) 1500 images (single-sided), 750 images (dual-sided) |
