BenQDigital SignageSKU CS8601

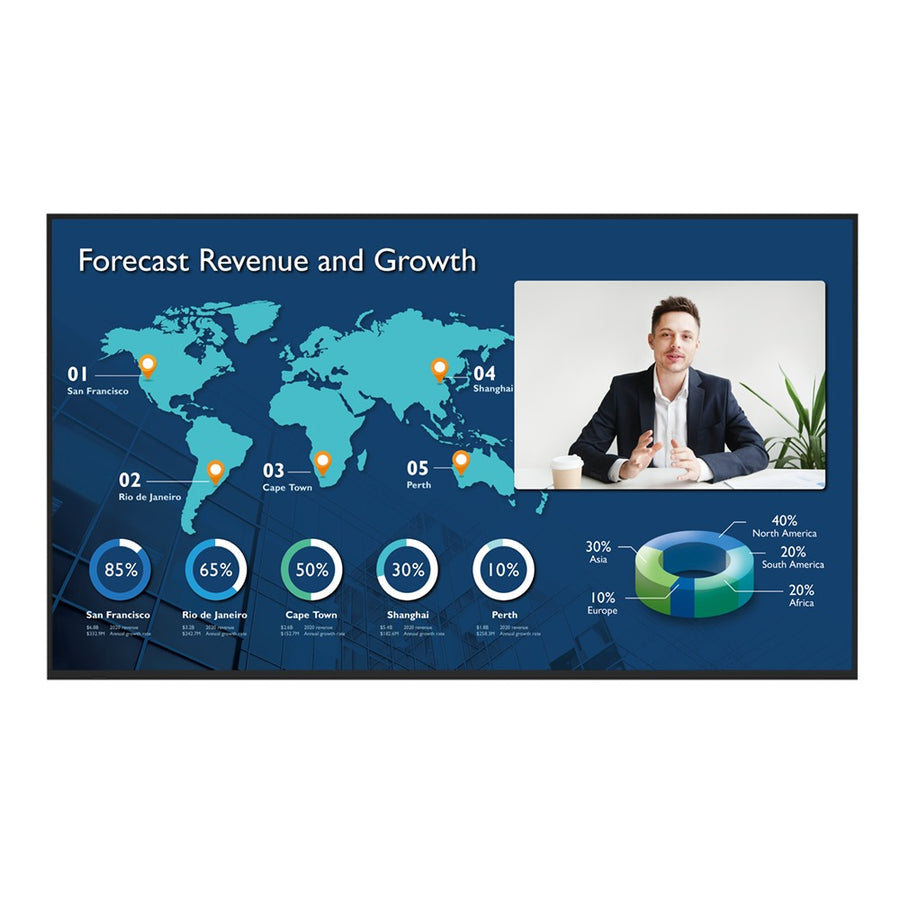

BenQ 86" Corporate Smart Signage Display – CS8601
The BenQ 86" Corporate Smart Signage Display – CS8601 is a digital signage available in the UAE from Procure.ae.
The BenQ 86" Corporate Smart Signage Display – CS8601 redefines business communication with its expansive 86-inch 4K UHD display , designed to deliver exceptional clarity and vibrant colors in any corporate environment. Perfect for conference rooms , digital signage , and collaborative spaces , this advanced display offers seamless wireless connectivity and user-friendly controls. Its smart signage technology ensures dynamic presentations, interactive meetings, and impactful branding. The CS8601 features robust security, multiple input options, and a sleek, modern design, making it ideal for.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Weight
54.3 kg
- Ultra-Large 86" 4K UHD Display
- Smart Signage Platform
- Wireless Screen Sharing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-Large 86" 4K UHD Display
Provides stunning visual clarity and vibrant colors for impactful presentations and digital signage.
02
Smart Signage Platform
Intuitive interface supports interactive content management and dynamic scheduling.
03
Wireless Screen Sharing
Effortlessly share content from multiple devices without the need for cables or adapters.
04
Multiple Connectivity Options
HDMI, USB, and LAN ports ensure seamless integration with your existing tech ecosystem.
05
Integrated Annotation Tools
Enable real-time collaboration with on-screen writing and drawing features.
06
24/7 Reliable Operation
Engineered for continuous use in demanding business and public environments.
07
Robust Security Features
Protect your data and presentations with advanced security protocols.
08
Easy Remote Management
Monitor and control the display remotely for effortless maintenance and updates.
Specifications
33 specificationsGeneral
What's in the BoxVGA cable × 1, HDMI cable × 1, USB cable × 1, Remote controller
Display
Aspect Ratio16:9
Bezel Size13.9 / 23.4 / 13.9 / 13.9 mm
Brightness450 nits
Color Depth10-bit
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 8.0
ProcessorCortex-A73 × 2 + Cortex-A53 × 2
Audio
Audio In3.5 mm line in × 1 (Mic / PC Audio)
Audio Out3.5 mm earphone out × 1
Speaker Output2 × 16 W, subwoofer 1 × 15 W
Connectivity
EthernetRJ45 × 1
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
OPS SlotYes (80-pin Intel OPS)
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 3, USB 3.0 × 3, USB-B × 2
VGA InputVGA × 1
Power
Power Consumption173 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions1930.8 x 1109.3 x 82.8 mm
Duty Cycle18/7
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2118 x 1271 x 280 mm
VESA Mount600 x 400 mm, M8 x 20 mm
Weight54.3 kg
Downloads
Manufacturer documents for the BenQ 86" Corporate Smart Signage Display – CS8601 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the BenQ digital signage used for?
The BenQ 86" Corporate Smart Signage Display – CS8601 redefines business communication with its expansive 86-inch 4K UHD display , designed to deliver exceptional clarity and vibrant colors in any corporate environment. Perfect for conference rooms , digital signage , and collaborative spaces ,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
