BiampMeeting Room SolutionsSKU Parlé DTM-XEX

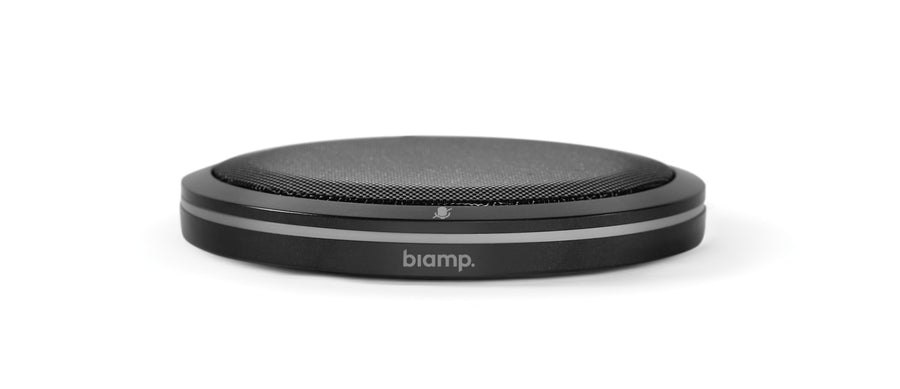

Biamp Parlé DTM-XEX Expansion Tabletop Microphone – 920-10118-10000
The Biamp Parlé DTM-XEX is an expansion Beamtracking tabletop microphone for Devio UCX systems. It uses a 16-element digital array with four 90° zones for 360° pickup and connects to a DTM-X host over one CAT5 cable. Procure.ae supplies the Biamp Parlé DTM-XEX across the UAE.
The DTM-XEX extends Beamtracking coverage across a table, using four 90° zones to capture voices across a full 360° area. It mixes active talkers automatically without manual lobe aiming or room mapping, and it starts working without manual tuning. Each microphone requires only one AEC channel, even when daisy-chaining a DCM-XEX. An LED indicator shows mute status at a glance during meetings.
The DTM-XEX is an expansion microphone for Devio UCX systems and is not a standalone device. It connects to the network box of a DTM-X through a single CAT5 cable, which carries both signal and power. The manufacturer lists a maximum of 33 feet (10 meters) between the DTM-XEX and its DSP host device. It is TAA compliant, and the manufacturer backs it with a five-year warranty.
Type
Expansion Tabletop Microphone
Weight
231 g
- Expansion microphone
- Beamtracking pickup
- Single CAT5 cable
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Expansion microphone
Works with a DTM-X host and is not a standalone device.
02
Beamtracking pickup
Four 90° zones capture voices across a full 360° room area.
03
Single CAT5 cable
Provides both signal and power for streamlined setup.
04
No manual tuning
Beamtracking works out of the box with no lobe aiming or room mapping.
05
One AEC channel
Each microphone requires only one AEC channel, even when daisy-chaining a DCM-XEX.
06
LED mute indicator
Intuitive LED indicators show mute status during meetings.
07
TAA compliant
Meets government procurement requirements under the Trade Agreement Act.
08
Five-year warranty
Backed by a comprehensive five-year warranty from the manufacturer.
Specifications
16 specificationsGeneral
ApplicationExpanding Devio UCX conference tables
CompatibilityDevio UCX; expansion for DTM-X
Key FeaturesBeamtracking, four 90° zones (360° pickup), 16-element digital array, single CAT5 connection, LED mute indicator, TAA compliant
ModelParlé DTM-XEX
TypeExpansion Tabletop Microphone
Audio
Dynamic Range90 dB, A-weighted (THD+N < 10%)
Frequency Response150 Hz to 16 kHz ±3 dB
Max SPL109 dB (at 0.5% THD)
Microphone16-element digital array
Polar PatternBeamformed, four 90° zones
Connectivity
ConnectivitySingle CAT5 connection, up to 10 m (33 ft) from DSP host device
Power
Power SourceCustom/proprietary, supplied via host network box over CAT5
Physical
Operating Temperature0 to 40 °C
Weight231 g
Compliance
CertificationsFCC Part 15B, CE, UL and C-UL listed, RoHS, TAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Biamp Parlé DTM-XEX Expansion Tabletop Microphone – 920-10118-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Parlé DTM-XEX a standalone microphone?
No. The DTM-XEX is an expansion microphone that works with a DTM-X host. It connects to the host's network box through a single CAT5 cable, which carries signal and power.
What does the DTM-XEX need to work?
It needs a DTM-X host with a network box. The DTM-XEX is designed for Devio UCX systems, so confirm the host and room system before ordering. It connects to the host's network box over a single CAT5 cable, within a maximum distance of 33 feet (10 meters) from its DSP host device.
How far can the DTM-XEX be from its host device?
The manufacturer's specifications state a maximum of 33 feet (10 meters) between the DTM-XEX and its DSP host device. Plan cable runs from the host network box within that distance.
Does the DTM-XEX need its own power supply?
The manufacturer lists custom or proprietary power, supplied through the single CAT5 connection to the host. The manufacturer's specifications do not state a separate power adapter. Confirm the host network box and PoE requirements of the host system before installation.
Can I buy the Parlé DTM-XEX (920-10118-10000) in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
