Biamp Modena MAX Connect wireless presentation system 910-02278Biamp
Meeting Room SolutionsSKU MAX Connect

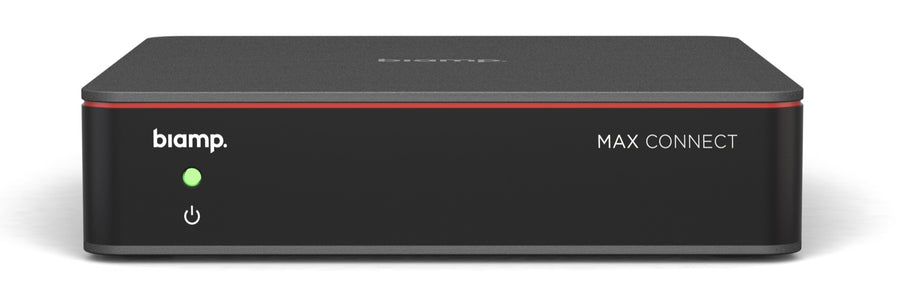

Biamp Modena MAX Connect Wireless Presentation System – 910-02278

The Biamp Modena MAX Connect (910-02278) is a wireless presentation system for meeting rooms and collaboration spaces. It shares up to six content streams at once through AirPlay, Google Cast, HDMI, USB-C or the Modena app, and rebroadcasts to up to 30 participant devices. Procure.ae supplies the Biamp MAX Connect across the UAE.

Participants can share from laptops, phones and tablets using AirPlay, Google Cast, HDMI, USB-C or the Modena app. Up to six content streams can be shared at the same time, and the MAX Connect can rebroadcast shared content to as many as 30 participant devices for inclusive viewing. It supports USB and HDMI microphones, cameras and speakers, which allows a bring-your-own-meeting setup with existing room peripherals. The kit includes a Bluetooth handheld remote control, an EasyConnect USB-C adapter and a mounting plate with cable retainer, and the unit is covered by a 3-year warranty.

The MAX Connect is a Workplace Ready device that integrates with Biamp Workplace for cloud-based management and control. It mounts on the included plate with cable retainer and runs from a 12 V, 2 A external adaptor. Optional Auditorium Mode licensing extends content distribution to up to 200 participant devices and up to six support displays for larger spaces. It replaces the discontinued Modena Hub and Modena Hub+ models.

Type
Wireless Presentation System
Weight
0.538 kg
  • Six-stream sharing
  • Content rebroadcast
  • Bring your own peripherals
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Six-stream sharing
Shares up to six content streams simultaneously via AirPlay, Google Cast, HDMI, USB-C or the Modena app.
02
Content rebroadcast
Rebroadcasts shared content to as many as 30 participant devices.
03
Bring your own peripherals
Supports USB and HDMI microphones, cameras and speakers.
04
Cloud management
Workplace Ready device that integrates with Biamp Workplace for cloud-based management and control.
05
Auditorium Mode option
Optional licensing extends content distribution to up to 200 participant devices and up to six support displays.
06
Power and mounting
Includes a 12 V, 2 A external power adaptor and a mounting plate with cable retainer.
07
3-year warranty
Backed by a comprehensive 3-year warranty.

Specifications

11 specifications
General
Key FeaturesSix simultaneous streams, Rebroadcast to 30 participant devices, AirPlay, Google Cast, USB-C and HDMI sources, Biamp Workplace management, Optional Auditorium Mode for up to 200 devices
ModelMAX Connect
TypeWireless Presentation System
What's in the BoxBluetooth handheld remote control, mounting plate with cable retainer, external power supply with plug adapters, EasyConnect USB-C Adapter, EasyConnect USB-C Adapter Mounting Plate
Power
Power Consumption7 W (max); 0.3 W (standby)
Power Source12 V DC, 2 A external adaptor
Physical
MountingMounting plate with cable retainer
Operating Temperature20 to 60 °C
Weight0.538 kg
Compliance
CertificationsCB, HDMI, BQB, CE, FCC, RCM, REACH, RoHS, WEEE, CA65, SVHC233, TSCA
Warranty3 years

Downloads

Manufacturer documents for the Biamp Modena MAX Connect Wireless Presentation System – 910-02278 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Can participants share from both Apple and Android devices?
Yes. Apple devices can share over AirPlay and Android devices can share over Google Cast. Laptops and other sources can connect through HDMI, USB-C or the Modena app, and up to six content streams can be shared at the same time.
How many participants can view shared content?
Shared content can be rebroadcast to as many as 30 participant devices. For larger rooms, the optional Auditorium Mode licence extends distribution to up to 200 participant devices and up to six support displays.
Can USB and HDMI microphones, cameras and speakers be used with the MAX Connect?
Yes. The MAX Connect supports USB and HDMI microphones, cameras and speakers, so existing room peripherals can be used alongside the unit for a bring-your-own-meeting setup. The package also includes a Bluetooth handheld remote control.
How is the MAX Connect mounted and managed?
The unit ships with a mounting plate with cable retainer. It is a Workplace Ready device that integrates with Biamp Workplace for cloud-based management and control, so it can be managed from anywhere.
