BenQDigital SignageSKU ST5502S

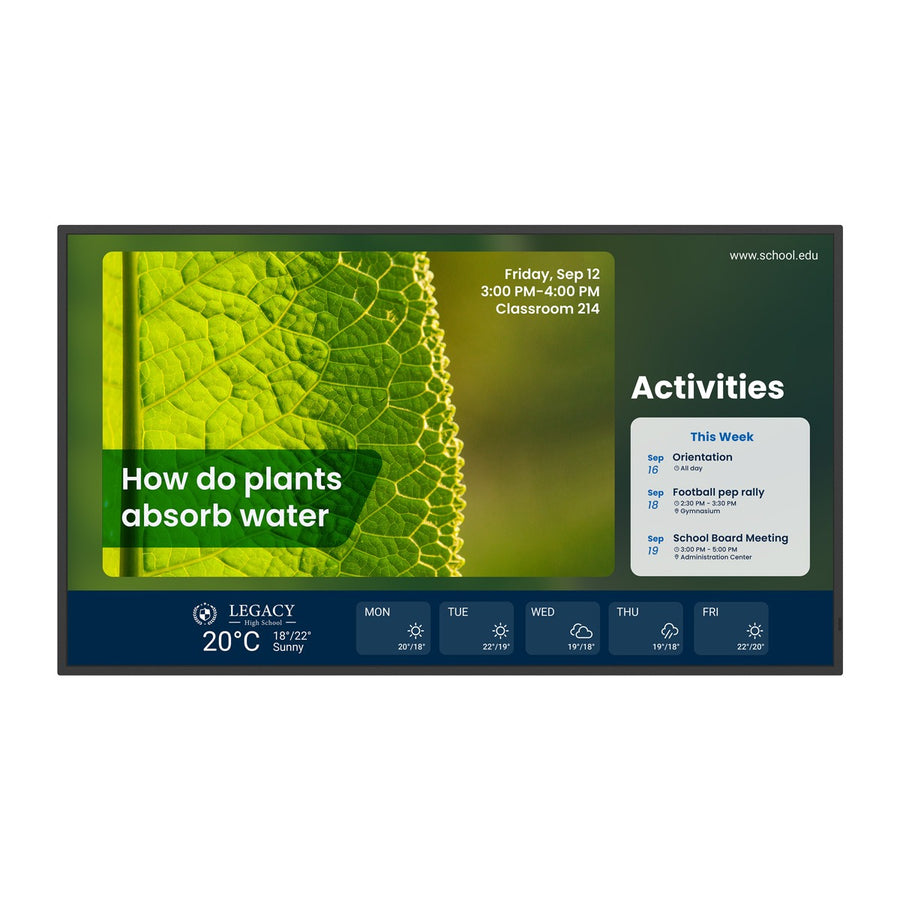

BenQ Smart Signage 55-inch 4K Digital Signage Display – ST5502S
The BenQ ST5502S is a 55-inch 4K UHD smart signage display for on-campus and corporate signage. It has an IPS panel with 400 nits typical brightness and runs Android 8.0. Procure.ae supplies the BenQ ST5502S in the UAE, with quotes, delivery and installation across the UAE and wider MEA.
The ST5502S delivers 3840 x 2160 resolution on a 55-inch 16:9 IPS panel, with a 9 ms response time, 8-bit colour depth and 400 nits typical brightness. Typical contrast is 1,300:1 and the colour gamut is 72% NTSC. The display is rated for 18 hours a day, 7 days a week, with two 10 W speakers built in. Typical power use is 134 W.
The ST5502S sits in the ST02S series with the 43-inch ST4302S. It lists InstaShare 1 wireless screen sharing from the BenQ App Store, DMS device management and X-Sign Broadcast. Ports are USB-A x 2, VGA x 1, RS-232, Ethernet (10/100 Mbps) and a microSD reader. Its VESA mount pattern is 400 x 400 mm, larger than the 200 x 200 mm pattern on the 43-inch model.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Type
Smart Signage Display
- 55-inch 4K UHD
- IPS panel
- Android 8.0 built in
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
55-inch 4K UHD
3840 x 2160 pixels on a 55-inch 16:9 IPS panel.
02
IPS panel
400 nits typical brightness and 1,300:1 typical contrast.
03
Android 8.0 built in
Runs Android 8.0 with an A73 x 2 + A53 x 2 processor.
04
InstaShare 1 screen sharing
Wireless sharing from the BenQ App Store.
05
Device management
DMS device management and X-Sign Broadcast support.
06
Landscape and portrait
Supports landscape and portrait orientation.
07
Built-in speakers
Two 10 W speakers and an IR sensor.
08
Multiple ports
USB-A x 2, VGA, RS-232, Ethernet and microSD reader.
Specifications
29 specificationsGeneral
Key Features4K UHD, Android 8.0 built in, InstaShare 1 wireless screen sharing, DMS device management, X-Sign Broadcast, IR sensor, 2 × 10 W speakers, landscape and portrait
ModelST5502S
TypeSmart Signage Display
Display
Aspect Ratio16:9
Brightness400 nits (typical)
Color Depth8-bit
Color Gamut72% NTSC
Contrast Ratio1,300:1 (typical)
OrientationLandscape and portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size55 inch
Performance
GraphicsMali-G51MP2
Operating SystemAndroid 8.0
ProcessorA73 x 2 + A53 x 2
Storage Conditions-20 to 60 °C, 10% to 80% RH, non-condensing
Audio
Speaker Output2 × 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB-A x 2 (2.0), VGA x 1, RS-232 x 1, Ethernet x 1 (10/100 Mbps), 3.5 mm line in x 1, 3.5 mm line out x 1, microSD reader x 1
Power
Power Consumption134 W (typical)
Standby Power<0.5 W
Physical
Dimensions1241.8 x 712.6 x 63.5 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1350 x 910 x 185 mm
VESA Mount400 x 400 mm
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the BenQ Smart Signage 55-inch 4K Digital Signage Display – ST5502S — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ST5502S a 4K display?
Yes. It has 3840 x 2160 UHD resolution on a 55-inch 16:9 IPS panel, with a 9 ms response time. Typical contrast is 1,300:1 and typical brightness is 400 nits, according to the manufacturer's specifications.
Can the ST5502S be used in portrait?
Yes. The ST5502S supports landscape and portrait orientation. The manufacturer's specifications list its overall dimensions as 1241.8 x 712.6 x 63.5 mm, so check that the wall space suits the chosen orientation.
What VESA mount does the ST5502S use?
The ST5502S uses a 400 x 400 mm VESA pattern with four M6 x 15 mm screws. The manufacturer's specifications do not state the display weight, so check the wall, bracket and fixings before installation.
Does it support screen sharing and remote management?
Yes. It supports InstaShare 1 wireless screen sharing from the BenQ App Store, and DMS device management. The broadcast system is listed as X-Sign Broadcast. The specifications also list an Ethernet port for network connection.
Does the ST5502S have Wi-Fi or Bluetooth?
No. The manufacturer's specifications list Wi-Fi and Bluetooth as not available. The display connects to a network through its 10/100 Mbps Ethernet port, so plan cabling for that connection at install.
