BenQInteractive Flat PanelsSKU RE7504
BenQ Board Essential RE04 75-inch 4K Interactive Flat Panel – RE7504
The BenQ Board Essential RE7504 is a 75-inch 4K UHD interactive flat panel from the RE04 series, with Precision IR touch for up to 40 points and EDLA-certified Android 14. It has a 450 nits IPS panel and includes EZWrite 6.0 whiteboarding and InstaShare 2 wireless screen sharing. Procure.ae supplies the RE7504 in the UAE.
The RE7504 uses a 75-inch IPS panel at 3840 x 2160 with 450 nits typical brightness, 1200:1 typical contrast (30,000:1 dynamic), 10-bit colour and a 72% NTSC colour gamut. The 9H tempered, anti-glare surface is flicker-free with low blue light. Precision IR touch supports up to 40 points with a response time under 5 ms. Two 20 W (max) speakers are built in, and typical power consumption is 73.9 W.
Android 14 (EDLA) runs on a CPU with four A73 and four A53 cores and a G52 MP8 GPU. Software includes EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management, AMS account management and X-Sign Broadcast. An OPS slot accepts a slot-in PC, and mounting uses a 800 x 400 mm VESA pattern. A wall mount, remote control and VGA, HDMI, USB-B and USB-C cables are supplied.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared (Precision IR)
- Precision IR touch
- 4K UHD IPS panel
- EDLA Android 14
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Precision IR touch
Infrared touch supports up to 40 points with a response time under 5 ms.
02
4K UHD IPS panel
3840 x 2160 resolution on a 75-inch IPS panel with 450 nits typical brightness.
03
EDLA Android 14
Built-in Android 14 (EDLA) for Google tools and services, as described by BenQ.
04
EZWrite 6.0 whiteboarding
Built-in whiteboarding software with a Floating Tool for quick access to functions.
05
InstaShare 2 sharing
Wireless screen sharing from personal devices to the panel.
06
Eye-comfort screen
Flicker-free, low blue light, anti-glare 9H tempered surface.
07
Connectivity
VGA, USB-C with 65 W power delivery, USB-A and USB-B ports, Gigabit Ethernet, RS-232 and a microSD reader.
08
Expansion and management
An OPS slot for a slot-in PC, plus DMS device management and AMS account management.
Specifications
45 specificationsGeneral
Key FeaturesPrecision IR touch, 40 points, 4K UHD IPS, Android 14 (EDLA), EZWrite 6.0, InstaShare 2, OPS slot, USB-C 65 W PD
ModelRE7504
TypeInteractive Flat Panel
What's in the BoxWall mount, remote control, VGA cable (3 m), HDMI cable (3 m), USB-B touch cable (3 m), USB-C cable (1.5 m)
Display
Aspect Ratio16:9
Blue Light FilterYes (low blue light, flicker-free)
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1 (typical); 30,000:1 (dynamic)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points40-point multi-touch
Touch Response Time< 5 ms
Touch TechnologyInfrared (Precision IR)
Performance
FunctionsEZWrite 6.0 whiteboarding, InstaShare 2 wireless screen sharing, X-Sign Broadcast, Floating Tool, DMS and AMS management
GraphicsG52 MP8
Operating SystemAndroid 14 (EDLA)
ProcessorQuad-core A73 + quad-core A53
Storage Conditions-10 to 60 °C; 10% to 80% RH (non-condensing)
Audio
Audio In3.5 mm PC audio × 1; 3.5 mm mic × 1
Audio Out3.5 mm earphone × 1
Speaker Output2 × 20 W (max)
Connectivity
EthernetGigabit (10/100/1000 Mbps) for Android; Gigabit × 2 for OPS
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot × 1
SD Card SlotMicro SD reader × 1
Serial PortRS-232 × 1
Touch USB PortsUSB-B × 2 (USB 2.0, touch)
USB PortsUSB-A × 4 (2 × USB 2.0, 2 × USB 3.0)
USB-C PortsUSB-C × 2 (1 × USB 2.0, 1 × USB 3.0); 65 W power delivery
VGA InputVGA × 1
Power
Power Consumption73.9 W (typical)
Standby Power< 0.5 W
Physical

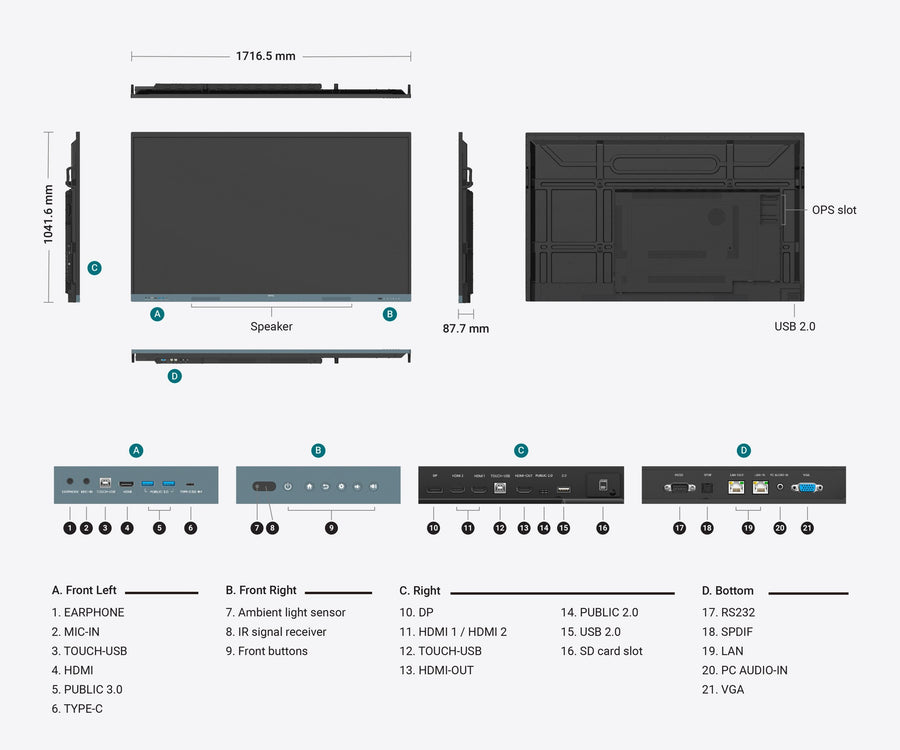

Dimensions1716.5 x 1041.6 x 87.7 mm
Duty Cycle18 hours/day, 7 days/week
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1860 x 1125 x 185 mm
Surface ProtectionAnti-glare, 9H tempered glass
VESA Mount800 x 400 mm (4 × M8 × 25L)
Compliance
CertificationsENERGY STAR; EDLA certified
Downloads
Manufacturer documents for the BenQ Board Essential RE04 75-inch 4K Interactive Flat Panel – RE7504 — datasheets, manuals, drawings and certificates.
- Brochure – BenQ Board Essential RE04
- User manual – BenQ (covers 62 models)
- User manual – BenQ (covers 25 models)
- User manual – BenQ Board Essential RE04FV
- User manual – BenQ Board Essential RE04FV (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board Essential RE04FV
- User manual – BenQ Board Essential RE04FV / Board Master RM04
- Energy label – BenQ Board Essential RE04 – RE7504 PCF EN 241120112612
- RE7504 DM EN 240409164821
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the BenQ RE7504 support?
It supports up to 40 touch points using Precision IR infrared touch, with a touch response time under 5 ms. The surface is 9H tempered, anti-glare glass. A touch cable (USB-B, 3 m) is supplied, and two USB-B ports are provided for touch.
Which operating system does the RE7504 run?
It runs Android 14 (EDLA) on a CPU with four A73 and four A53 cores and a G52 MP8 GPU. Built-in software includes EZWrite 6.0 for whiteboarding and InstaShare 2 for wireless screen sharing, and the Floating Tool gives quick access to common functions.
Can I connect a Windows PC or laptop to the RE7504?
Yes. It has an OPS slot for a slot-in PC, a VGA input, USB-C with 65 W power delivery and USB-B touch ports. The box includes VGA (3 m), HDMI (3 m), USB-B (3 m) and USB-C (1.5 m) cables for connecting a laptop.
How is the RE7504 mounted?
The RE7504 has a VESA 800 x 400 mm pattern (4 × M8 × 25L), and a wall mount is supplied in the box. Its dimensions are 1716.5 x 1041.6 x 87.7 mm. BenQ does not state the weight in these specifications, so confirm mounting hardware ratings with Procure.ae.
Does the RE7504 have Wi-Fi or Bluetooth?
The manufacturer's specifications list Wi-Fi and Bluetooth as N/A and provide Gigabit Ethernet for network connection. Wireless screen sharing is handled by InstaShare 2, and devices are managed through DMS, with user accounts managed through AMS.
