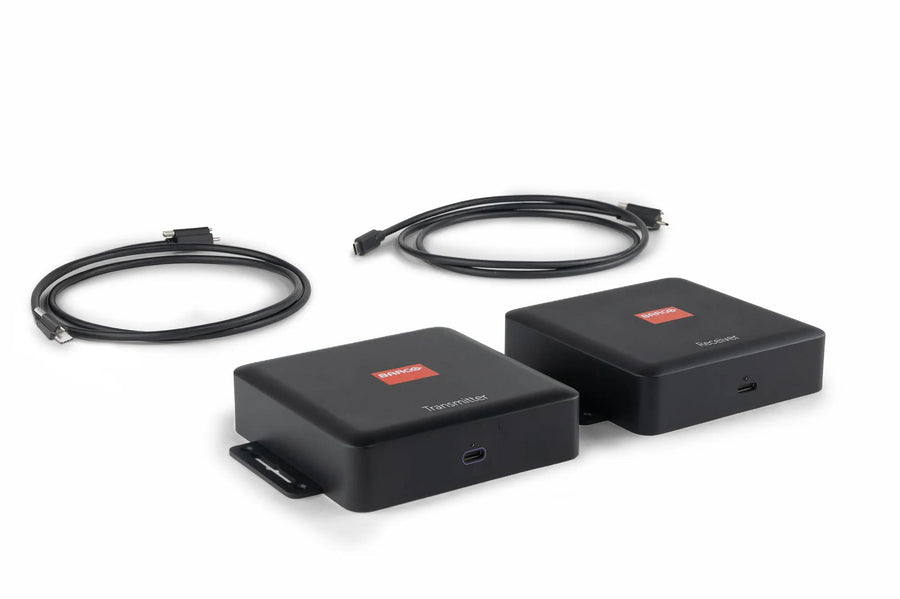

Barco ClickShare USB-C Extension over CAT Kit
The Barco ClickShare USB-C Extension over CAT kit extends USB 2.0 and DisplayPort connectivity up to 40 m over CAT cabling for meeting-room installations. It supports 4K at 30 Hz for wired content sharing and is powered by the ClickShare Hub. Procure.ae supplies the kit across the UAE.
The kit has a TX box and an RX box. The manufacturer's specifications list 4K at 30 Hz for wired laptop content sharing and up to 1080p at 60 Hz between the ClickShare Hub and the Control Panel. Cable runs of up to 60 m over Cat 5e/Cat 6 (70 m over Cat 6a/Cat 7) are listed for Control Panel links, and up to 35 m (40 m for Cat 6a/Cat 7) for wired laptop sharing. Each box measures 152 mm wide, 122 mm high and 34 mm deep.
The kit is designed for complex meeting-room cable routing, so the Control Panel or a participant's device can sit far from the ClickShare Hub. The manufacturer lists compatibility with ClickShare Hub Core and Pro, and wired content sharing with the ClickShare CX-50 Gen2. Built-in mounting holes allow desk, ceiling or wall fixing.
Key features
Specifications
| Compatibility | ClickShare Hub Core/Pro, ClickShare CX-50 Gen2 |
| Key Features | Extends USB 2.0 and DisplayPort up to 40 m, Hub-powered, 4K wired laptop sharing, Laptop charging with external power |
| Model | ClickShare USB-C Extension over CAT kit |
| Type | USB-C Extension Kit |
| What's in the Box | TX box, RX box, 1.2 m USB-C to USB-C cable (2), screws |
| Resolution | 3840 x 2160 (4K UHD) at 30 Hz |
| Storage Conditions | -40 to 85 °C |
| Ports | USB-C × 2 (TX box), USB-C × 1 (RX box) |
| Power Consumption | TX box 19.894 W, RX box 4.623 W (control panel link) |
| Dimensions | 152 x 122 x 34 mm (W x H x D) |
| Length | Up to 60 m (Cat 5e/6), 70 m (Cat 6a/7) to control panel |
| Mounting | Desk, ceiling or wall (built-in mounting holes) |
| Operating Temperature | 0 to 40 °C |
| Weight | TX box 333 g, RX box 315 g |
| Warranty | 1 year |
