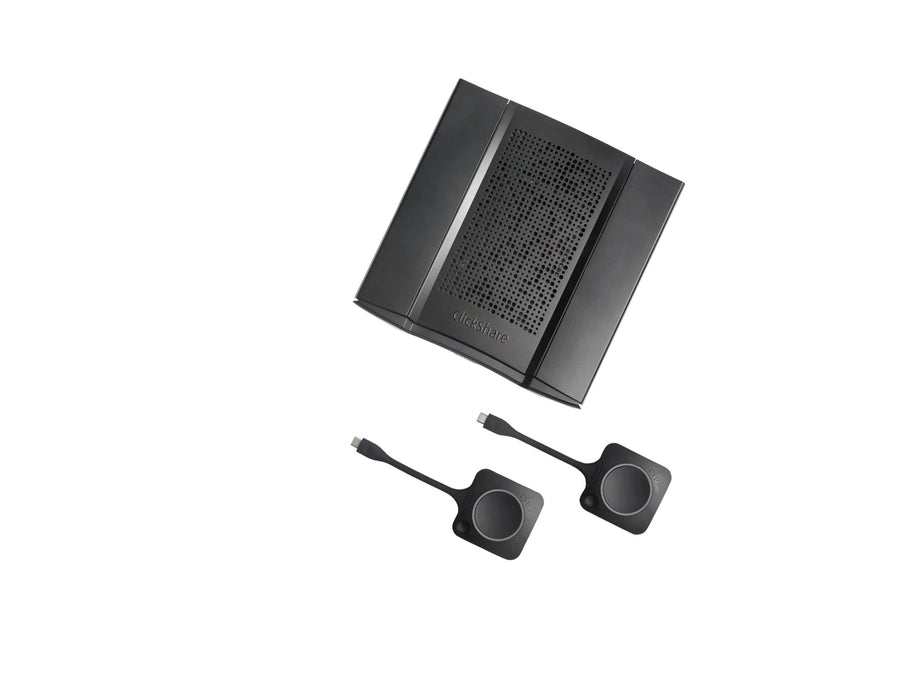

Barco ClickShare CX-50 2nd Generation Wireless Conferencing System
The Barco ClickShare CX-50 2nd generation is a wireless video conferencing system for meeting rooms and boardrooms. It outputs 4K (3840 x 2160) at 60 Hz over HDMI 2.1 and USB-C, connects over 2.5 Gbps Ethernet or Wi-Fi, and lets participants share from the ClickShare App or Button. Procure.ae supplies it across the UAE.
The ClickShare CX-50 2nd generation drives 3840 x 2160 at 60 Hz through its HDMI 2.1 source and its USB-C DisplayPort Alternate Mode source, and accepts 3840 x 2160 at 30 Hz on its USB-C input. Participants share wirelessly through the ClickShare App for desktop and mobile, or with one click on the ClickShare Button. AirPlay, Google Cast and Miracast are supported natively. Audio output runs over USB, a 3.5 mm line-out jack and HDMI, and the unit offers touch screen support, interactivity and high-quality local view.
The CX-50 2nd generation suits boardrooms and meeting rooms, where a meeting can start from a laptop within seconds on the preferred video conferencing platform. When participants walk into the room, ClickShare connects automatically to room devices such as cameras, microphones, speakers, sound bars and displays. Wired authentication supports 802.1X, EAP-TLS, EAP-TTLS and PEAP, and management and reporting features are included. Procure.ae supplies the ClickShare CX-50 2nd generation with delivery and installation across the UAE and the wider MEA.
Resolution
3840 x 2160 (4K UHD) at 60 Hz
Type
Wireless Conferencing System
Weight
0.9 kg
- Native 4K output
- Wireless sharing
- Native casting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Native 4K output
HDMI 2.1 and USB-C outputs support 3840 x 2160 at 60 Hz.
02
Wireless sharing
Share from the ClickShare App on desktop and mobile, or with one click on the ClickShare Button.
03
Native casting
AirPlay, Google Cast and Miracast are supported without installing an app.
04
Wired and wireless network
Ethernet LAN at 2.5 Gbps and Wi-Fi, with 802.1X, EAP-TLS, EAP-TTLS and PEAP authentication.
05
Room device integration
Connects automatically to cameras, microphones, speakers, sound bars and displays.
06
Touch and local view
Touch screen support, interactivity and high-quality local view.
07
Management and reporting
Management and reporting features are included in the system.
08
Anti-theft lock
A Kensington lock slot secures the unit in the room.
Specifications
20 specificationsGeneral
Key Features4K 60 Hz output, ClickShare App and Button sharing, AirPlay, Google Cast, Miracast, 802.1X authentication, touch screen support, Kensington lock
ModelClickShare CX-50 2nd generation
TypeWireless Conferencing System
Display
Resolution3840 x 2160 (4K UHD) at 60 Hz
Performance
Operating SystemWindows 10 or higher, macOS 11 (Big Sur) or higher, Android 11 or higher, iOS 14 or higher
Storage Conditions-20 to 60 °C
Audio
Audio OutUSB, 3.5 mm line out, HDMI
Connectivity
Ethernet2.5 Gbps LAN
Frequency Band2.4 GHz and 5 GHz (DFS in select countries)
Input Voltage110/220 V AC
PortsHDMI 2.1 out, USB-C × 2, USB 3.0 × 2, Ethernet LAN 2.5 Gbps × 1, 3.5 mm audio out × 1
ProtocolsAirPlay, Google Cast, Miracast
Wi-FiIEEE 802.11 a/g/n/ac
Power
Power Consumption50 W (maximum, operational)
Physical
Dimensions200 x 39 x 202 mm
Operating Temperature0 to 40 °C
Weight0.9 kg
Compliance
CertificationsFCC, CE
Security Features802.1X, EAP-TLS, EAP-TTLS, PEAP, Kensington lock
Warranty1 year standard; 5 years with SmartCare registration
Downloads
Manufacturer documents for the Barco ClickShare CX-50 2nd Generation Wireless Conferencing System — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ClickShare CX-50 2nd generation support 4K?
Yes. The unit outputs 3840 x 2160 at 60 Hz over HDMI 2.1 and over its USB-C DisplayPort Alternate Mode source, so a 4K display can be driven from either connector. The USB-C input accepts 4K at 30 Hz.
Which devices can share to the ClickShare CX-50 2nd generation?
Windows 10 or higher, macOS 11 (Big Sur) or higher, Android 11 or higher and iOS 14 or higher can share through the ClickShare App. AirPlay, Google Cast and Miracast are also supported natively, so compatible phones and laptops can cast without the app.
Can the CX-50 2nd generation join a corporate network that uses 802.1X?
Yes. The unit supports 802.1X wired authentication with EAP-TLS, EAP-TTLS and PEAP. Its SoftAP client mode also supports 802.1X with EAP-TLS, EAP-TTLS and PEAP, and WPA2 PSK. Wireless transmission uses IEEE 802.11 a/g/n/ac on the 2.4 GHz and 5 GHz bands.
Does the CX-50 2nd generation connect to room cameras, microphones and displays?
Yes. When participants enter the room, ClickShare automatically connects to room devices such as cameras, microphones, speakers, sound bars and displays. Audio output is available over USB, a 3.5 mm line-out jack and HDMI.
How long is the warranty on the CX-50 2nd generation?
The standard warranty is 1 year. Registering the unit through SmartCare extends coverage to 5 years, according to the manufacturer. Procure.ae can confirm the current warranty terms when you request a quote.
