VSYS VCM-CE1546BL Back-to-Back Dual-Screen Ceiling Mount for 43"–86" Displays, 50 kg per Screen
- Model: VCM-CE1546BL
- SKU: VCM-CE1546BL
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VCM-CE1546BL is a back-to-back dual-screen ceiling mount carrying two 43"–86" displays at up to 50 kg each, available in the UAE from Procure.ae. Where people walk past a display from both directions, one screen only serves half the traffic. This mount hangs... See More
The VSYS VCM-CE1546BL is a back-to-back dual-screen ceiling mount carrying two 43"–86" displays at up to 50 kg each, available in the UAE from Procure.ae.
Where people walk past a display from both directions, one screen only serves half the traffic. This mount hangs two panels back to back from a single ceiling fixing, so a retail aisle, a terminal concourse or an open-plan floor gets the same content facing two ways without a second structural penetration or a second cable drop. Each side is independent: two different screen sizes, two different tilt angles, one shared pole.
The pole telescopes from 1090 mm to 1690 mm below the ceiling, which covers standard commercial ceilings through to double-height atriums, and the ceiling plate itself tilts so the assembly can be fixed to a pitched roof structure rather than only a flat slab. Both screens rotate a full 360 degrees around the pole, tilt from plus 5 to minus 20 degrees and level within plus or minus 3 degrees. The brackets detach for lifting, cabling drops through the pole, and each VESA interface takes patterns from 200 x 200 mm to 600 x 400 mm.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Two displays face opposite directions from one ceiling point, doubling the audience served per fixing and per cable run.
- 50 kg (110 lbs) capacity per side, carried independently, with the assembly strength tested to four times its rated load.

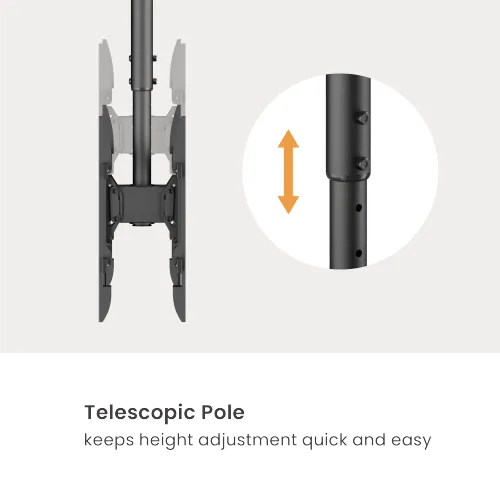

- Telescoping pole adjusts from 1090 mm to 1690 mm, so one part number suits ordinary ceilings and high atriums alike.

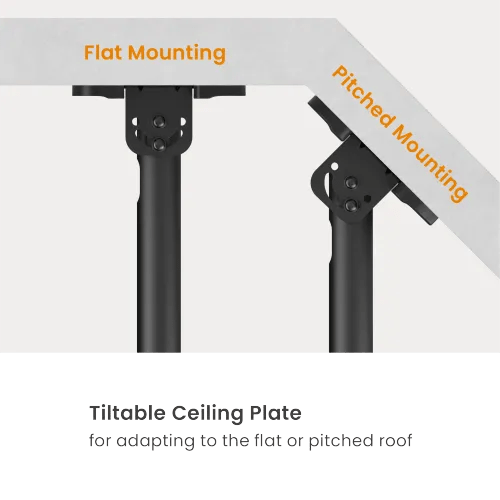

- Tiltable ceiling plate fixes to flat slabs or pitched roof structures without a separate adaptor bracket.

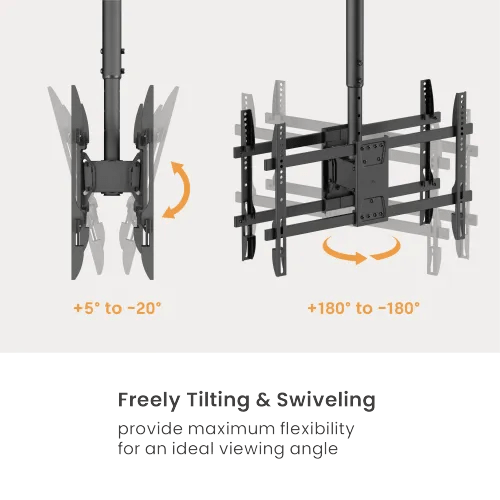

- Full 360 degree rotation around the pole lets each screen be aimed along an aisle or across a concourse after installation.
- Tilt from plus 5 to minus 20 degrees, which matters when panels hang well above standing eye level.
- Levelling adjustment of plus or minus 3 degrees squares each screen once the pole is locked off.
- Detachable VESA brackets simplify lifting a large panel into place and taking it down for service.

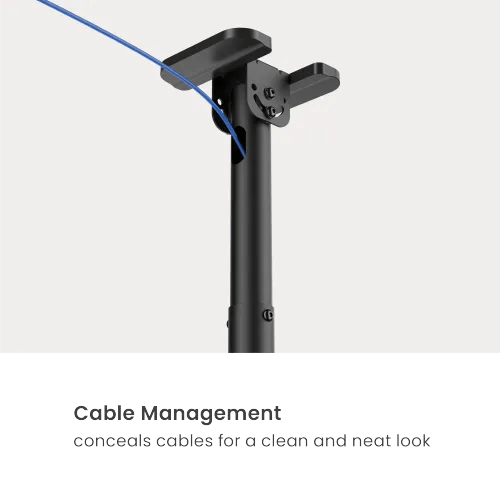

- Cabling routes down inside the pole for a clean finish under a public-facing installation.
- VESA 200 x 200 mm to 600 x 400 mm per screen (maximum hole spacing 610 x 402 mm), in 1.5 mm to 2.5 mm cold-rolled steel with a black powder-coated finish.

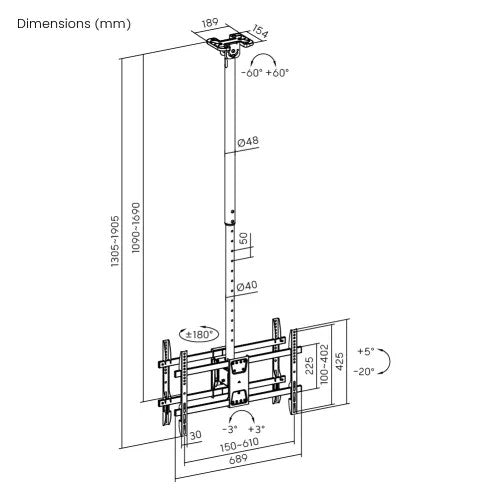

Technical Specifications
| Model | VCM-CE1546BL |
| Mount Type | Back-to-back dual-screen ceiling mount |
| Screen Size Range | 43" – 86" per screen |
| Load Capacity | Up to 50 kg (110 lbs) per screen |
| VESA Compatibility | 200 x 200 mm to 600 x 400 mm per screen (max hole spacing 610 x 402 mm) |
| Rotation | 360 degrees around the pole |
| Tilt | Plus 5 to minus 20 degrees |
| Levelling | Plus 3 to minus 3 degrees |
| Drop Range | Telescoping pole, 1090 mm to 1690 mm |
| Ceiling Plate | Tiltable, for flat or pitched ceilings |
| Cable Management | Cable routing through the pole |
| Material | Cold-rolled steel, 1.5 mm to 2.5 mm gauge |
| Finish | Powder-coated black |
| Certifications | Strength tested to four times rated load |
| Package Contents | Tiltable ceiling plate, telescoping pole, two VESA brackets, mounting hardware kit, installation instructions |
Ideal for: retail aisles and central store displays, airport terminals and metro concourses, exhibition halls and trade stands, hotel and mall atriums, open-plan offices with walkways on both sides, and hospital or campus wayfinding points across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VCM-CE1546BL Back-to-Back Dual-Screen Ceiling Mount for 43"–86" Displays, 50 kg per Screen |
| Height Adjustment Type | Manual telescoping pole |
| Mounting Type | Ceiling mount |
| Screen Size Support | Two displays from 43 inch to 86 inch mounted back to back |
| Product Type | Back-to-back dual screen ceiling TV mount |
| Screen Size Range | 43 inch to 86 inch per screen |
| Load Capacity | Up to 50 kg (110 lbs) per screen |
| VESA Compatibility | 200 x 200 mm to 600 x 400 mm per screen, maximum hole spacing 610 x 402 mm |
| Movement | Tilt, 360 degree rotation and levelling on each screen |
| Tilt | Plus 5 to minus 20 degrees |
| Rotation | 360 degrees around the pole |
| Height Range | 1090 mm to 1690 mm below the ceiling |
| Drop Range | Telescoping pole, 1090 mm to 1690 mm |
| Material and Finish | Cold-rolled steel, 1.5 mm to 2.5 mm gauge |
| Available Finishes | Powder-coated black |
| Mounting Interface | Tiltable ceiling plate for flat or pitched ceilings |
| Cable Management | Cable routing through the pole |
| Testing and Certification | Strength tested to four times rated load |
| In the Box | Tiltable ceiling plate, telescoping pole, two VESA brackets, mounting hardware kit, installation instructions |
| MPN | VCM-CE1546BL |
| Model | VCM-CE1546BL |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VCM-CE1546BL in the UAE?
Procure.ae supplies the VSYS VCM-CE1546BL across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How much weight does each side hold?
Up to 50 kg (110 lbs) per screen, carried independently, on a cold-rolled steel structure strength tested to four times the rated load. Both panels can be 43" to 86" and they do not have to be the same size.
What ceiling heights does the pole cover?
The telescoping pole sets the display between 1090 mm and 1690 mm below the ceiling plate, so it fits standard commercial ceilings as well as taller lobby and atrium spaces.
Can it be fitted to a sloped or pitched ceiling?
Yes. The ceiling plate tilts, so the pole can be brought to vertical on a pitched roof structure without adding a separate adaptor. The fixing point still needs to be structurally sound and checked for the combined load of both screens.
How are the two screens aimed and how is cabling handled?
Each screen rotates a full 360 degrees around the pole, tilts from plus 5 to minus 20 degrees and levels within plus or minus 3 degrees. Cables run down inside the pole, which keeps a ceiling-hung installation clean from every angle. Project quantities are quoted on request.
