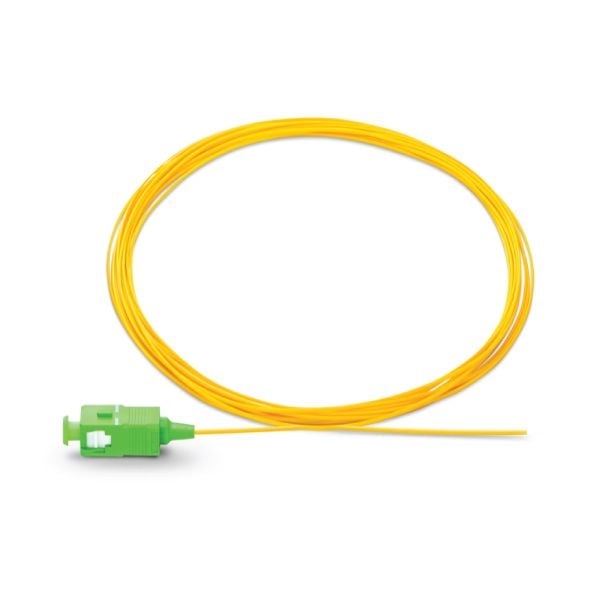

Avalon SC APC 1 Meter Singlemode Pigtail
- SKU: ANPT-SM-SC-APC-1MT
Actual Stock Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW Avalon angle polished (APC) pigtails are made by polishing the fiber either at 8 or 9 degrees angle with a radius of curvature between 5mm and 12mm. This fiber has a typical insertion loss of 0.2 dB per connection and APC polished... See More
PRODUCT OVERVIEW
Avalon angle polished (APC) pigtails are made by polishing the fiber either at 8 or 9 degrees angle with a radius of curvature between 5mm and 12mm. This fiber has a typical insertion loss of 0.2 dB per connection and APC polished end faces at 65dB minimum return loss. It also passes the international standards of all TIA/EIA-568-B.3, ISO/IEC 11801 OSI performances and complies with the UL 1666 flame
rating.
Features
- Pass all ISO/IEC 11801 IS1 performance requirements
- Jacketed cable compliant with UL 1666 flame rating
- 100% factory inspected end face geometry in
Compliance with TELCODIA GR-326-Core - Typical Insertion loss per connection is 0.2dB
- APC Polished end faces 65db minimum return loss
Applications
- Telecommunication Networks
- LAN, WAN, CATV
- FTTX,FTTH
- Fiber Communication Systems Data Processing Networks, Industrial, Mechanical and Military
No datasheet available.
