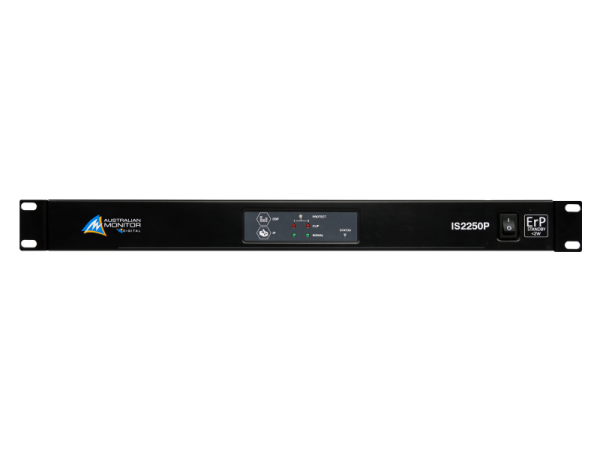

Australian Monitor IS2250P 2 x 250W Power Amplifier

PRODUCT OVERVIEW

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante^® support and efficient Class D amplifiers.

The ISP also features ALMA Control Software which allows you to connect, configure and control the product from any device supporting an HTML5 compliant web browser.

CLASS-D AMPLIFIER

The ISP amplifiers use an efficient Class-D amplifier topology allowing a greater power density with a much lower weight. All amplifier channels offer 100V, 70V and 4Ω output options so you can choose the output configuration to match your application.

NETWORK CONTROL

The ISP amplifiers all feature an Ethernet network port to allow easy configuration of the device and the ability to remotely control and modify the amplifier.

ALMA CONTROL SOFTWARE

Connect, Configure and Control the ISP amplifier from any HTML5 complaint web browser.
The ALMA control software is embedded into the amplifier and requires no software installation.
Featuring a clean, easy to use interface it allows you to setup and monitor the amplifier from PCs, tablets and mobile phones with ease.

INTEGRATED DIGITAL SIGNAL PROCESSING

The ISP amplifiers include a full DSP engine with the following features,
• Input Matrix
• High, Low, All Pass Filters
• Parametric Equalisers
• Compressor / limiters
• Delay
• Mute
• Inversion

Features

• 2 x 250W power amplifier
• 4 ohm, 70V and 100V output options
• Class D topology
• Ethernet Control
• Embedded ALMA Control Software accessible using any HTML5 web browser
• Full DSP - Input Matrix, Filters, Parametric Eq, Compressor / limiter, Delay, Mute, Inversion
• 4 software configurable general purposes input/outputs
• ErP(1275/2008/EC) Low Power Standby (<2W)
• 4 Input, 4 Output Dante^® support using expansion card DM4x4
• Additional 4 Analogue line inputs using expansion card ANALOGUE4
