OVERVIEW

Output

• Output power capacity
  700Watts / 1.0 kVA
• Max Configurable Power (Watts)
  700Watts / 1.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 3%
• Output Frequency (sync to mains)
  50/60 Hz +/- 3 Hz user adjustable +/- 0.1
• Other Output Voltages
  220, 240
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave

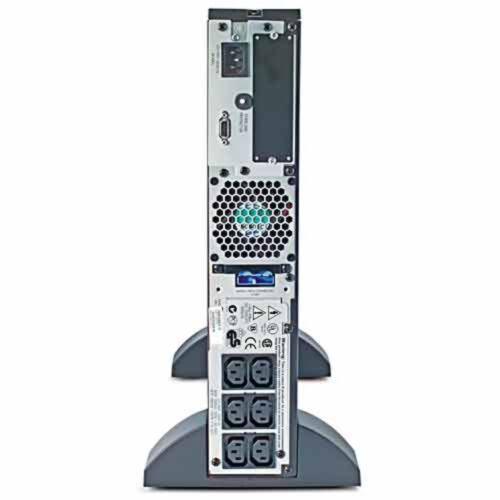

• Output Connections
  (6) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Bypass
  Built-in Bypass

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  160 - 280V
• Input voltage adjustable range for mains operation
  100 - 280V
• Number of Power Cords
  1
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules
  1
• Typical recharge time
  3hour(s)
• Replacement Battery
  RBC31
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1
• Extendable Run Time
  1

Communications & Management

• Interface Port(s)
  DB-9 RS-232 , SmartSlot
• Control panel
  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO)
  Optional
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  420Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  432mm , 43.2cm
• Maximum Width
  85mm , 8.5cm
• Maximum Depth
  483mm , 48.3cm
• Rack Height
  2U
• Net Weight
  23.0kg
• Shipping weight
  27.8kg
• Shipping Height
  286mm , 28.6cm
• Shipping Width
  630mm , 63.0cm
• Shipping Depth
  594mm , 59.4cm
• Color
  Black
• Master Carton Units
  1.0
• Units per Pallet
  6.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% non-condensing %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -20 - 50 °C
• Storage Relative Humidity
  0 - 95% non-condensing %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  50.0dBA
• Online thermal dissipation
  324.0BTU/hr
• Protection Class
  IP 20
