OVERVIEW

Output

• Output power capacity
  1.98 KWatts / 2.2 kVA
• Max Configurable Power (Watts)
  1.98 KWatts / 2.2 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology
  Line Interactive
• Waveform type
  Sine wave

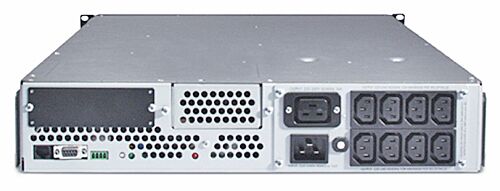

• Output Connections
  (8) IEC 320 C13 (Battery Backup)

  (1) IEC 320 C19 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Transfer Time
  2ms typical

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Input voltage range for main operations
  160 - 286V
• Input voltage adjustable range for mains operation
  151 - 302V
• Number of Power Cords
  1

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  3hour(s)
• Replacement Battery
  RBC43
• Expected Battery Life (years)
  3 - 5
• RBC Quantity

Communications & Management

• Interface Port(s)
  DB-9 RS-232 , SmartSlot , USB
• Control panel
  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  480Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  89mm , 8.9cm
• Maximum Width
  483mm , 48.3cm
• Maximum Depth
  660mm , 66.0cm
• Rack Height
  2U
• Net Weight
  43.64kg
• Shipping weight
  51.5kg
• Shipping Height
  260mm , 26.0cm
• Shipping Width
  600mm , 60.0cm
• Shipping Depth
  980mm , 98.0cm
• Color
  Black
• Master Carton Units
  1.0
• Units per Pallet
  8.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  47.0dBA
• Online thermal dissipation
  300.0BTU/hr
