OVERVIEW

Output

• Output power capacity
  1.0 KWatts / 1.5 kVA
• Max Configurable Power (Watts)
  1.0 KWatts / 1.5 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Other Output Voltages
  220, 240
• Topology
  Line Interactive
• Waveform type
  Sine wave

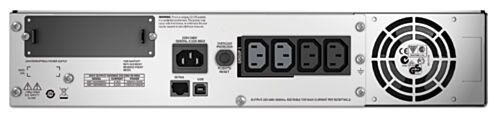

• Output Connections
  (4) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Transfer Time
  2ms typical

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  160 - 286V
• Input voltage adjustable range for mains operation
  151 - 302V
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  3hour(s)
• Replacement Battery
  APCRBC133
• Expected Battery Life (years)
  4 - 6
• RBC Quantity
  1

Communications & Management

• Interface Port(s)
  RJ-45 Serial , SmartSlot , USB

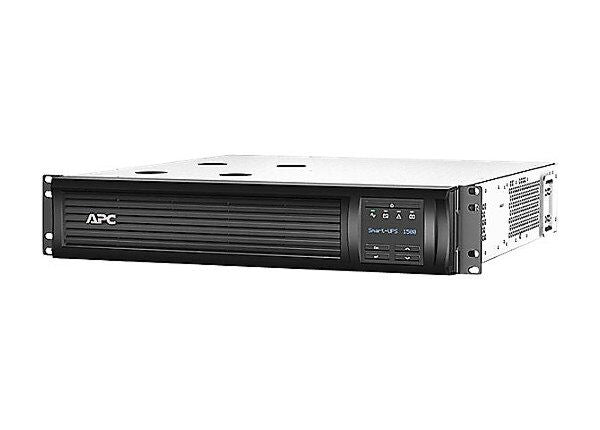

• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
  Optional
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  459Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  86mm , 8.6cm
• Maximum Width
  432mm , 43.2cm
• Maximum Depth
  457mm , 45.7cm
• Rack Height
  2U
• Net Weight
  28.64kg
• Shipping weight
  31.91kg
• Shipping Height
  251mm , 25.1cm
• Shipping Width
  594mm , 59.4cm
• Shipping Depth
  603mm , 60.3cm
• Color
  Black
• Units per Pallet
  8.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  46.0dBA
• Online thermal dissipation
  90.0BTU/hr
