AISPEECHMeeting Room SolutionsSKU MCS06
AISPEECH All-in-One Ceiling Mic-Speaker – MCS06
The AISPEECH MCS06 is an all-in-one ceiling mic-speaker for mid-sized and large meeting rooms. It combines a 32-mic MEMS array and AI noise reduction and echo cancellation with a built-in loudspeaker, and it is powered by PoE++. Procure.ae supplies the AISPEECH MCS06 across the UAE.
The MCS06 pairs a 32-mic MEMS array with AI noise reduction, AI reverb suppression, AI echo cancellation and AI full duplex processing. Its microphone sensitivity is -38 dBV/94 dB SPL at 1 kHz, the dynamic range is 84 dBA and the maximum SPL is 104 dB SPL. The built-in loudspeaker has a 4-inch mid-bass driver and a 1-inch tweeter, with rated power of 30 W / 15 W × 2 and a frequency response of 80 Hz to 20 kHz. Four pickup zones are available.

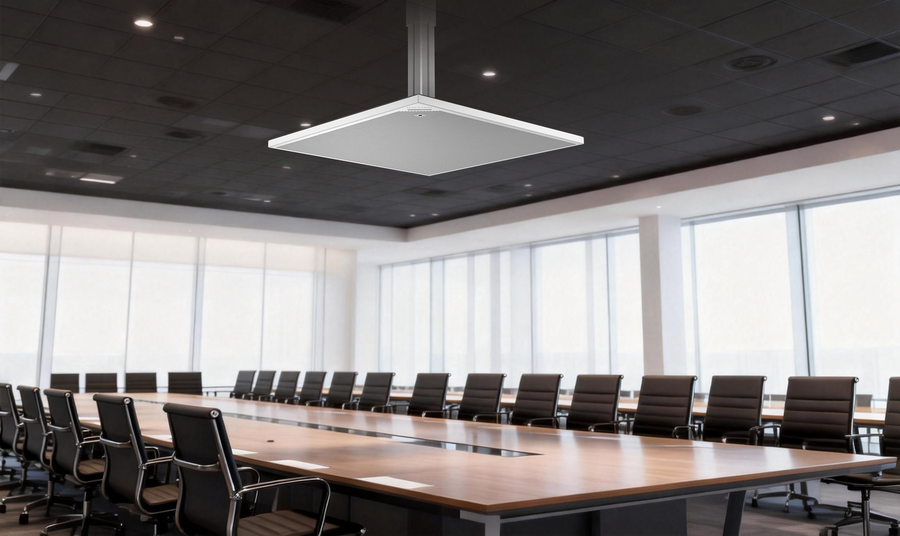

The MCS06 is suspended from the ceiling as a 597 x 597 mm unit. Its Dante/PoE network port supports cascading, and the manufacturer states that the cascade quantity is unlimited over Dante audio or a PoE network cable. The unit carries FCC and CE certifications and operates from 0 to 40 °C. Unlike the MC10 ceiling microphone, the MCS06 includes a built-in loudspeaker in the same unit.
Type
All-in-One Ceiling Mic-Speaker
- 32-mic array
- AI audio processing
- Built-in loudspeaker
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
32-mic array
MEMS microphone array with sensitivity of -38 dBV/94 dB SPL at 1 kHz.
02
AI audio processing
AI noise reduction, reverb suppression, echo cancellation and full duplex.
03
Built-in loudspeaker
4-inch mid-bass driver and 1-inch tweeter, rated 30 W / 15 W × 2.
04
Four pickup zones
Four available pickup zones for conferencing and reinforcement.
05
Dante audio and cascading
Dante audio support with an unlimited cascade quantity.
06
PoE++ power
Powered by PoE++ with power consumption of 30 W.
07
Suspended installation
Ceiling suspension in a 597 x 597 mm unit.
Specifications
22 specificationsGeneral
Key Features32-mic MEMS array, 4 pickup zones, AI noise reduction, AI reverb suppression, AI echo cancellation, AI full duplex, Dante audio, unlimited cascade
ModelMCS06
TypeAll-in-One Ceiling Mic-Speaker
Performance
Storage Conditions-20 to +70 °C
Audio
Dynamic Range84 dBA
Frequency ResponseMicrophone 20 Hz – 20 kHz; loudspeaker 80 Hz – 20 kHz
Max SPL104 dB SPL
Microphone Type32-mic MEMS array
Power Output30 W / 15 W × 2
Sensitivity-38 dBV/94 dB SPL @ 1 kHz
Signal-to-Noise Ratio73.9 dB @ 1 kHz
Speaker ConfigurationMid-bass 4-inch driver, 1-inch tweeter
Connectivity
PoEPoE++
PortsDante/PoE network port × 1, Reset button × 1
ProtocolsDante
Power
Power Consumption30 W
Physical
ColorWhite
Dimensions597 x 597 x 72.5 mm
MountingSuspended
Operating Humidity20% to 95% RH
Operating Temperature0 to 40 °C
Compliance
CertificationsFCC, CE
Downloads
Manufacturer documents for the AISPEECH All-in-One Ceiling Mic-Speaker – MCS06 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the AISPEECH MCS06?
The AISPEECH MCS06 is an all-in-one ceiling mic-speaker that combines a 32-mic MEMS array with a built-in loudspeaker. The manufacturer positions it for mid-sized and large meeting rooms, with AI-enhanced sound for conversations and hybrid collaboration.
Does the MCS06 include a loudspeaker?
Yes. The MCS06 has a mid-bass 4-inch driver and a 1-inch tweeter, with rated power of 30 W / 15 W × 2 and a frequency response of 80 Hz to 20 kHz. Its sound pressure level is 81 dB at 1 W and 1 m.
Is the MCS06 suitable for large rooms?
The manufacturer describes the MCS06 for mid-sized and large meeting rooms. It has four pickup zones, a 32-mic array and AI echo cancellation, and its dynamic range is 84 dBA with a maximum SPL of 104 dB SPL.
Can MCS06 units be cascaded?
Yes. The manufacturer states that the cascade quantity is unlimited, using Dante audio or a PoE network cable cascade. Each unit has one Dante/PoE network port and a reset button.
Can I buy the MCS06 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
