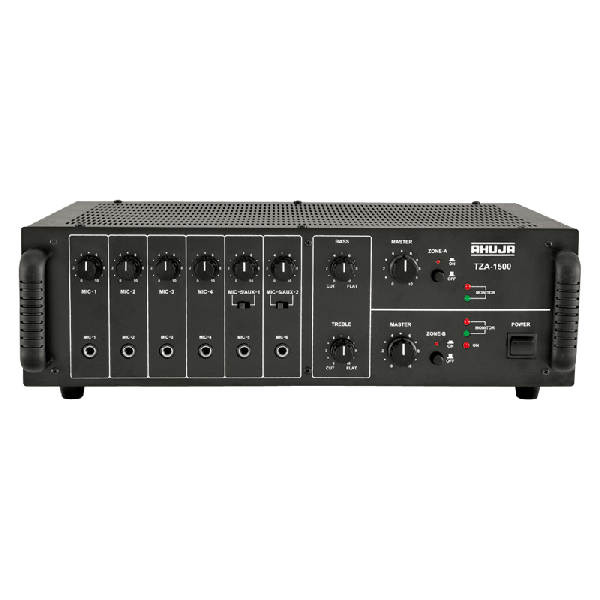

Ahuja TZA1500 6-Microphone 2-Aux Input PA Amplifier
- SKU: TZA1500
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW TZA-1500® WATTS 2 ZONE PA MIXER AMPLIFIER 6 Mic & 2 Aux Inputs. 80W+80W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations... See More
PRODUCT OVERVIEW
TZA-1500® WATTS 2 ZONE PA MIXER AMPLIFIER 6 Mic & 2 Aux Inputs. 80W+80W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
|
Power Output |
100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470 kΩ |
|
Frequency Response |
65-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200mV/600Ω |
|
Speaker Outputs |
4Ω, 8Ω, 70V & 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 300VA DC: 6A |
|
Dimensions |
W460 × H155 × D310 mm |
|
Weight |
14.2kg |
No datasheet available.
