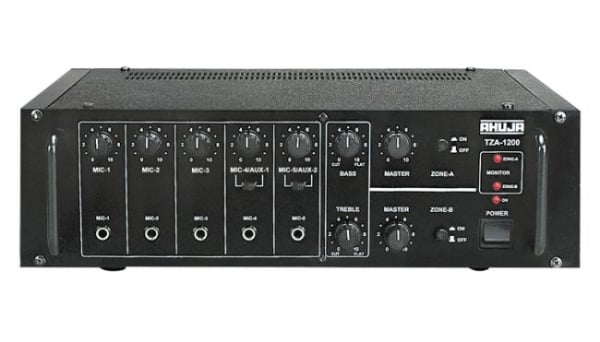

Ahuja TZA1200 2-Microphone 2-Aux Input PA Amplifier
- SKU: TZA1200
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW TZA-1200® 120 WATTS 2 ZONE PA MIXER AMPLIFIER 5 Mic & 2 Aux Inputs. 60W+60W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized... See More
PRODUCT OVERVIEW
TZA-1200® 120 WATTS 2 ZONE PA MIXER AMPLIFIER 5 Mic & 2 Aux Inputs. 60W+60W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
|
Power Output |
90W + 90W Max., 60W + 60W RMS at 10% THD, 55W + 55W RMS at 5% THD, 50W + 50W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
5 × Mic 0.6mV/4.7kΩ, 1 × Aux 100mV/470 kΩ, 1 × Aux 200mV/250kΩ (RCA Jack) |
|
Frequency Response |
70-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200mV/600Ω |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω & 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 250VA DC: 5A |
|
Dimensions |
W400 × H130 × D290 mm |
|
Weight |
10.1kg |
