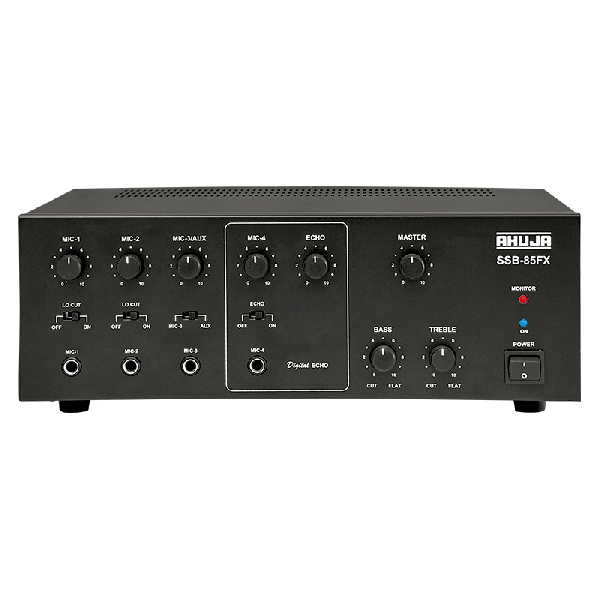

Ahuja SSB85FX 4-Mic & 1-Aux Input Mixer Amplifier
- SKU: SSB85FX
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW 4 Mic & 1 Aux Inputs. Built-in digital echo effect on Mic-4. Mic-3 is altenate to Aux through switch. Mic-1 & Mic-2 having LO-CUT facility. Preamplifier Output for connecting to a Booster Amplifier and for recording the programme. Cut type Bass &... See More
PRODUCT OVERVIEW
4 Mic & 1 Aux Inputs. Built-in digital echo effect on Mic-4. Mic-3 is altenate to Aux through switch. Mic-1 & Mic-2 having LO-CUT facility. Preamplifier Output for connecting to a Booster Amplifier and for recording the programme. Cut type Bass & Treble controls. Instant transfer to DC power (Car Battery) if AC power fails.
|
Power Output |
110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
4×Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ |
|
Frequency Response |
65-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200mV/600Ω |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω, 70V & 100V |
|
Power Supply |
AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 180VA DC: 3A |
|
Dimensions |
W355 × H133 × D285 mm |
|
Weight |
8.5kg |
