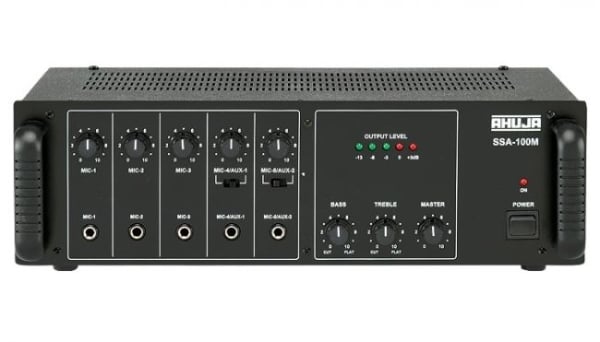

Ahuja SSA100M 5-Microphone 2-Aux Input Amplifier
- SKU: SSA100M
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW Ahuja SSA-100M 100 Watts High Power PA Amplifier. 100 WATTS 5 Mic & 2 Aux Inputs. Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme. Instant transfer to DC power (Car Battery) if AC power fails.... See More
PRODUCT OVERVIEW
Ahuja SSA-100M 100 Watts High Power PA Amplifier. 100 WATTS 5 Mic & 2 Aux Inputs. Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme. Instant transfer to DC power (Car Battery) if AC power fails. Bass & Treble Tone Controls cut type.
Instant transfer to DC power (Car Battery) if AC power fails. Bass & Treble Tone Controls cut type.
Details
Ahuja SSA-100M 100 Watts High Power PA Amplifier.
Outputs : Preamp 200mV/600Q, Line 1V/1kO
Model No : SSA-100M
Tone Controls : Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Type of Product : High Power PA Amplifier
Speaker Outputs : 40,80,70V & 100V
Type : Amliper
Power Consumption :AC: 300VA DC: 4A
Output Regulation :^ 2 dB, no load to full load at 1kHz
Signal to Noise Ratio: 60dB
Input Channels :5 x Mic 0.65mV/4.7k, 1 x Aux 50mV/470k 1 x Aux 150mV/470k
Frequency Response :50-15,000Hz ±3dB
Dimensions :W420 x H155 x D320 mm
Power Output :130W Max, 100W RMS at 10% THD, 90W RMS at 5% THD, 80W RMS at 2% THD
Power Supply :AC: 220-240V 50/60HZ DC: 24V (2x12V Car Batten/)
Watts :100 Watts
