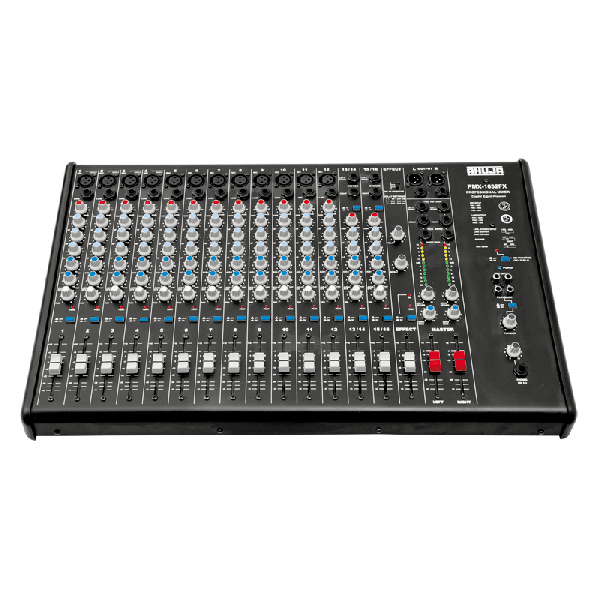

Ahuja PMX1632FX Phantom Power Audio Mixer

PRODUCT OVERVIEW

PMX-1632FX 48V Phantom Supply on 4 Channels AC Operation, With Digital Effects Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels. PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels. MIC/LINE Balanced Mono inputs with enhanced headroom.

MIC/LINE Balanced Mono inputs with enhanced headroom. All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets. Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch. STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.

• Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
• PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
• MIC/LINE Balanced Mono inputs with enhanced headroom.
• All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
• Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
• STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
• Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat and level controls.
• Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader
• AUX2 /EFX control & a PAN control.
• Each Stereo channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
• Channel ON/OFF switch provided on each individual channel. Peak LED for signal clipping indication.
• High precision 60mm slide fader on each channel.
• Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
• Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
• Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
• Two stereo AUX RETURN balanced inputs with level controls.
• Headphone output with Level Control for output monitoring.
• Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
• Stereo Record output through L&R RCA sockets.
• Operates on 240V 50Hz AC mains.
